Cover door sill / wheel arch for BMW 3 Series E92 335i (2010)

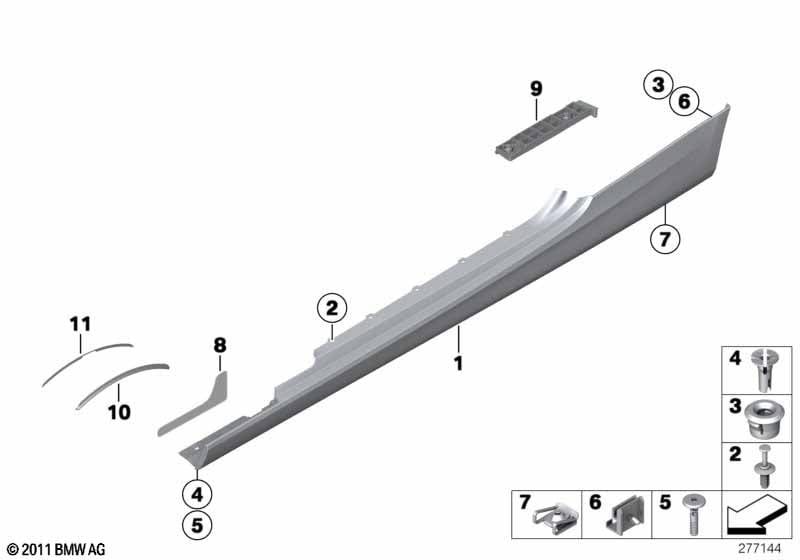

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 03/2010 | 51777173919 | $128.36 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | 1 | 03/2010 | 51777173920 | $128.36 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 03/2010 | 51770034058 | ENDED | Shop at ECS Tuning | |||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 03/2010 | 51770034059 | $402.05 | ENDED | Shop at ECS Tuning | ||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Primed left outer kick panel | -M- | 1 | 51778045421 | $144.98 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | -M- | 1 | 51778045422 | $144.98 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package When ordering indicate color code |
S715A=Yes |
|||||||||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 51770036123 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 51770036124 | ENDED | Shop at ECS Tuning | ||||
| 02 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Grommet, green | D=9,1MM | 10 | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Spacer clip | 18 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 05 | Pin | 18 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Clip | 8 | 51717066220 | $1.11 | Shop at ECS Tuning | |||||
| 07 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 10 | Wheel arch trim, primed, front left | JAPAN | 1 | 51777318573 | Shop at ECS Tuning | |||||
| 10 | Wheel arch trim, primed, front right | JAPAN | 1 | 51777318574 | Shop at ECS Tuning | |||||
| 11 | Set of adhesive pads | JAPAN | 1 | 51777326570 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
