Emblems / letterings for BMW 3 Series E92 LCI 335xi (2013)

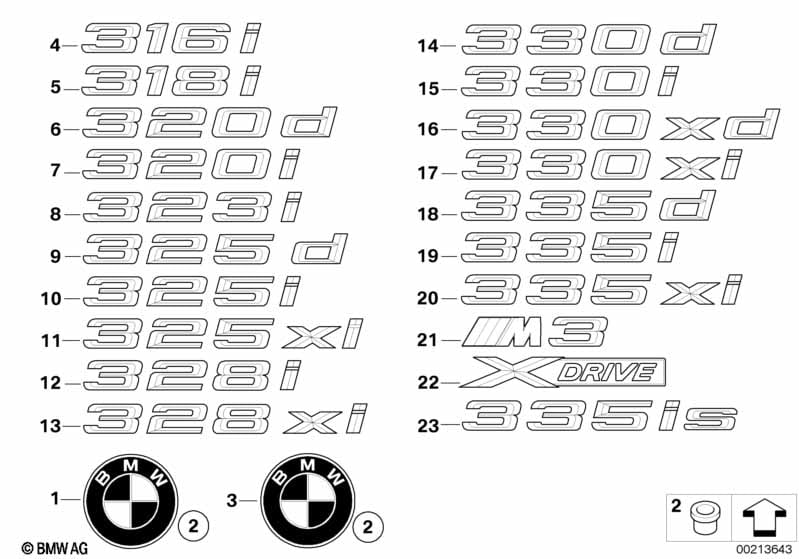

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only applies to hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| FOR HOOD and TRUNK LID |
||||||||||
| 02 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 03 | Badge | 1 | 51147146051 | $30.43 | Shop at ECS Tuning | |||||
| 19 | Emblem adhered rear | -335I- | 1 | 51147166218 | $27.18 | Shop at ECS Tuning | ||||
| 22 | Lettering left | -XDRIVE- | 1 | 09/2008 | 51147362483 | Shop at ECS Tuning | ||||
| 22 | Lettering right | -XDRIVE- | 1 | 09/2008 | 51147362484 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 335xi Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 3 Series E92 LCI 335xi produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Badge (Part #51148132375).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 3 Series E92 LCI 335xi produced during 2013. These technical specifications ensure that parts like the Badge (51148132375) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 335xi, you can identify the Badge by locating its position on the schematic, which then links to the official BMW part number 51148132375 for the Vehicle trim section.
