Glazing for BMW 3 Series E93 325i (2010)

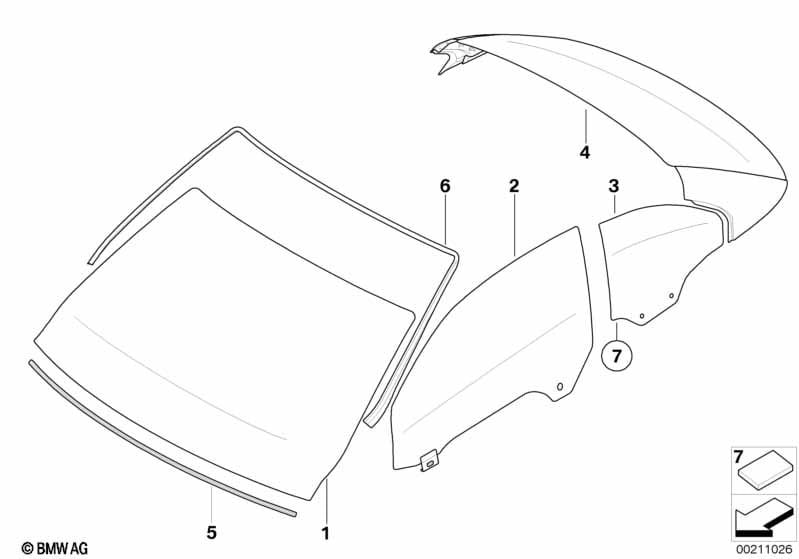

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The 'condensation sensor, bonded' kit should also be ordered on vehicles with S534A automatic climate control, see TIU 64_1438. |
|||||||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=No S358A=Yes S521A=Yes |
|||||||||
| 01 | Windsh.infrar.gray upp.strip,rain sens. | 1 | 51317192985 | $636.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S358A=No S521A=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | 1 | 51317192986 | $450.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S358A=Yes S521A=Yes |
|||||||||
| 01 | Windsh.infrar.gray upp.strip,rain sens. | 1 | 51317192985 | $636.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=No S358A=No S521A=No |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 51317192982 | $410.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=No S358A=No S521A=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | 1 | 51317192986 | $450.49 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S358A=No S521A=No |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 51317192982 | $410.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| -- | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| -- | Sound insulation f apron | L=1331MM | 1 | 51487378272 | Shop at ECS Tuning | |||||
| 02 | Door window green front left | 1 | 51337145921 | $120.87 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 02 | Door window green front right | 1 | 51337145922 | $120.87 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Window glass coating | SET | 1 | 83199415467 | $38.33 | Shop at ECS Tuning | ||||
| 03 | Side window, green, rear, left | 1 | 51377128385 | $229.70 | Shop at ECS Tuning | |||||
| 03 | Side window, green, rear, right | 1 | 51377128386 | $229.70 | Shop at ECS Tuning | |||||
| 04 | Heated rear window | 1 | 54347128754 | $816.52 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Rubber buffer | 4 | 54347166771 | $0.44 | Shop at ECS Tuning | |||||
| 05 | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| 06 | Cover, windshield | 1 | 51317150646 | $34.28 | Shop at ECS Tuning | |||||
| 07 | Insert, foam rubber | 2 | 51377271820 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
