Door trim panel for BMW 3 Series E92 LCI 325xi (2013)

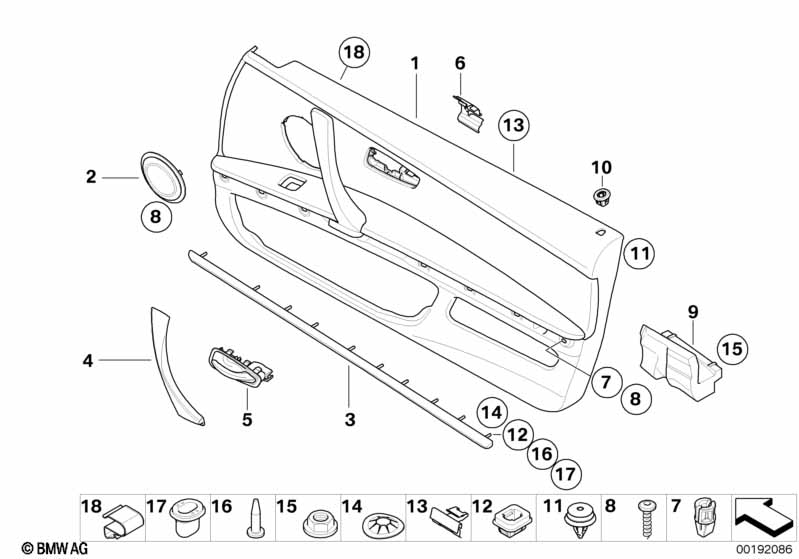

This Door trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric "Diagonal/gray" |
AWAD=Yes |
|||||||||
| 01 | Door trim panel left | GRAU | 1 | 51417251721 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | GRAU | 1 | 51417251722 | Shop at ECS Tuning | |||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 01 | Door lining leather left | CREAMBEIGE | 1 | 51419135363 | $1144.60 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | CREAMBEIGE | 1 | 51419135364 | $1144.60 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 01 | Door trim panel left | KORALLROT | 1 | 51417219001 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | KORALLROT | 1 | 51417219002 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51419152637 | $425.35 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51419152638 | $662.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51419135359 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51419135360 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Door trim panel left | SATTELBRAUN | 1 | 51417219005 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | SATTELBRAUN | 1 | 51417219006 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 01 | Door lining leather left | JADEGRAU | 1 | 51419135337 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | JADEGRAU | 1 | 51419135338 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Door trim panel left | CREAMBEIGE | 1 | 51417218997 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | CREAMBEIGE | 1 | 51417218998 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Door trim panel left | OYSTER | 1 | 51417251743 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | OYSTER | 1 | 51417251744 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Door trim panel left | GRAU | 1 | 51419152617 | $662.92 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | GRAU | 1 | 51419152618 | $662.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 01 | Door lining leather left | CAMEL | 1 | 51419135367 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | CAMEL | 1 | 51419135368 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/"cream-beige/black" |
LRCC=Yes |
|||||||||
| 01 | Door trim panel left | BEIGE/SCHWARZ | 1 | 51417251761 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | BEIGE/SCHWARZ | 1 | 51417251762 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 01 | Door trim panel left | CREAMBEIGE | 1 | 51419152629 | $762.37 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel right | CREAMBEIGE | 1 | 51419152630 | $762.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51417251719 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51417251720 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Door lining leather left | GRAU/SCHWARZ | 1 | 09/2011 | 51417317523 | NoS | Shop at ECS Tuning | |||
| 01 | Door lining leather right | GRAU/SCHWARZ | 1 | 09/2011 | 51417317524 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/perl-grau/contrast blue |
LCNH=Yes |
|||||||||
| 01 | Door trim panel left | PERLGRAU | 1 | 51417300913 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | PERLGRAU | 1 | 51417300914 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/black |
KASW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51419152625 | $762.37 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel right | SCHWARZ | 1 | 51419152626 | $762.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Sensatec/black |
S563A=Yes KASW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51419152701 | $762.37 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51419152702 | $762.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Fabric/leather 'Pearlpoint/anthracite' |
S563A=Yes FHAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51419152713 | $640.37 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51419152714 | $640.37 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth/leather "Speed"/anthracite |
ALAT=Yes GEAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51419152613 | $662.92 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51419152614 | $662.92 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather Walknappa/cream-beige |
S563A=Yes LRGE=Yes |
|||||||||
| 01 | Door lining leather left | CREAMBEIGE | 1 | 51419135483 | +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | CREAMBEIGE | 1 | 51419135484 | +core | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Dakota"/creambeige |
S563A=Yes LCGE=Yes |
|||||||||
| 01 | Door trim panel left | CREAMBEIGE | 1 | 51417219045 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | CREAMBEIGE | 1 | 51417219046 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather, felted nappa/camel |
S563A=Yes LRD4=Yes |
|||||||||
| 01 | Door lining leather left | CAMEL | 1 | 51419135487 | +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | CAMEL | 1 | 51419135488 | +core | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather Walknappa/black |
S563A=Yes LRSW=Yes |
|||||||||
| 01 | Door lining leather left | SCHWARZ | 1 | 51419135475 | Shop at ECS Tuning | |||||
| 01 | Door lining leather right | SCHWARZ | 1 | 51419135476 | $1144.60 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather "Dakota"/jade gray |
S563A=Yes LCD2=Yes |
|||||||||
| 01 | Door lining leather left | JADEGRAU | 1 | 51419135461 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | JADEGRAU | 1 | 51419135462 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Leather "Dakota"/korall-red |
S563A=Yes LCD1=Yes |
|||||||||
| 01 | Door trim panel left | KORALLROT | 1 | 51417219049 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | KORALLROT | 1 | 51417219050 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Sensatec/cream-beige |
S563A=Yes KAGE=Yes |
|||||||||
| 01 | Door trim panel left | CREAMBEIGE | 1 | 51419152705 | $762.37 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | CREAMBEIGE | 1 | 51419152706 | $762.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51419165557 | $640.37 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51419165558 | $640.37 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Dakota" saddle brown |
S563A=Yes LCD3=Yes |
|||||||||
| 01 | Door trim panel left | SATTELBRAUN | 1 | 51417219053 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | SATTELBRAUN | 1 | 51417219054 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Dakota"/grau |
S563A=Yes LCAD=Yes |
|||||||||
| 01 | Door lining leather left | GRAU/SCHWARZ | 1 | 09/2011 | 51417317527 | Shop at ECS Tuning | ||||
| 01 | Door lining leather right | GRAU/SCHWARZ | 1 | 09/2011 | 51417317528 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Dakota/oyster" |
S563A=Yes LCCX=Yes |
|||||||||
| 01 | Door trim panel left | OYSTER | 1 | 51417251747 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | OYSTER | 1 | 51417251748 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Fabric "Diagonal/anthracite" |
S563A=Yes AWAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51417251727 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51417251728 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Fabric "Diagonal/gray" |
S563A=Yes AWAD=Yes |
|||||||||
| 01 | Door trim panel left | GRAU | 1 | 51417251729 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | GRAU | 1 | 51417251730 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Leather Dakota/perl-grau/contrast blue |
S563A=Yes LCNH=Yes |
|||||||||
| 01 | Door trim panel left | PERLGRAU | 1 | 51417300917 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | PERLGRAU | 1 | 51417300918 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Leather Walknappa/"cream-beige/black" |
S563A=Yes LRCC=Yes |
|||||||||
| 01 | Door trim panel left | BEIGE/SCHWARZ | 1 | 51417251769 | Shop at ECS Tuning | |||||
| 01 | Door trim panel right | BEIGE/SCHWARZ | 1 | 51417251770 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Cloth "Fluid" or "Linea"/grey |
S563A=Yes ALAD=Yes |
|||||||||
| 01 | Door trim panel left | GRAU | 1 | 51419152693 | $662.92 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel right | GRAU | 1 | 51419152694 | $662.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51417218989 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51417218990 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
S563A=Yes ANAT=Yes ANNK=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51419165565 | $525.83 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51419165566 | $591.56 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Cloth "Fluid" or "Linea"/anthracite or Cloth/leather "Speed"/anthracite |
S563A=Yes ALAT=Yes GEAT=Yes |
|||||||||
| 01 | Door trim panel left | ANTHRAZIT | 1 | 51419152689 | $640.37 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | ANTHRAZIT | 1 | 51419152690 | $662.92 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
S563A=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | Door trim panel left | SCHWARZ | 1 | 51417219037 | $952.38 | Shop at ECS Tuning | ||||
| 01 | Door trim panel right | SCHWARZ | 1 | 51417219038 | $952.38 | Shop at ECS Tuning | ||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 02 | Cover f left loudspeaker | 1 | 51418045697 | $46.05 | +core | Shop at ECS Tuning | ||||
| 02 | Cover f right loudspeaker | 1 | 51418045698 | $46.05 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 02 | Cover f left loudspeaker | CREAMBEIGE | 1 | 51416975507 | $17.48 | +core | Shop at ECS Tuning | |||
| 02 | Cover f right loudspeaker | CREAMBEIGE | 1 | 51416975508 | $17.48 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes LCAD=Yes |
|||||||||
| 02 | Cover f left loudspeaker | GRAU | 1 | 51416975505 | $17.48 | +core | Shop at ECS Tuning | |||
| 02 | Cover f right loudspeaker | GRAU | 1 | 51416975506 | $17.48 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Alcantara leather "Challenge"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes FHAT=Yes GEAT=Yes GFAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 02 | Cover f left loudspeaker | SCHWARZ | 1 | 51416975503 | $17.48 | Shop at ECS Tuning | ||||
| 02 | Cover f right loudspeaker | SCHWARZ | 1 | 51416975504 | $17.48 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 03 | Luminous strip, door, front left | CREAMBEIGE | 1 | 51419139645 | $30.63 | Shop at ECS Tuning | ||||
| 03 | Luminous strip, door, front right | CREAMBEIGE | 1 | 51419139646 | $30.63 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes LCAD=Yes |
|||||||||
| 03 | Luminous strip, door, front left | GRAU | 1 | 51419139643 | $30.63 | Shop at ECS Tuning | ||||
| 03 | Luminous strip, door, front right | GRAU | 1 | 51419139644 | $30.63 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Alcantara leather "Challenge"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes FHAT=Yes GEAT=Yes GFAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 03 | Luminous strip, door, front left | SCHWARZ | 1 | 51419139641 | $30.63 | Shop at ECS Tuning | ||||
| 03 | Luminous strip, door, front right | SCHWARZ | 1 | 51419139642 | $30.63 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/cream-beige |
LRGE=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | CREAMBEIGE | 1 | 51416964388 | $80.69 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | KORALLROT | 1 | 51416963944 | $70.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/black |
LRSW=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | SCHWARZ | 1 | 51416964390 | $80.69 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | SATTELBRAUN | 1 | 51416964378 | $70.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/jade gray |
LCD2=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | JADEGRAU | 1 | 51416963946 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | CREAMBEIGE | 1 | 51416964380 | $70.49 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | GRAU | 1 | 51416971292 | $9.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey only fits door trim panel with Door closing handle with two reinforcement braces |
ALAD=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | GRAU | 1 | 02/2007 | 51419150338 | $9.54 | Shop at ECS Tuning | |||
| For vehicles with Leather, felted nappa/camel |
LRD4=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | CAMEL | 1 | 51416964386 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige |
KAGE=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | CREMEBEIGE | 1 | 51416975532 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige only fits door trim panel with Door closing handle with two reinforcement braces |
KAGE=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | CREAMBEIGE | 1 | 02/2007 | 51419150342 | $9.54 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | GRAU | 1 | 51416963942 | $70.49 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/perl-grau/contrast blue |
LCNH=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | PERLGRAU | 1 | 51417302844 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Cover, interior handle, leather right | SCHWARZ | 1 | 51416964382 | $70.49 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Sensatec/black |
ALAT=Yes FHAT=Yes GEAT=Yes KASW=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | SCHWARZ | 1 | 51416971290 | $9.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz only fits door trim panel with Door closing handle with two reinforcement braces |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Clasp, inside door handle, right | SCHWARZ | 1 | 02/2007 | 51419150336 | $9.54 | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 05 | Door handle, inside left | CREAMBEIGE | 1 | 51216975499 | $29.40 | Shop at ECS Tuning | ||||
| 05 | Door handle inner right | CREAMBEIGE | 1 | 51216975500 | $29.40 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes LCAD=Yes |
|||||||||
| 05 | Door handle, inside left | GRAU | 1 | 51216975497 | $29.40 | +core | Shop at ECS Tuning | |||
| 05 | Door handle inner right | GRAU | 1 | 51216975498 | $29.40 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Alcantara leather "Challenge"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes FHAT=Yes GEAT=Yes GFAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 05 | Door handle, inside left | SCHWARZ | 1 | 51216975495 | $29.40 | Shop at ECS Tuning | ||||
| 05 | Door handle inner right | SCHWARZ | 1 | 51216975496 | $29.40 | Shop at ECS Tuning | ||||
| 06 | Reinforcement plate, left | 1 | 51419132341 | $6.17 | Shop at ECS Tuning | |||||
| 06 | Reinforcement plate, right | 1 | 51419132342 | $6.17 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | 8X10X2 BLAU | 2 | 07149147389 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 10X 9,7X 2,1 | 2 | 51417028573 | $0.79 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 8X11,7X2 | 7 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw with collar | ISA 35X5 | 9 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | L=18MM | 4 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw with collar | M4X14 | 8 | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | L=12MM | 6 | 51419127006 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | 6 | 61317043728 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Crash pad, left | 1 | 51717177285 | $13.57 | Shop at ECS Tuning | |||||
| 09 | Crash pad, right | 1 | 51717177286 | $13.57 | Shop at ECS Tuning | |||||
| 10 | Cover, locking button | 2 | 51427117827 | $0.21 | Shop at ECS Tuning | |||||
| 11 | Clip, red | 4 | 07146962771 | $0.28 | Shop at ECS Tuning | |||||
| 11 | Clip with washer, natur | WEIß | 2 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 11 | Clip with seal ring | GRAU | 2 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 12 | Plug-in retainer | 16 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 13 | Clamp | 12 | 51418225552 | $0.74 | Shop at ECS Tuning | |||||
| 14 | Axial securing clip | 5,75MM | 20 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Circlip | D=4MM | 20 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Plug-in retainer | 16 | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 18 | Fixing clamp | 2 | 11787547213 | $0.40 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 325xi Door trim panel?
- This technical diagram illustrates the Door trim panel within the Vehicle trim group for the 3 Series E92 LCI 325xi produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel left (Part #51417251721).
- Which models use the hardware listed in this Door trim panel?
- The hardware and components featured in the Door trim panel are specific to the 3 Series E92 LCI 325xi produced during 2013. These technical specifications ensure that parts like the Door trim panel left (51417251721) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel assembly?
- Each item in the Door trim panel corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 325xi, you can identify the Door trim panel left by locating its position on the schematic, which then links to the official BMW part number 51417251721 for the Vehicle trim section.
