Lateral trim panel rear for BMW 3 Series E92 LCI M3 (2013)

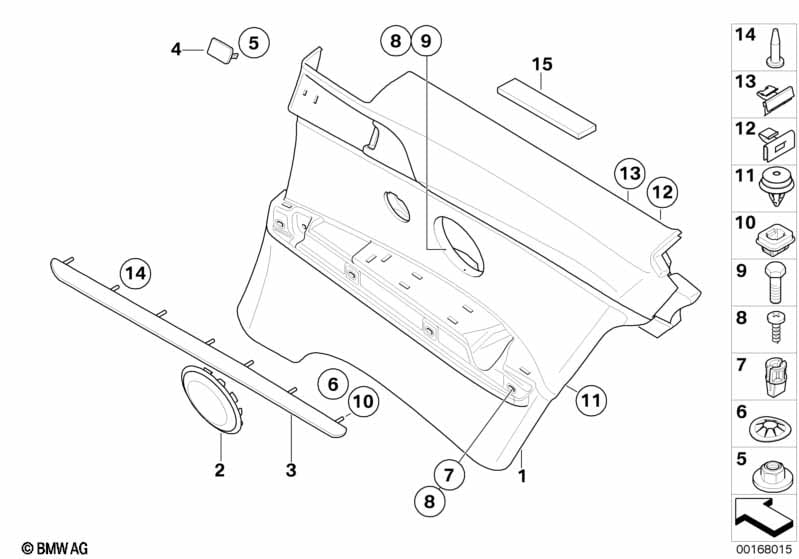

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fabric "Diagonal/gray" |
AWAD=Yes |
|||||||||
| 01 | Lateral trim panel, left | GRAU | 1 | 51437251261 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel, right | GRAU | 1 | 51437251262 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SATTELBRAUN | 1 | 51437218815 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel rear right | SATTELBRAUN | 1 | 51437218816 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth/leather "Speed"/anthracite |
GEAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51437900959 | $399.37 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51437900960 | $399.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/creambeige |
LCGE=Yes |
|||||||||
| 01 | Lateral trim panel rear left | CREAMBEIGE | 1 | 51437218811 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | CREAMBEIGE | 1 | 51437218812 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Leather Walknappa/"cream-beige/black" |
LRCC=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BEIGE/SCHWARZ | 1 | 51437251291 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel leather rear right | BEIGE/SCHWARZ | 1 | 51437251292 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Side trim cover, leather, left | GRAU/SCHWARZ | 1 | 09/2011 | 51437317543 | NoS | Shop at ECS Tuning | |||
| 01 | Side trim cover, leather, right | GRAU/SCHWARZ | 1 | 09/2011 | 51437317544 | NoS | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/korall-red |
LCD1=Yes |
|||||||||
| 01 | Lateral trim panel rear left | KORALLROT | 1 | 51437218813 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | KORALLROT | 1 | 51437218814 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Diagonal/anthracite" |
AWAT=Yes |
|||||||||
| 01 | Lateral trim panel, left | ANTHRAZIT | 1 | 51437251259 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel, right | ANTHRAZIT | 1 | 51437251260 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Cloth/leather "Speed"/anthracite |
S563A=Yes GEAT=Yes |
|||||||||
| 01 | Trim panel cloth rear left | ANTHRAZIT | 1 | 51438044015 | $387.79 | +core | Shop at ECS Tuning | |||
| 01 | Trim panel cloth rear right | ANTHRAZIT | 1 | 51438044016 | $387.79 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Fabric "Diagonal/anthracite" |
S563A=Yes AWAT=Yes |
|||||||||
| 01 | Lateral trim panel, left | ANTHRAZIT | 1 | 51437251263 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel, right | ANTHRAZIT | 1 | 51437251264 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Novillo"/black or Leather "Novillo"extended/black |
NCSW=Yes NDSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439152823 | $647.87 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439152824 | $647.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather Walknappa/"cream-beige/black" |
S563A=Yes LRCC=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BEIGE/SCHWARZ | 1 | 51437251293 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel leather rear right | BEIGE/SCHWARZ | 1 | 51437251294 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Leather "Dakota"/creambeige |
S563A=Yes LCGE=Yes |
|||||||||
| 01 | Lateral trim panel rear left | CREAMBEIGE | 1 | 51437218823 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | CREAMBEIGE | 1 | 51437218824 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Novillo"/bambus-beige or Leather "Novillo" extended/bambus-beige |
NCH3=Yes NDH3=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BAMBUSBEIGE | 1 | 51439152829 | $647.87 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | BAMBUSBEIGE | 1 | 51439152830 | $647.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather "Dakota"/korall-red |
S563A=Yes LCD1=Yes |
|||||||||
| 01 | Lateral trim panel rear left | KORALLROT | 1 | 51437218825 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | KORALLROT | 1 | 51437218826 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Fabric "Diagonal/gray" |
S563A=Yes AWAD=Yes |
|||||||||
| 01 | Lateral trim panel, left | GRAU | 1 | 51437251265 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel, right | GRAU | 1 | 51437251266 | Shop at ECS Tuning | |||||
| For vehicles with Light package and Leather "Dakota"/grau |
S563A=Yes LCAD=Yes |
|||||||||
| 01 | Side trim cover, leather, left | GRAU/SCHWARZ | 1 | 09/2011 | 51437317545 | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | GRAU/SCHWARZ | 1 | 09/2011 | 51437317546 | NoS | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather "Dakota" saddle brown |
S563A=Yes LCD3=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SATTELBRAUN | 1 | 51437218827 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | SATTELBRAUN | 1 | 51437218828 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51437218807 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51437218808 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Novillo"/bambus-beige or Leather "Novillo" extended/bambus-beige |
S563A=Yes NCH3=Yes NDH3=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | BAMBUSBEIGE | 1 | 51439152843 | $647.87 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | BAMBUSBEIGE | 1 | 51439152844 | $647.87 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Novillo"/black or Leather "Novillo"extended/black |
S563A=Yes NCSW=Yes NDSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439152837 | $647.87 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | SCHWARZ | 1 | 51439152838 | $647.87 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Novillo"/fuchs-red or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/fuchs-red or Leather Novillo/fuchs-rot/black |
NCH2=Yes NCH5=Yes NDH2=Yes NDH5=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | FUCHSROT | 1 | 51439152827 | $647.87 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | FUCHSROT | 1 | 51439152828 | $647.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz |
S563A=Yes LCNL=Yes LCNM=Yes LCSW=Yes |
|||||||||
| 01 | Lateral trim panel rear left | SCHWARZ | 1 | 51437218819 | $502.84 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel rear right | SCHWARZ | 1 | 51437218820 | $502.84 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Novillo"/palladium-silber or Leather Novillo/palladium-silber/black or Leather "Novillo"extended/palladium-silb or Leather Novillo/palladium-silber/black |
NCH1=Yes NCH4=Yes NDH1=Yes NDH4=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | PALLADIUMSILBER | 1 | 51439152825 | $647.87 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel leather rear right | PALLADIUMSILBER | 1 | 51439152826 | $647.87 | Shop at ECS Tuning | ||||
| For vehicles with Light package and Leather "Novillo"/fuchs-red or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/fuchs-red or Leather Novillo/fuchs-rot/black |
S563A=Yes NCH2=Yes NCH5=Yes NDH2=Yes NDH5=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | FUCHSROT | 1 | 51439152841 | $647.87 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | FUCHSROT | 1 | 51439152842 | $647.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Leather "Novillo"/palladium-silber or Leather Novillo/palladium-silber/black or Leather "Novillo"extended/palladium-silb or Leather Novillo/palladium-silber/black |
S563A=Yes NCH1=Yes NCH4=Yes NDH1=Yes NDH4=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | PALLADIUMSILBER | 1 | 51439152839 | $647.87 | +core | Shop at ECS Tuning | |||
| 01 | Lateral trim panel leather rear right | PALLADIUMSILBER | 1 | 51439152840 | $647.87 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package or HiFi speaker system or HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Novillo"/black or Leather "Novillo"extended/black |
S563A=Yes S676A=Yes S677A=Yes S688A=Yes S752A=Yes NCSW=Yes NDSW=Yes |
|||||||||
| 01 | Lateral trim panel leather rear left | SCHWARZ | 1 | 51439152837 | $647.87 | Shop at ECS Tuning | ||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 02 | Cover f left loudspeaker | 1 | 51438045699 | $46.05 | +core | Shop at ECS Tuning | ||||
| 02 | Cover f right loudspeaker | 1 | 51438045700 | $46.05 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Alcantara leather "Challenge"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes FHAT=Yes GEAT=Yes GFAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 02 | Cover f left loudspeaker | SCHWARZ | 1 | 51436975511 | $17.48 | Shop at ECS Tuning | ||||
| 02 | Cover f right loudspeaker | SCHWARZ | 1 | 51436975512 | $17.48 | +core | Shop at ECS Tuning | |||
| For vehicles with Light package and Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Speed"/anthracite or Alcantara leather "Challenge"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather "Novillo"/bambus-beige or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather "Novillo" extended/bambus-beige or Leather "Novillo"extended/black |
S563A=Yes ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes FHAT=Yes GEAT=Yes GFAT=Yes KASW=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCSW=Yes LRCC=Yes LRD4=Yes LRSW=Yes NCH1=Yes NCH2=Yes NCH3=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH3=Yes NDSW=Yes |
|||||||||
| 03 | Luminous strip, rear left | SCHWARZ | 1 | 51439139837 | $26.02 | Shop at ECS Tuning | ||||
| 03 | Luminous strip, rear right | SCHWARZ | 1 | 51439139838 | $26.02 | Shop at ECS Tuning | ||||
| 04 | Trim cover, seat belt extender, left | PERLGLANZ CHROM | 1 | 51438037743 | $6.09 | Shop at ECS Tuning | ||||
| 04 | Trim cover, seat belt extender, right | PERLGLANZ CHROM | 1 | 51438037744 | $6.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M5 | 2 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Combination nut | M5 SCHWARZ | 6 | 07149130265 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Axial securing clip | 5,75MM | 14 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 06 | Circlip | D=4MM | 14 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 8X11,7X2 | 2 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 7,8X 7,8X 0,6 | 2 | 51427064735 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw with collar | ISA 35X5 | 4 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | L=12MM | 6 | 51419127006 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | L=12MM | 6 | 51419127006 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 2 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 11 | Clip with washer, natur | WEIß | 2 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 11 | Clip with seal ring | GRAU | 2 | 51418224781 | $0.69 | Shop at ECS Tuning | ||||
| 12 | Clamp | 8 | 51418225552 | $0.74 | Shop at ECS Tuning | |||||
| 13 | Clamp | 0,8MM | 8 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 14 | Threaded bolt | 6 | 51417122657 | $1.11 | Shop at ECS Tuning | |||||
| 14 | Threaded bolt | M5X19 | 2 | 51439127763 | $0.82 | Shop at ECS Tuning | ||||
| 15 | Absorbing piece | 100X25X15MM | 2 | 16136755903 | $0.85 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
