Underfloor coating for BMW 3 Series E90 LCI 325i (2009)
This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Underfloor coating, center rear | 1 | 06/2005 | 51757163563 | $40.51 | Shop at ECS Tuning | ||||
| 03 | Underbody paneling, left | 1 | 51757059391 | $67.16 | Shop at ECS Tuning | |||||
| 03 | Underside paneling, right | 1 | 51757059392 | $67.16 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 7 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 05 | Extension, underbody paneling, left | 1 | 51717116911 | $8.95 | Shop at ECS Tuning | |||||

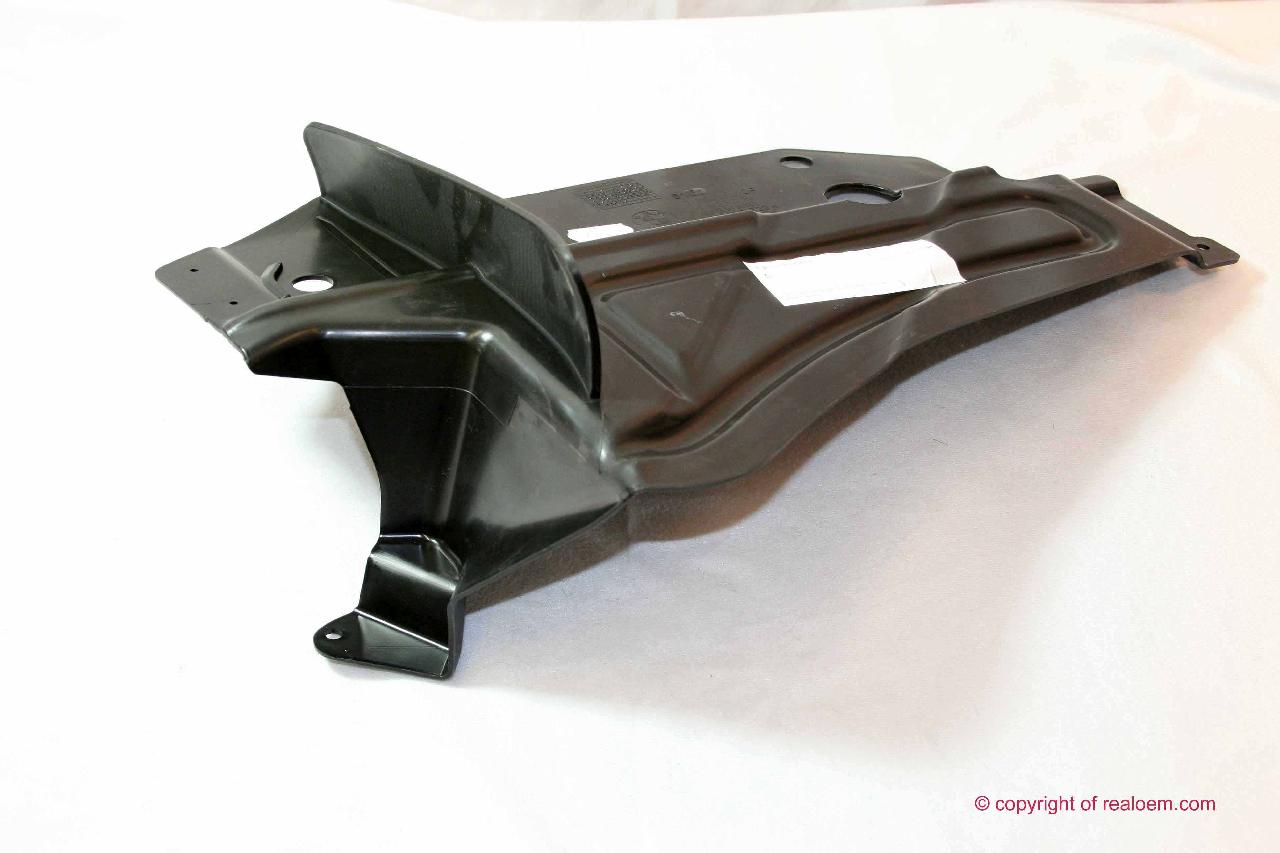

| 05 | Extension underbody paneling, right | 1 | 51717116912 | $8.95 | Shop at ECS Tuning | |||||
| 07 | Plastic capnut with washer | D=18MM | 4 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 07 | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 07 | Plastic nut | 4 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 08 | Deflector lip, underbody shield | 2 | 51757139114 | $5.56 | Shop at ECS Tuning | |||||
| 11 | Bracket underfloor panelling lateral | 2 | 51757125058 | $3.33 | Shop at ECS Tuning | |||||
| 12 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 12 | C-clip nut, self-locking | TS5 | 4 | 07147330002 | Shop at ECS Tuning | |||||
| 13 | Sheetmetal nut with cap | ST4.8 | 1 | 07146952931 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Body nut | D=30MM, ZNS3 | 2 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | L=15MM, DMAX=12 | 14 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | ST4,8MM | 14 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | L=15MM, DMAX=12 | 14 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hex head screw with washer | ST4,8X16MM | 32 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M8X12-8.8-ZNS3 | 2 | 07119906018 | $0.64 | Shop at ECS Tuning | ||||
| 19 | Spacer clip | 2 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 20 | Pin | 2 | 07147122913 | $0.23 | Shop at ECS Tuning |
