Trim cover, front for BMW MINI Clubman R55 LCI Cooper S

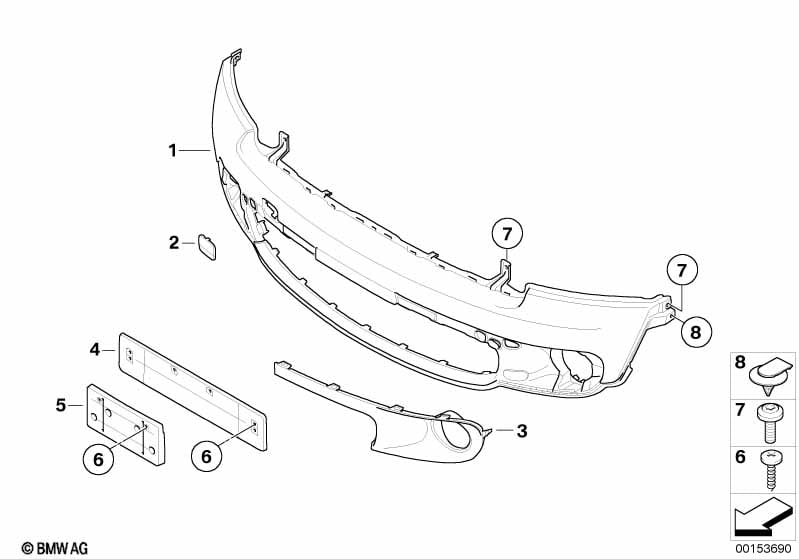

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 08/2010 | 51112754003 | $264.48 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 08/2010 | 51112411406 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Painted front bumper trim | 1 | 08/2010 | 51110430242 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 08/2010 | 51112411406 | Shop at ECS Tuning | ||||
| 02 | Cover, towing eye, primed | 1 | 08/2010 | 51112754004 | $7.60 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Cover, towing eye, painted | CODE - UNI/MET. | 1 | 08/2010 | 51110430243 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover, primed, left | 1 | 08/2010 | 51112754005 | $57.12 | Shop at ECS Tuning | ||||
| 03 | Cover, primed, right | 1 | 08/2010 | 51112754006 | $57.12 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 03 | trim panel right, painted | CODE - UNI/MET. | 1 | 08/2010 | 51110430244 | ENDED | Shop at ECS Tuning | |||
| 03 | trim panel left, painted | CODE - UNI/MET. | 1 | 08/2010 | 51110430245 | ENDED | Shop at ECS Tuning | |||
| 04 | Template | 1 | 08/2010 | 51137209693 | Shop at ECS Tuning | |||||
| 04 | License plate holder | 1 | 12/2007 | 51132753979 | $17.58 | ENDED | Shop at ECS Tuning | |||
| Part not technically required - deleted without replacement |
||||||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | License plate holder | CHINA | 1 | 08/2010 | 51132756949 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | License plate holder | 1 | 08/2010 | 51132756510 | $17.58 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X16MM | 4 | 08/2010 | 07142756133 | $0.29 | Shop at ECS Tuning | |||
| 07 | PT screw | M5X16 | 10 | 08/2010 | 51642752568 | $0.86 | Shop at ECS Tuning | |||
| 08 | Clip | 2 | 08/2010 | 07132757821 | $0.75 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
