Trim, decor elements, front for BMW MINI Clubman R55 LCI Cooper S

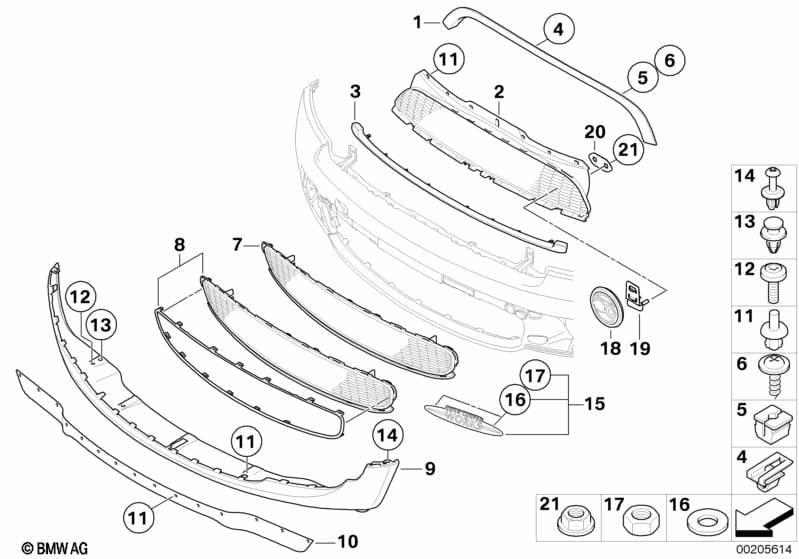

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molding, hood | CHROM | 1 | 08/2010 | 51132751040 | $47.66 | Shop at ECS Tuning | |||
| 03 | Trim for grill, front | CHROM | 1 | 08/2010 | 51117209904 | $24.87 | Shop at ECS Tuning | |||
| 04 | Clip | 6 | 08/2010 | 51132754667 | $0.33 | Shop at ECS Tuning | ||||
| 05 | Nut | 4 | 08/2010 | 51132754668 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,2X12MM | 4 | 08/2010 | 07149128048 | $0.36 | Shop at ECS Tuning | |||
| 07 | Grill, lower | 1 | 08/2010 | 51112751286 | $62.55 | +core | Shop at ECS Tuning | |||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 08 | Grill, lower | 1 | 08/2010 | 51112755465 | $62.55 | Shop at ECS Tuning | ||||
| 09 | Spoiler center | 1 | 08/2010 | 51112756497 | $68.82 | Shop at ECS Tuning | ||||
| 10 | Pressure lip, front | 1 | 08/2010 | 51112755337 | $35.97 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | D = 8MM | 15 | 08/2010 | 51471911992 | $0.40 | Shop at ECS Tuning | |||
| 12 | PT screw | M5X16 | 2 | 08/2010 | 51642752568 | $0.86 | Shop at ECS Tuning | |||
| 13 | Expanding rivet | 10 | 08/2010 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet | 2 | 08/2010 | 51472754477 | $1.12 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
