Trim cover, front for BMW 1 Series E87 LCI 118i (2009)

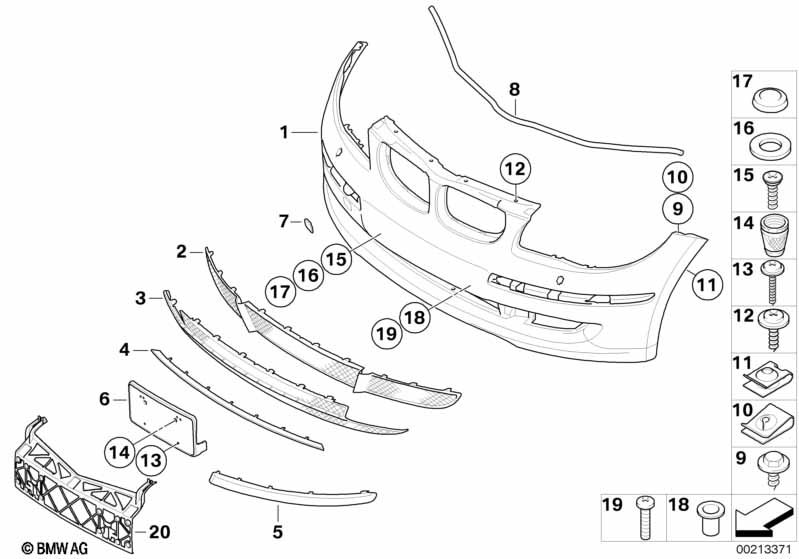

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 51117185125 | +core | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410003 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
S502A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117185124 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410003 | Shop at ECS Tuning | |||||
| 02 | Grid, bumper front | 1 | 51117166605 | $63.93 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fog lights |
S520A=Yes |
|||||||||
| 03 | Grid, bumper front | NSW | 1 | 51117182367 | Shop at ECS Tuning | |||||
| 04 | Finisher, rod | 1 | 51117182362 | Shop at ECS Tuning | ||||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC) |
S321A=Yes S508A=No |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | GRUNDIERT | 1 | 51117185131 | $25.37 | Shop at ECS Tuning | ||||
| 05 | Protective rubber strip,rght frnt bumper | GRUNDIERT | 1 | 51117185132 | $25.37 | Shop at ECS Tuning | ||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC) |
S321A=Yes S508A=Yes |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | GRUNDIERT/PDC | 1 | 51117185133 | Shop at ECS Tuning | |||||
| 05 | Protective rubber strip,rght frnt bumper | GRUNDIERT/PDC | 1 | 51117185134 | +core | Shop at ECS Tuning | ||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S321A=Yes S507A=No S508A=No |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | 1 | 51117166585 | Shop at ECS Tuning | ||||||
| 05 | Protective rubber strip,rght frnt bumper | 1 | 51117166586 | Shop at ECS Tuning | ||||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S321A=No S507A=Yes S508A=Yes |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | 1 | 51117166585 | Shop at ECS Tuning | ||||||
| 05 | Protective rubber strip,rght frnt bumper | 1 | 51117166586 | Shop at ECS Tuning | ||||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S321A=No S507A=Yes S508A=No |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | 1 | 51117166585 | Shop at ECS Tuning | ||||||
| 05 | Protective rubber strip,rght frnt bumper | 1 | 51117166586 | Shop at ECS Tuning | ||||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S321A=No S507A=No S508A=Yes |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | 1 | 51117166585 | Shop at ECS Tuning | ||||||
| 05 | Protective rubber strip,rght frnt bumper | 1 | 51117166586 | Shop at ECS Tuning | ||||||
| For vehicles with Exterior parts in vehicle color and Park Distance Control (PDC), rear and Park Distance Control (PDC) |
S321A=No S507A=No S508A=No |
|||||||||
| 05 | Protective rubber strip, lft frnt bumper | 1 | 51117166585 | Shop at ECS Tuning | ||||||
| 05 | Protective rubber strip,rght frnt bumper | 1 | 51117166586 | Shop at ECS Tuning | ||||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 06 | Licence plate base | 1 | 51117182374 | +core | Shop at ECS Tuning | |||||
| 07 | Flap, towing eye, primed | 1 | 51117201202 | Shop at ECS Tuning | ||||||
| 08 | Seal, equipment module, front | L=1380 MM | 1 | 51768045445 | $7.12 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | 4,8X22 | 2 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
| 10 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 11 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Torx screw with washer | ISA M6X18 | 6 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 13 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 4 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 14 | Threaded bush | M6 | 2 | 11611716166 | $0.68 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 15 | Phillips screw f plastic material | TS 5X13 | 4 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Washer | 4-200 HV-ZNS3 | 4 | 07/2007 | 07119904207 | Shop at ECS Tuning | ||||
| 17 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 17 | Covering cap | EUROPABLAU | X | 51187060798 | $0.21 | Shop at ECS Tuning | ||||
| 17 | Covering cap | GOLDGELB | X | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING Repair solution |
||||||||||
| 18 | Blind rivet nut, flat headed | M5 | 4 | 51138400227 | $2.77 | Shop at ECS Tuning | ||||
| 19 | Screw | M5X20 | 4 | 46612315376 | $0.60 | Shop at ECS Tuning | ||||
| 20 | Drilling template, licence plate front | 1 | 51117182375 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
