Trim panel A- / B- / C-Column for BMW 3 Series E92 LCI 335d (2013)

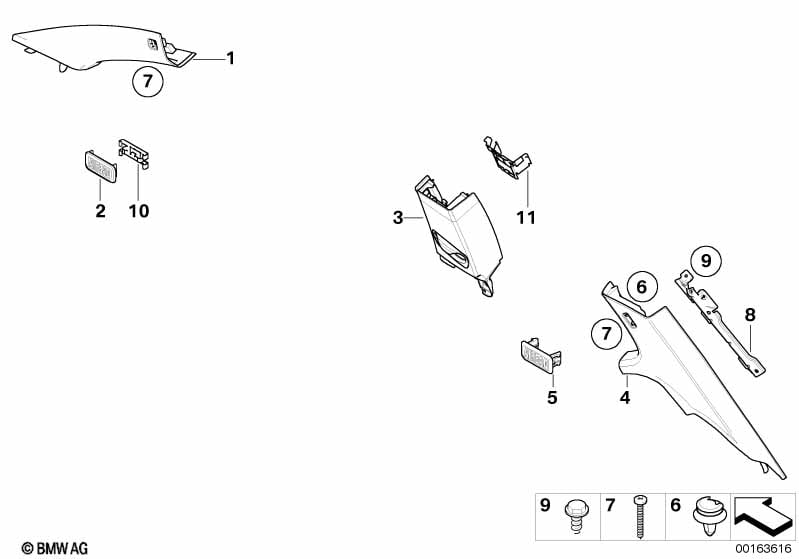

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Left column A cover | ANTHRAZIT | 1 | 51437960057 | $33.81 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | ANTHRAZIT | 1 | 51437960058 | $33.81 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRCC=Yes LRGE=Yes |
|||||||||
| 01 | Left column A cover | CREAMBEIGE | 1 | 51436954667 | $33.81 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | CREAMBEIGE | 1 | 51436954668 | $33.81 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 01 | Left column A cover | GRAU | 1 | 51436954665 | $33.81 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | GRAU | 1 | 51436954666 | $33.81 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Cover cap "Airbag" | SCHWARZ | 2 | 51432251367 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRCC=Yes LRGE=Yes |
|||||||||
| 02 | Cover cap f windshield frame cover - ITS | CREAMBEIGE | 2 | 51437073612 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 02 | Cover cap "Airbag" | HIMMELGRAU | 2 | 51437066521 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 03 | Cover, B-column upper left | ANTHRAZIT | 1 | 51437960059 | $37.43 | Shop at ECS Tuning | ||||
| 03 | Cover, B-column upper right | ANTHRAZIT | 1 | 51437960060 | $42.97 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRCC=Yes LRGE=Yes |
|||||||||
| 03 | Cover, B-column upper left | CREAMBEIGE | 1 | 51436954657 | $37.43 | Shop at ECS Tuning | ||||
| 03 | Cover, B-column upper right | CREAMBEIGE | 1 | 51436954658 | $37.43 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 03 | Cover, B-column upper left | GRAU | 1 | 51436954655 | $38.40 | Shop at ECS Tuning | ||||
| 03 | Cover, B-column upper right | GRAU | 1 | 51436954656 | $37.43 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Cover column C left | ANTHRAZIT | 1 | 51437960061 | $36.54 | +core | Shop at ECS Tuning | |||
| 04 | Cover column C right | ANTHRAZIT | 1 | 51437960062 | $36.54 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRCC=Yes LRGE=Yes |
|||||||||
| 04 | Cover column C left | CREAMBEIGE | 1 | 51436954649 | $35.92 | +core | Shop at ECS Tuning | |||
| 04 | Cover column C right | CREAMBEIGE | 1 | 51436954650 | $35.92 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 04 | Cover column C left | GRAU | 1 | 51436954647 | $35.92 | Shop at ECS Tuning | ||||
| 04 | Cover column C right | GRAU | 1 | 51436954648 | $35.92 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 05 | Covering cap | SCHWARZ | 2 | 51438036247 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/"cream-beige/black" or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRCC=Yes LRGE=Yes |
|||||||||
| 05 | Covering cap | CREAMBEIGE | 2 | 51436955183 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 05 | Covering cap | GRAU | 2 | 51437141173 | $1.54 | Shop at ECS Tuning | ||||
| 06 | Clip Natur | 10 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Torx bolt | ST4,8X32 | 4 | 07149112637 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Bracket left | 1 | 51437142167 | Shop at ECS Tuning | ||||||
| 08 | Bracket right | 1 | 51437142168 | $5.93 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST5,5X13 SW | 6 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | ST5,5X16 SW | 6 | 07119901339 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Cover cap support | 2 | 51437006830 | $0.64 | Shop at ECS Tuning | |||||
| 11 | Holding strap left | 1 | 51449130059 | $4.52 | Shop at ECS Tuning | |||||
| 11 | Retaining bracket, right | 1 | 51459130060 | $4.52 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
