Handle for BMW 3 Series E92 LCI 330i (2012)

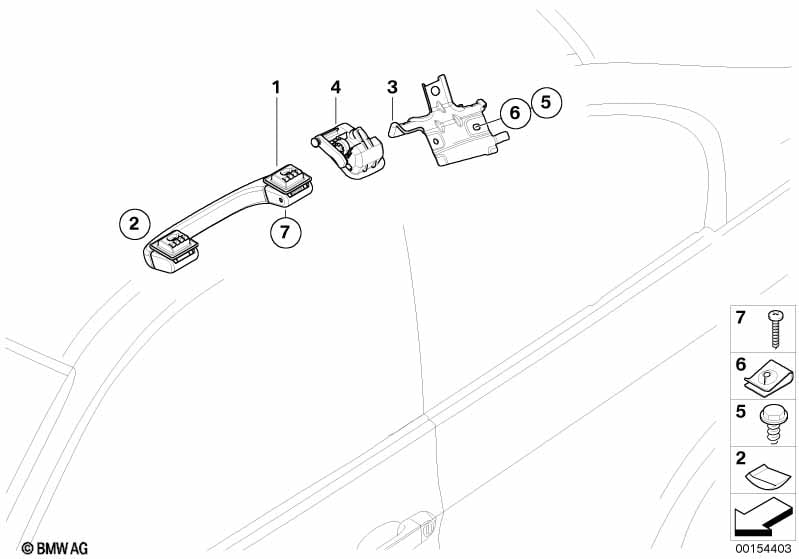

This Handle technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Grab handle, front | SCHWARZ | 2 | 51169143523 | $14.25 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 01 | Grab handle, front | SCHWARZ | 2 | 51169143528 | $14.25 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 01 | Grab handle, front | CREAMBEIGE | 2 | 51169143517 | $14.38 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
S403A=Yes KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 01 | Grab handle, front | CREAMBEIGE | 2 | 51169143525 | $15.98 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Reflex"/grey or Cloth/leather "Reflex"/anthracite/black or Cloth/leather "Flashlight/Saddle"/anthr. or Sensatec/black or Imitation leather/black or Leather "Dakota"/grau or Leather "Dakota"/dark blue or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/natural brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Nappa/tabak" or Leather "Nappa/black" or Leather "Nasca"/black |
ALAD=Yes ALAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes FLAD=Yes FLAT=Yes GGAT=Yes KASW=Yes KBSW=Yes LCAD=Yes LCCU=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNG=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NAF1=Yes NASW=Yes U6SW=Yes |
|||||||||
| 01 | Grab handle, front | GRAU | 2 | 51169143518 | $16.15 | +core | Shop at ECS Tuning | |||
| For vehicles with Glass roof, electrical and Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Reflex"/grey or Cloth/leather "Reflex"/anthracite/black or Cloth/leather "Flashlight/Saddle"/anthr. or Sensatec/black or Imitation leather/black or Leather "Dakota"/grau or Leather "Dakota"/dark blue or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/natural brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Nappa/tabak" or Leather "Nappa/black" or Leather "Nasca"/black |
S403A=Yes ALAD=Yes ALAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes FLAD=Yes FLAT=Yes GGAT=Yes KASW=Yes KBSW=Yes LCAD=Yes LCCU=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNG=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NAF1=Yes NASW=Yes U6SW=Yes |
|||||||||
| 01 | Grab handle, front | GRAU | 2 | 51169143527 | $14.25 | +core | Shop at ECS Tuning | |||
| 02 | Covering cap for grip | SCHWARZ | 2 | 51167897902 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Glass roof, electrical |
S403A=Yes |
|||||||||
| 02 | Cover | SCHWARZ | 2 | 51167896988 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 02 | Covering cap for grip | CREAMBEIGE | 2 | 51166955417 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
S403A=Yes KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 02 | Covering cap for grip | CREAMBEIGE | 2 | 51166958954 | Shop at ECS Tuning | |||||
| 03 | Bracket left | 1 | 51167117615 | $1.92 | Shop at ECS Tuning | |||||
| 03 | Bracket right | 1 | 51167117616 | $1.92 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Clothes hook | SCHWARZ | 2 | 51169150380 | $13.27 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige or Leather Walknappa/cream-beige |
KAGE=Yes LCGE=Yes LRGE=Yes |
|||||||||
| 04 | Clothes hook | CREAMBEIGE DKL | 2 | 51169150387 | $8.20 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Reflex"/grey or Cloth/leather "Reflex"/anthracite/black or Cloth/leather "Flashlight/Saddle"/anthr. or Sensatec/black or Imitation leather/black or Leather "Dakota"/grau or Leather "Dakota"/dark blue or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather "Dakota"/natural brown or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black or Leather "Nappa/tabak" or Leather "Nappa/black" or Leather "Nasca"/black |
ALAD=Yes ALAT=Yes AWAD=Yes AWAT=Yes FHAT=Yes FLAD=Yes FLAT=Yes GGAT=Yes KASW=Yes KBSW=Yes LCAD=Yes LCCU=Yes LCCX=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNG=Yes LCNH=Yes LCNM=Yes LCSW=Yes LRD4=Yes LRSW=Yes NAF1=Yes NASW=Yes U6SW=Yes |
|||||||||
| 04 | Clothes hook | GRAU | 2 | 51167261705 | Shop at ECS Tuning | |||||
| 05 | Sheet metal screw | ST4,8X13-C-ZNT- | 4 | 07119901288 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Sheet-metal screw, silver | ST4,8X19 | 2 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Sheet-metal screw, black | ST4,8X19 | 2 | 07119905746 | $3.73 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 330i Handle?
- This technical diagram illustrates the Handle within the Vehicle trim group for the 3 Series E92 LCI 330i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Grab handle, front (Part #51169143523).
- Which models use the hardware listed in this Handle?
- The hardware and components featured in the Handle are specific to the 3 Series E92 LCI 330i produced during 2012. These technical specifications ensure that parts like the Grab handle, front (51169143523) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Handle assembly?
- Each item in the Handle corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 330i, you can identify the Grab handle, front by locating its position on the schematic, which then links to the official BMW part number 51169143523 for the Vehicle trim section.
