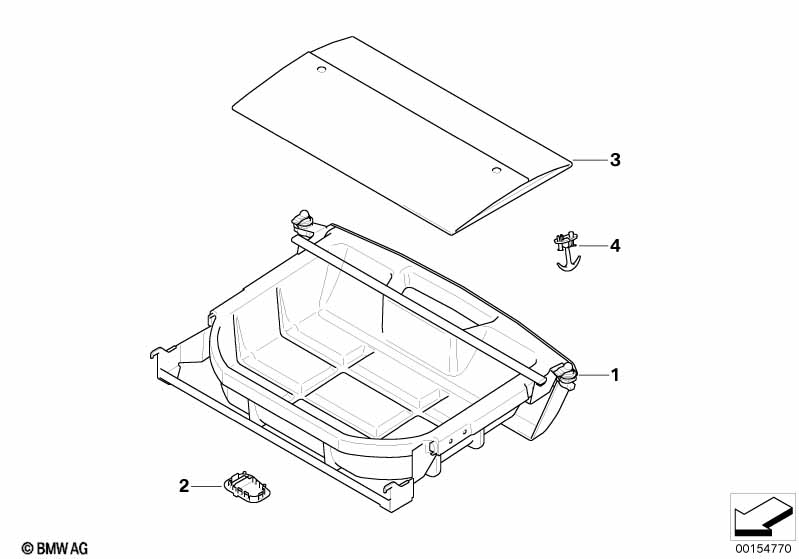

Sliding comp. luggage comp./folding box for BMW 3 Series E90 LCI 335i (2011)
This Sliding comp. luggage comp./folding box technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Folding box, waterproof | 570 X 316 X 200 | 1 | 51477131154 | $92.15 | +core | Shop at ECS Tuning | |||
| 04 | Pocket holder | 1 | 51477140606 | $11.33 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 335i Sliding comp. luggage comp./folding box?
- This technical diagram illustrates the Sliding comp. luggage comp./folding box within the Vehicle trim group for the 3 Series E90 LCI 335i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Folding box, waterproof (Part #51477131154).
- Which models use the hardware listed in this Sliding comp. luggage comp./folding box?
- The hardware and components featured in the Sliding comp. luggage comp./folding box are specific to the 3 Series E90 LCI 335i produced during 2011. These technical specifications ensure that parts like the Folding box, waterproof (51477131154) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sliding comp. luggage comp./folding box assembly?
- Each item in the Sliding comp. luggage comp./folding box corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 335i, you can identify the Folding box, waterproof by locating its position on the schematic, which then links to the official BMW part number 51477131154 for the Vehicle trim section.
