Luggage compartment sill trim for BMW 3 Series E90 320d (2007)

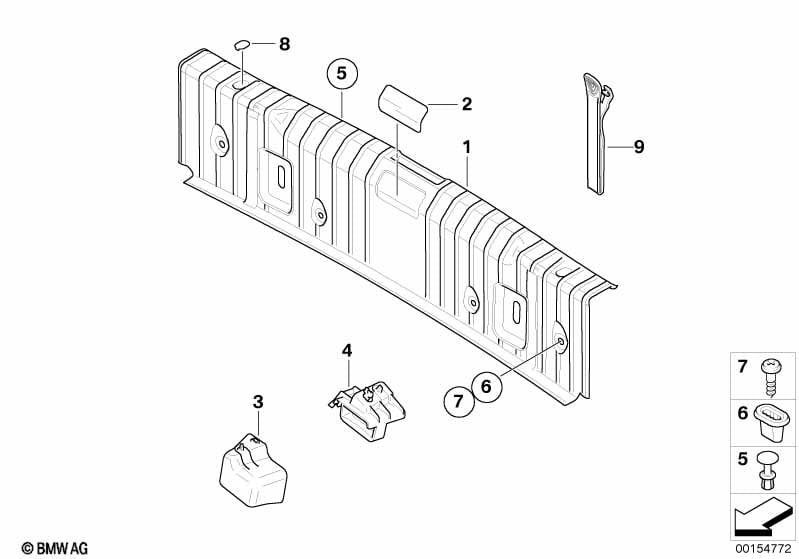

This Luggage compartment sill trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Loading sill cover | 1 | 51477059258 | $27.97 | +core | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 01 | Loading sill cover | 1 | 51477138472 | $27.70 | +core | Shop at ECS Tuning | ||||
| 02 | Cover, catch bracket | 1 | 51477139442 | $2.13 | Shop at ECS Tuning | |||||
| 03 | Bracket f. hazard warn. triangle,part. | 1 | 51477131760 | $4.97 | Shop at ECS Tuning | |||||
| 04 | Bracket for hazard warn. triangle,rear | 1 | 51477131761 | $4.97 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | GRAU | 4 | 51478184135 | $0.52 | Shop at ECS Tuning | ||||
| 06 | Grommet | 12X6,3 | 2 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Screw | NS-TS5X16-ZNFE | 4 | 07129903266 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Phillips screw f plastic material | TS5X12 | 2 | 07129904424 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Cover lid | GRAU | 2 | 51477138475 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Cover lid | SCHWARZ | 2 | 51479182767 | $0.48 | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 09 | Universal holder | 1 | 51477152788 | $6.95 | Shop at ECS Tuning | |||||
