Exterior trim / grill for BMW 1 Series E82 118d (2013)
This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille w chrome frame, left | 1 | 51137166439 | $53.41 | Shop at ECS Tuning | |||||
| 01 | Grille w chrome frame, right | 1 | 51137166440 | $53.41 | Shop at ECS Tuning | |||||

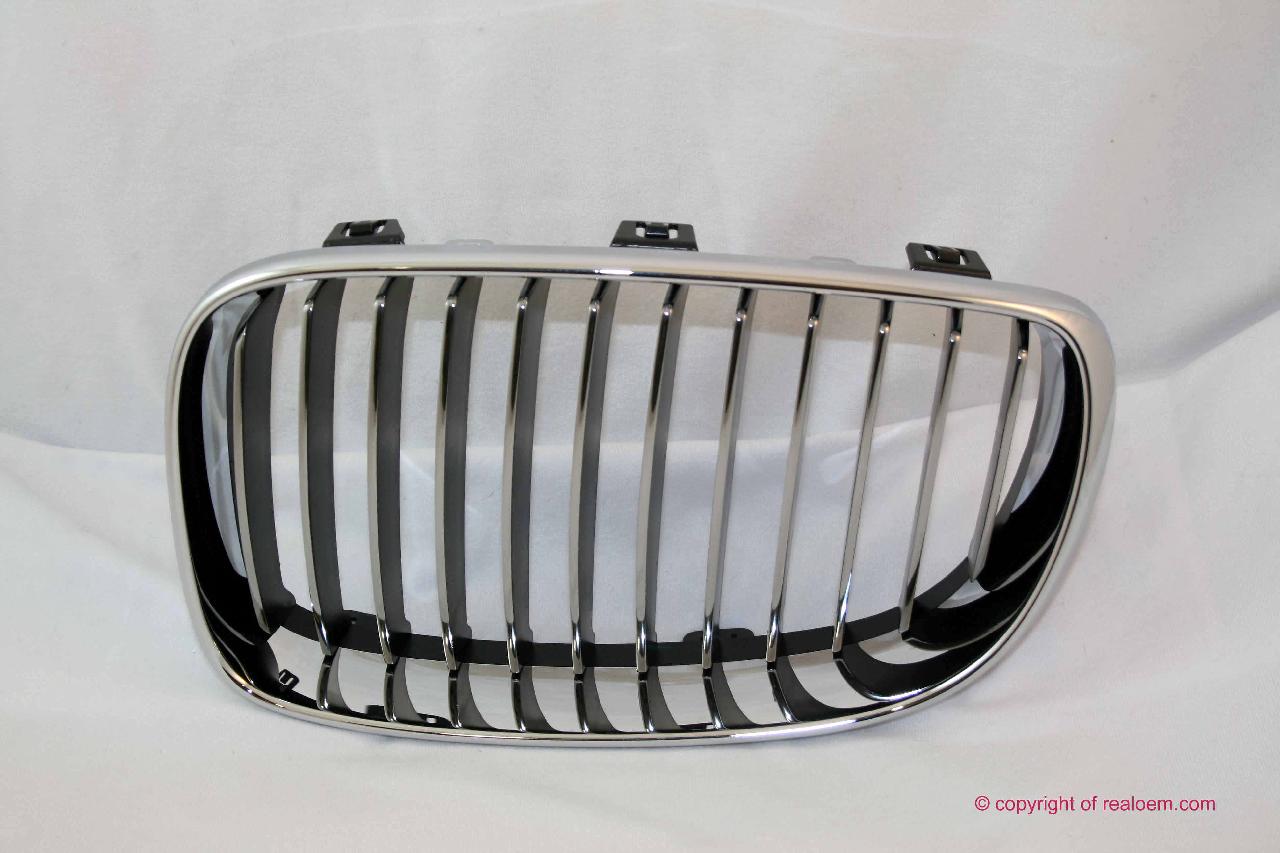

| 01 | Grille, chrome, left | 1 | 51137179655 | $53.41 | Shop at ECS Tuning | |||||

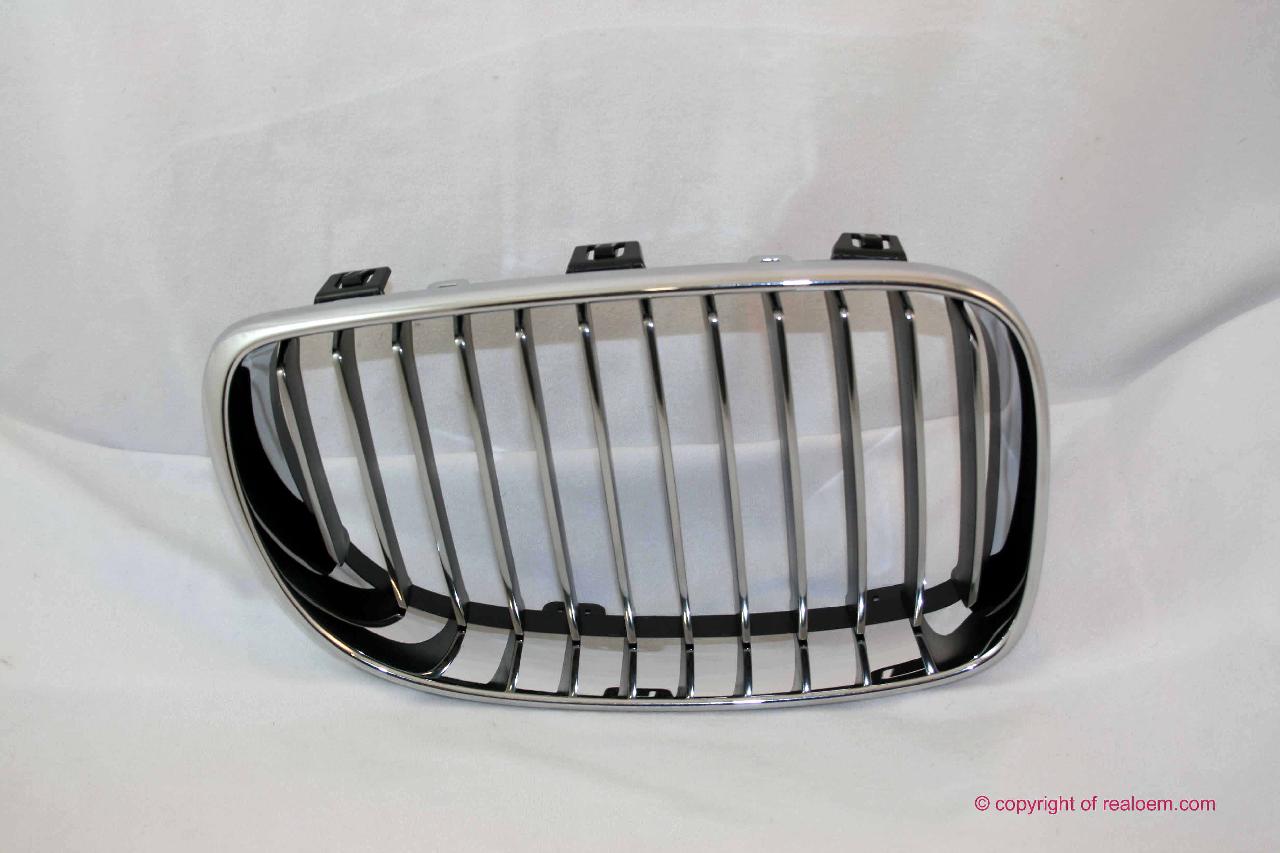

| 01 | Grille, chrome, right | 1 | 51137179656 | $53.41 | Shop at ECS Tuning | |||||
| For vehicles with Sports Edition |
P7MFA=Yes |
|||||||||
| 01 | Trim grill, high-gloss black, left | 1 | 03/2012 | 51137322209 | Shop at ECS Tuning | |||||
| 01 | Trim grill, high-gloss black, right | 1 | 03/2012 | 51137322210 | Shop at ECS Tuning | |||||
| For vehicles with Limited Edition Lifestyle or Limited Edition Lifestyle + M Package |
P7L1A=Yes P7L2A=Yes |
|||||||||
| 01 | Grille w chrome frame, left | ALPINWEISS | 1 | 03/2013 | 51137354949 | Shop at ECS Tuning | ||||
| 01 | Grille w chrome frame, right | ALPINWEISS | 1 | 03/2013 | 51137354950 | Shop at ECS Tuning | ||||
| 02 | Roof molding prime-coated left | 1 | 51132996977 | $53.18 | Shop at ECS Tuning | |||||
| 02 | Roof molding prime-coated right | 1 | 51132996978 | $53.18 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 02 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130036149 | ENDED | Shop at ECS Tuning | ||||
| 02 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130036150 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip | SCHWARZ | 14 | 51137077127 | $0.61 | Shop at ECS Tuning | ||||
| 04 | Supporting ledge | 1 | 51317133291 | $15.43 | Shop at ECS Tuning | |||||
| 05 | Cover, windshield, top | 1 | 51317058224 | $30.83 | Shop at ECS Tuning | |||||
| 06 | Cover, windshield | 1 | 51717125599 | Shop at ECS Tuning | ||||||
| 07 | Cover | D = 38MM | 1 | 51717169481 | $3.05 | Shop at ECS Tuning | ||||
| 08 | Sealing strip, cross member | 1 | 51717163641 | $10.63 | Shop at ECS Tuning | |||||
| 09 | Channel cover,exterior,door, front left | MATTSCHWARZ | 1 | 51337164937 | $33.95 | Shop at ECS Tuning | ||||
| 09 | Channel cover,exterior,door, front right | MATTSCHWARZ | 1 | 51337164938 | $33.95 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 09 | Channel cover,exterior,door, front left | ALU MATT | 1 | 51337164953 | $51.42 | Shop at ECS Tuning | ||||
| 09 | Channel cover,exterior,door, front right | ALU MATT | 1 | 51337164954 | $51.42 | Shop at ECS Tuning | ||||
| For vehicles with Sports Edition or High gloss shadow line |
P7MFA=Yes S760A=Yes |
|||||||||
| 09 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 51337190867 | $51.42 | Shop at ECS Tuning | ||||
| 09 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 51337190868 | $51.42 | Shop at ECS Tuning | ||||
| 11 | Roof frame strip, left | SCHWARZ MATT | 1 | 51132996325 | $204.81 | Shop at ECS Tuning | ||||
| 11 | Roof frame strip, right | SCHWARZ MATT | 1 | 51132996326 | $204.81 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 11 | Roof frame strip, left | GLANZSCHWARZ | 1 | 51132996901 | $266.90 | Shop at ECS Tuning | ||||
| 11 | Roof frame strip, right | GLANZSCHWARZ | 1 | 51132996902 | $266.90 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 11 | Roof frame strip, left | ALU MATT | 1 | 51132996071 | $240.04 | Shop at ECS Tuning | ||||
| 11 | Roof frame strip, right | ALU MATT | 1 | 51132996072 | $240.04 | Shop at ECS Tuning | ||||
| 12 | Left roof frame gasket | 1 | 51767164949 | $56.36 | Shop at ECS Tuning | |||||
| 12 | Right roof frame gasket | 1 | 51767164950 | $56.36 | Shop at ECS Tuning | |||||
| 13 | Channel sealing,inside,door, front left | 1 | 51337164939 | $56.03 | Shop at ECS Tuning | |||||
| 13 | Channel sealing,inside,door, front right | 1 | 51337164940 | $56.03 | Shop at ECS Tuning | |||||
| 14 | Seal, outer left mirror triangle | 1 | 51337164935 | $41.98 | Shop at ECS Tuning | |||||
| 14 | Seal, outer right mirror triangle | 1 | 51337164936 | $41.98 | Shop at ECS Tuning | |||||
| 15 | Cover column B left | 1 | 51377164945 | $9.75 | Shop at ECS Tuning | |||||
| 15 | Cover column B right | 1 | 51377164946 | $9.75 | Shop at ECS Tuning | |||||
| 16 | Joint seal, left | 1 | 51377164941 | $18.80 | Shop at ECS Tuning | |||||
| 16 | Joint seal, right | 1 | 51377164942 | $18.80 | Shop at ECS Tuning | |||||
| 17 | Clip strip roof frame | 22 | 51765A71150 | Shop at ECS Tuning | ||||||
| 18 | Grommet | 22 | 51318150943 | $0.27 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
