Front panel/cooling flap control for BMW 3 Series E90 320d (2008)

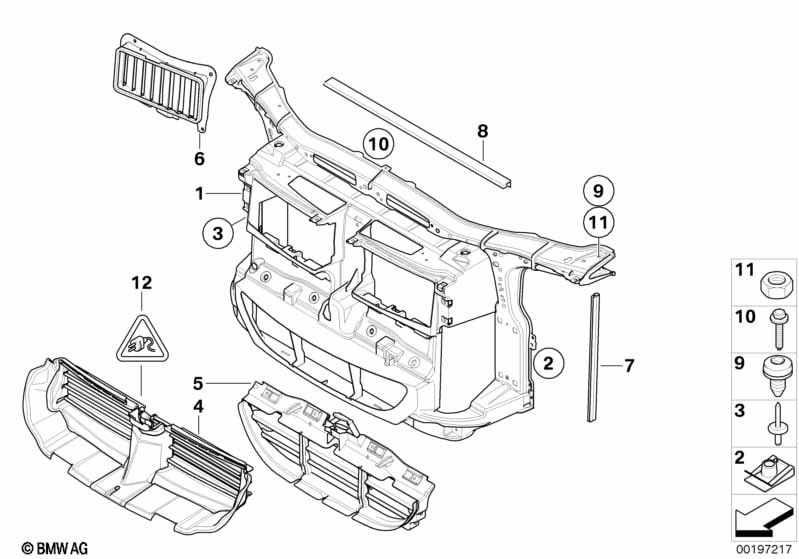

This Front panel/cooling flap control technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with CO2 package and Trailer coupling and M Aerodynamics package |
S1CBA=Yes S3ACA=No S715A=No |
||||||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Front panel | 1 | 51647173564 | $279.43 | Shop at ECS Tuning | |||||
| 02 | Clip nut | M6 | 14 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 03 | Blind rivet | 5 MM | 2 | 07147126190 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 04 | Air flap control, top | 1 | 51747173571 | Shop at ECS Tuning | ||||||
| 07 | Seal, cooling module | 2 | 51647134101 | $3.17 | Shop at ECS Tuning | |||||
| 08 | Seal, front panel/cooler at top | 1 | 51647134102 | $4.25 | Shop at ECS Tuning | |||||
| 09 | Torx bolt | ISA M6X18 SW | 26 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Torx-bolt with washer | M6X12 | 4 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X52-10.9 | 4 | 07146989591 | $4.59 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M6 | 2 | 07146988146 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Universal socket housing uncoded | 4-POLIG | 1 | 12527549033 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Terminal socket MCON 1.2 ELA | 0,5-0,75MM² AG | 4 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
