Cover door sill / wheel arch for BMW 1 Series E87 LCI 118i (2009)

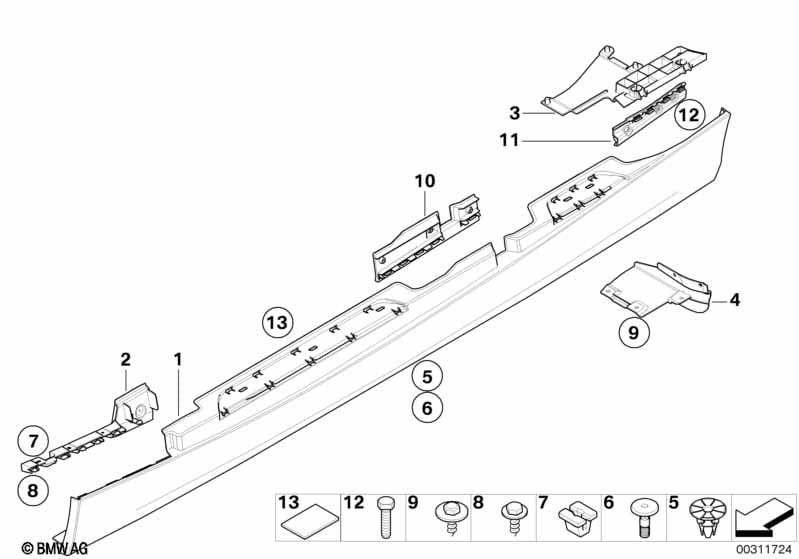

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 03/2007 | 51777046345 | $123.17 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | 1 | 03/2007 | 51777046346 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 03/2007 | 51770036144 | ENDED | Shop at ECS Tuning | |||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 03/2007 | 51770036145 | ENDED | Shop at ECS Tuning | |||
| 02 | Supporting ledge left | 1 | 03/2007 | 51777184355 | Shop at ECS Tuning | |||||
| 02 | Supporting ledge right | 1 | 03/2007 | 51777184356 | Shop at ECS Tuning | |||||
| 03 | Extension, floorpan cover, side, left | 1 | 03/2007 | 51777141861 | $9.21 | Shop at ECS Tuning | ||||
| 03 | Extension, floorpan cover, side, right | 1 | 03/2007 | 51777141862 | $9.21 | Shop at ECS Tuning | ||||
| 04 | Deflector lip, rear left | 1 | 03/2007 | 51717117637 | $6.73 | Shop at ECS Tuning | ||||
| 04 | Deflector lip, rear right | 1 | 03/2007 | 51777117638 | $6.73 | Shop at ECS Tuning | ||||
| 05 | Spacer clip | 20 | 03/2007 | 07147122912 | $0.48 | Shop at ECS Tuning | ||||
| 06 | Pin | 20 | 03/2007 | 07147122913 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 8 | 03/2007 | 51327000058 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Hex head screw | ST4,8X16-ZNS3 | 6 | 03/2007 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 09 | Hex head screw | 6 | 03/2007 | 07147151963 | $0.29 | Shop at ECS Tuning | ||||
| 10 | Retaining strip, B-pillar, left | 1 | 03/2007 | 51117174399 | Shop at ECS Tuning | |||||
| 10 | Retaining strip, B-pillar, right | 1 | 03/2007 | 51117174400 | Shop at ECS Tuning | |||||
| 11 | Retaining strip, C-pillar, left | 1 | 03/2007 | 51117174401 | Shop at ECS Tuning | |||||
| 11 | Retaining strip, C-pillar, right | 1 | 03/2007 | 51117174402 | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | TS5X20-ZNS3 | 14 | 03/2007 | 07129905968 | $0.16 | Shop at ECS Tuning | |||
| 13 | Protective adhesive film | 90X60MM | X | 03/2007 | 07148045544 | $3.38 | Shop at ECS Tuning | |||
