Cover door sill / wheel arch for BMW 1 Series E88 128i (2013)

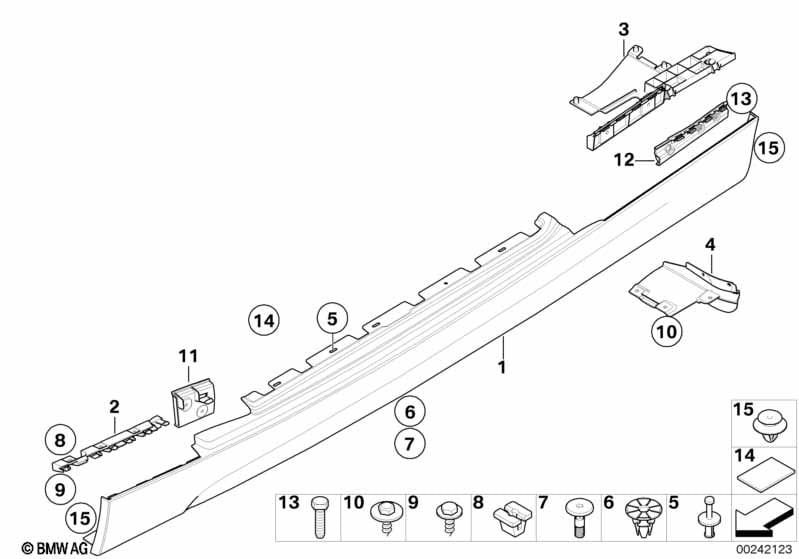

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 128i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 51777046347 | $123.17 | Shop at ECS Tuning | |||||
| 01 | Primed right door sill trim panel | 1 | 51777046348 | $123.17 | Shop at ECS Tuning | |||||
| 01 | Primed left outer kick panel | -M- | 1 | 51778037453 | $149.09 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | -M- | 1 | 51778037454 | $149.09 | +core | Shop at ECS Tuning | |||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Primed left outer kick panel | -M- | 1 | 51778037453 | $149.09 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | -M- | 1 | 51778037454 | $149.09 | +core | Shop at ECS Tuning | |||
| 02 | Supporting ledge left | 1 | 51777118159 | $2.65 | Shop at ECS Tuning | |||||
| 02 | Supporting ledge right | 1 | 51777118160 | $2.65 | Shop at ECS Tuning | |||||
| 03 | Lateral underbody shield, left | 1 | 51757201225 | $9.21 | Shop at ECS Tuning | |||||
| 03 | Lateral underbody shield, right | 1 | 51757201226 | $9.21 | Shop at ECS Tuning | |||||
| 04 | Deflector lip, rear left | 1 | 51717117637 | $6.73 | Shop at ECS Tuning | |||||
| 04 | Deflector lip, rear right | 1 | 51777117638 | $6.73 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Spacer clip | 16 | 51777178198 | $0.65 | Shop at ECS Tuning | |||||
| 07 | Pin | 16 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 6 | 51327000058 | $0.39 | Shop at ECS Tuning | |||||
| 09 | Hex head screw | ST4,8X16-ZNS3 | 6 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 09 | Hex head screw | ST4,8X13-C-U1-Z | 6 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | 6 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 11 | Retaining strip, A-pillar, left | 1 | 51777177795 | $3.78 | Shop at ECS Tuning | |||||
| 11 | Retaining strip, A-pillar, right | 1 | 51777177796 | $3.78 | Shop at ECS Tuning | |||||
| 12 | Supporting ledge | 4 | 51777169979 | $2.55 | Shop at ECS Tuning | |||||
| 13 | Fillister head screw | TS5X20-ZNS3 | 12 | 07129905968 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Protective adhesive film | 90X60MM | X | 07148045544 | $3.38 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
