M cover for rocker panel / wheel arch for BMW 1 Series E87 LCI 118i (2009)

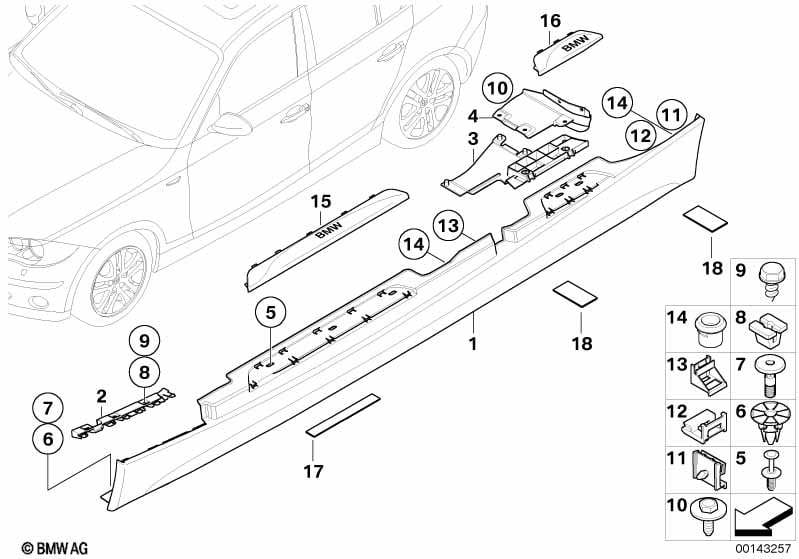

This M cover for rocker panel / wheel arch technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Primed left outer kick panel | -M- | 1 | 51777837435 | +core | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | -M- | 1 | 51777837436 | +core | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 51770033556 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 51770033557 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Supporting ledge left | 1 | 51777118159 | $2.65 | Shop at ECS Tuning | |||||
| 02 | Supporting ledge right | 1 | 51777118160 | $2.65 | Shop at ECS Tuning | |||||
| 03 | Extension, floorpan cover, side, left | 1 | 51777141861 | $9.21 | Shop at ECS Tuning | |||||
| 03 | Extension, floorpan cover, side, right | 1 | 51777141862 | $9.21 | Shop at ECS Tuning | |||||
| 04 | Deflector lip, rear left | 1 | 51717117637 | $6.73 | Shop at ECS Tuning | |||||
| 04 | Deflector lip, rear right | 1 | 51777117638 | $6.73 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | D = 8MM | 10 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Spacer clip | 10 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 07 | Pin | 10 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 6 | 51327000058 | $0.39 | Shop at ECS Tuning | |||||
| 09 | Hex head screw | ST4,8X13-C-U1-Z | 6 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | 6 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 11 | Clip | 2 | 51777122915 | Shop at ECS Tuning | ||||||
| 12 | Clip | 1 | 51717836735 | Shop at ECS Tuning | ||||||
| 12 | Clip | 1 | 51777162393 | Shop at ECS Tuning | ||||||
| 13 | Clip | 1 | 51777122914 | Shop at ECS Tuning | ||||||
| 14 | Grommet, green | D=9,1MM | 4 | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 15 | M trim piece, front left entry | M | 1 | 51477906817 | Shop at ECS Tuning | |||||
| 15 | M trim piece, front right entry | M | 1 | 51477906818 | Shop at ECS Tuning | |||||
| 16 | M trim piece, rear left entry | M | 1 | 51477906819 | Shop at ECS Tuning | |||||
| 16 | M trim piece, rear right entry | M | 1 | 51477906820 | Shop at ECS Tuning | |||||
| 17 | Protective adhesive film | 90X60MM | 6 | 07148045544 | $3.38 | Shop at ECS Tuning | ||||
| 18 | Protective adhesive film | 40X40MM | 3 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
