Carrier, front for BMW 5 Series E61 LCI M5 (2010)

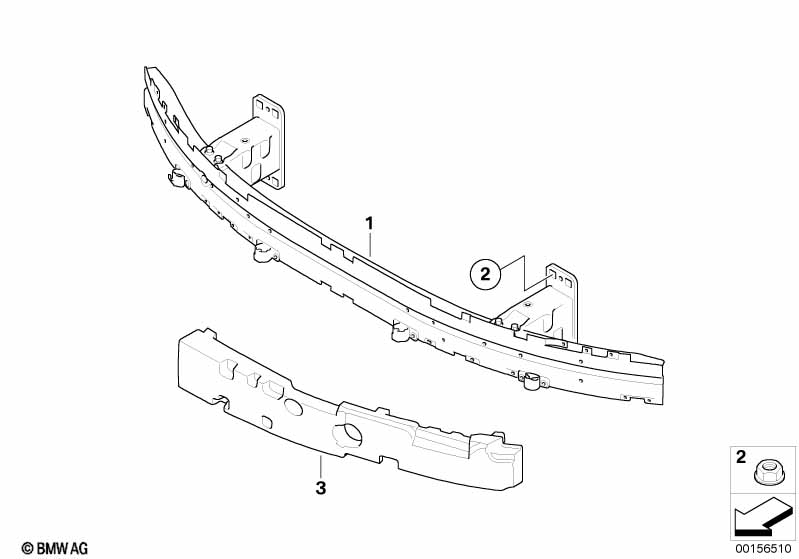

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper front | 1 | 03/2007 | 51117178080 | +core | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Carrier, bumper front | 1 | 03/2007 | 51117148586 | $295.48 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adapter | M | 2 | 03/2007 | 51117896611 | $20.58 | Shop at ECS Tuning | |||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier, bumper front | 1 | 03/2007 | 51117178087 | $325.02 | +core | Shop at ECS Tuning | |||
| 02 | Hex nut with plate | M8 | 8 | 03/2007 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 03 | Shock absorber front left | 1 | 03/2007 | 51117178081 | Shop at ECS Tuning | |||||
| 03 | Shock absorber front right | 1 | 03/2007 | 51117178082 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 03 | Shock absorber front left | M | 1 | 03/2007 | 51117896589 | Shop at ECS Tuning | ||||
| 03 | Shock absorber front right | M | 1 | 03/2007 | 51117896590 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 03 | Shock absorber front left | 1 | 03/2007 | 51117178083 | $32.64 | Shop at ECS Tuning | ||||
| 03 | Shock absorber front right | 1 | 03/2007 | 51117178084 | $32.64 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and M Aerodynamics package |
L802A=Yes S715A=Yes |
|||||||||
| 03 | Shock absorber front left | M | 1 | 03/2007 | 51117896591 | $32.64 | Shop at ECS Tuning | |||
| 03 | Shock absorber front right | M | 1 | 03/2007 | 51117896592 | $32.64 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
