Trim, decor elements, front for BMW 5 Series E60 LCI 523i (2008)

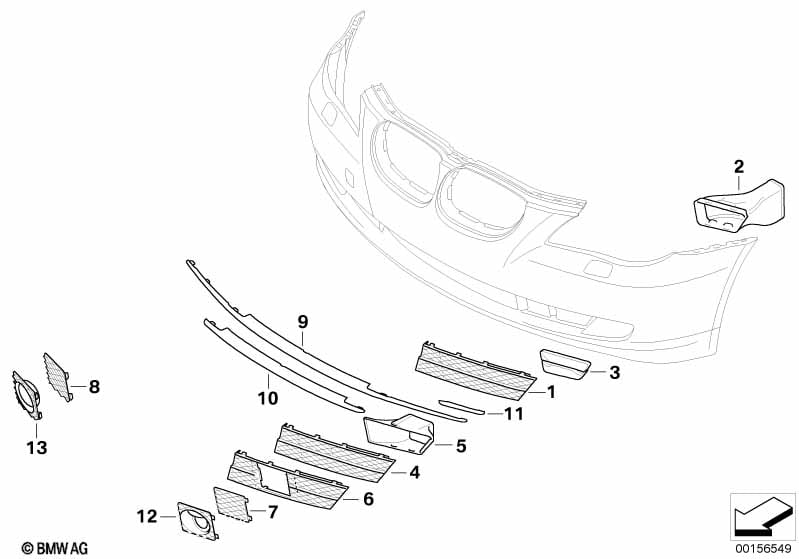

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grid lateral left | 1 | 03/2007 | 51117178097 | $30.13 | Shop at ECS Tuning | ||||
| 01 | Grid lateral right | 1 | 03/2007 | 51117178098 | $30.13 | Shop at ECS Tuning | ||||
| 02 | Front left brake air duct | 1 | 03/2007 | 51117178085 | $28.30 | Shop at ECS Tuning | ||||
| 02 | Front right brake air duct | 1 | 03/2007 | 51117178086 | $28.30 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control or BMW Night Vision |
S541A=Yes S611A=Yes |
|||||||||
| 06 | Grid lateral left | NVC / ACC2 | 1 | 03/2007 | 51117178101 | $30.13 | Shop at ECS Tuning | |||
| 06 | Grid lateral right | NVC / ACC2 | 1 | 03/2007 | 51117178102 | $30.13 | Shop at ECS Tuning | |||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 07 | Dummy plug left | ACC2 | 1 | 03/2007 | 51117178105 | $6.80 | Shop at ECS Tuning | |||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 08 | Dummy plug right | NVC | 1 | 03/2007 | 51117178106 | $6.80 | Shop at ECS Tuning | |||
| 09 | Edge trim | 1 | 03/2007 | 51117178096 | $25.00 | Shop at ECS Tuning | ||||
| 10 | Edge trim, center | 1 | 03/2007 | 51117178113 | $21.63 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control or BMW Night Vision |
S541A=Yes S611A=Yes |
|||||||||
| 11 | Edge trim, side, left | NVC / ACC2 | 1 | 03/2007 | 51117178107 | $10.83 | Shop at ECS Tuning | |||
| 11 | Edge trim, side, right | NVC / ACC2 | 1 | 03/2007 | 51117178108 | $10.83 | Shop at ECS Tuning | |||
| For vehicles with BMW Night Vision |
S611A=Yes |
|||||||||
| 12 | Insert NVC | 1 | 03/2007 | 51117178103 | $2.88 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 13 | Insert ACC2 | 1 | 03/2007 | 51117178104 | $2.88 | Shop at ECS Tuning | ||||
