Air ducts for BMW 5 Series E60 LCI 523i (2008)

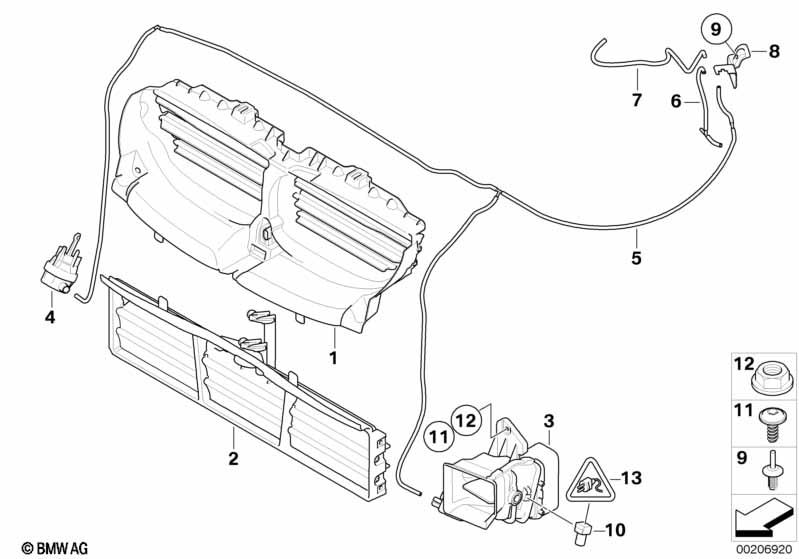

This Air ducts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air flap control, active, upper | 1 | 03/2007 | 51117178116 | $161.61 | Shop at ECS Tuning | ||||
| 02 | Air flap control, passive, lower | 1 | 03/2007 | 51117178119 | $81.51 | Shop at ECS Tuning | ||||
| 03 | Brake flap control, left | 1 | 03/2007 | 51117178117 | $88.16 | Shop at ECS Tuning | ||||
| 03 | Brake flap control, right | 1 | 03/2007 | 51117178118 | $88.16 | Shop at ECS Tuning | ||||
| 04 | Vacuum capsule, BKS, left | 1 | 03/2007 | 51117190661 | $18.30 | Shop at ECS Tuning | ||||
| 04 | Vacuum capsule, BKS, right | 1 | 03/2007 | 51117190662 | $18.30 | Shop at ECS Tuning | ||||
| 05 | Vacuum supply, BKS | 1 | 03/2007 | 51117178120 | $33.40 | +core | Shop at ECS Tuning | |||
| 06 | Tubing | 1 | 03/2007 | 51117183514 | $6.88 | +core | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 03/2007 | 51117183521 | $2.33 | Shop at ECS Tuning | ||||
| 09 | Blind rivet | D = 4MM | 1 | 03/2007 | 66316777308 | $0.33 | Shop at ECS Tuning | |||
| 10 | Hall sensor | 1 | 03/2007 | 61316983280 | $19.16 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | ISA M6X28 | 2 | 03/2007 | 63127068171 | $0.72 | Shop at ECS Tuning | |||
| 12 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 03/2007 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 13 | Universal socket housing uncoded | 2 POL. | 1 | 03/2007 | 09/2010 | 61138795954 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 2 | 03/2007 | 09/2010 | 61136931880 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 03/2007 | 09/2010 | 61138366245 | $0.17 | Shop at ECS Tuning | ||
| 13 | Rep. kit for socket housing | 2 POL. | 1 | 03/2007 | 61132359999 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 2 | 03/2007 | 61136931880 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 03/2007 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
