Roof moulding/Roof rail for BMW 5 Series G31 Touring LCI 520dX (2024)

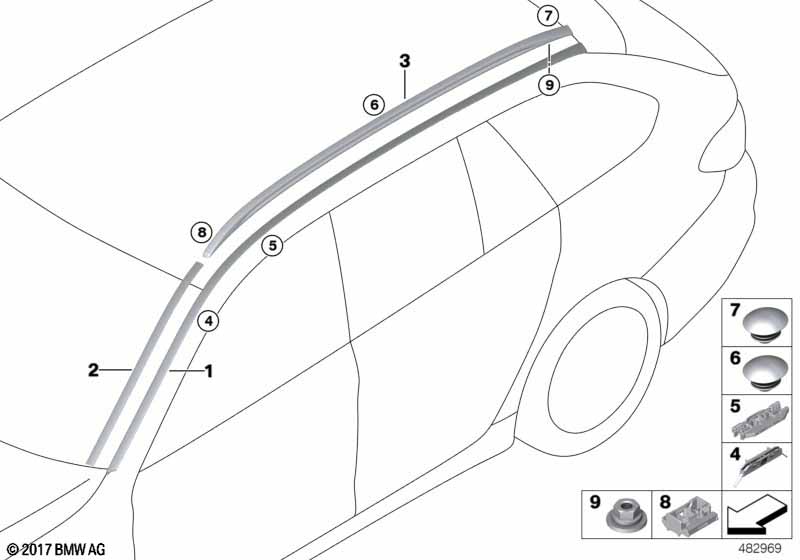

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Roof railing black and Roof rail, silver and Indiv. roof rail high-gloss Shadow Line |
S3AAA=No S3ASA=No S3MCA=No |
|||||||||
| 01 | Roof molding prime-coated left | 1 | 51137443693 | Shop at ECS Tuning | ||||||
| 01 | Roof molding prime-coated right | 1 | 51137443694 | Shop at ECS Tuning | ||||||
| For vehicles with Roof railing black or Roof rail, silver or Indiv. roof rail high-gloss Shadow Line |
S3AAA=Yes S3ASA=Yes S3MCA=Yes |
|||||||||
| 02 | Roof molding prime-coated left | RELING | 1 | 51137443695 | Shop at ECS Tuning | |||||
| 02 | Roof molding prime-coated right | RELING | 1 | 51137443696 | Shop at ECS Tuning | |||||
| For vehicles with Roof rail, silver |
S3ASA=Yes |
|||||||||
| 03 | Roof rail, silver, satin-finish, left | 1 | 51137391711 | Shop at ECS Tuning | ||||||
| 03 | Roof rail, silver, satin-finish, right | 1 | 51137391712 | Shop at ECS Tuning | ||||||
| For vehicles with Indiv. roof rail high-gloss Shadow Line |
S3MCA=Yes |
|||||||||
| 03 | Roof rail, high-gloss, black, left | 1 | 51138065957 | Shop at ECS Tuning | ||||||
| 03 | Roof rail, high-gloss, black, right | 1 | 51138065958 | Shop at ECS Tuning | ||||||
| For vehicles with Roof rail, silver and Indiv. roof rail high-gloss Shadow Line |
S3ASA=No S3MCA=No |
|||||||||
| 03 | Roof rail, black, left | 1 | 07/2022 | 51137391709 | Shop at ECS Tuning | |||||
| 03 | Roof rail, black, right | 1 | 07/2022 | 51137391710 | Shop at ECS Tuning | |||||
| 04 | Clip | 10 | 51137357283 | Shop at ECS Tuning | ||||||
| For vehicles with Roof railing black and Roof rail, silver and Indiv. roof rail high-gloss Shadow Line |
S3AAA=No S3ASA=No S3MCA=No |
|||||||||
| 05 | Clip for roof trim strip | 20 | 51137425214 | Shop at ECS Tuning | ||||||
| 06 | Plug | 10.6X13 | 4 | 51137269703 | Shop at ECS Tuning | |||||
| 07 | Plug | 10.6X9 | 2 | 51137269704 | Shop at ECS Tuning | |||||
| For vehicles with Roof railing black or Roof rail, silver or Indiv. roof rail high-gloss Shadow Line |
S3AAA=Yes S3ASA=Yes S3MCA=Yes |
|||||||||
| 08 | Clip | 6 | 51137421929 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | 6 | 07147195759 | $1.16 | Shop at ECS Tuning | |||||
