Trim cover, rear for BMW 5 Series E60 LCI 530Li (2009)

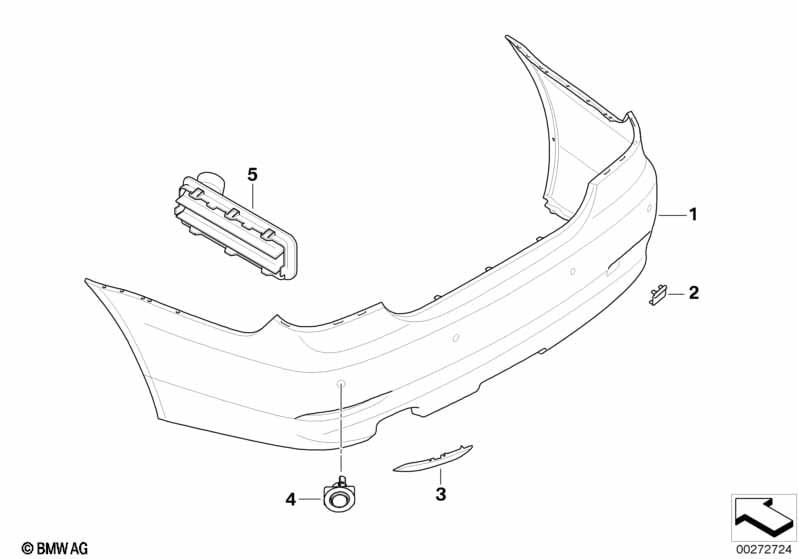

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package and M Aerodynamics package and Aerodynamics package |
P337A=No S715A=No S716A=No |
||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 03/2007 | 51127178182 | $594.37 | ENDED, +core | Shop at ECS Tuning | |||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 03/2007 | 51127178184 | $623.02 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 03/2007 | 66209142107 | $1.05 | Shop at ECS Tuning | ||||
| -- | Kit dummy trim | GEN 5.3.X | 1 | 03/2007 | 51125A3F540 | Shop at ECS Tuning | ||||
| -- | Stick-on label | NO PDC | 1 | 03/2007 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 03/2007 | 51127178184 | $623.02 | +core | Shop at ECS Tuning | ||
| 02 | Flap, towing eye, primed | 1 | 03/2007 | 51127178183 | $14.48 | +core | Shop at ECS Tuning | |||
| 03 | Reflector left | 1 | 03/2007 | 63147183913 | $13.17 | Shop at ECS Tuning | ||||
| 03 | Reflector right | 1 | 03/2007 | 63147183914 | $13.17 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 04 | Mount for PDC sensor, rear | PDC | 4 | 03/2007 | 51127178177 | $8.95 | Shop at ECS Tuning | |||
| 05 | Rear ventilation | 2 | 03/2007 | 64229303806 | Shop at ECS Tuning | |||||
| For vehicles with DVD changer |
S696A=Yes |
|||||||||
| 05 | Rear ventilation | 1 | 03/2007 | 09/2010 | 64226910722 | $8.23 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear ventilation, left | 1 | 03/2007 | 64226935439 | $19.07 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
