Glove box for BMW 1 Series E87 LCI 120i (2011)

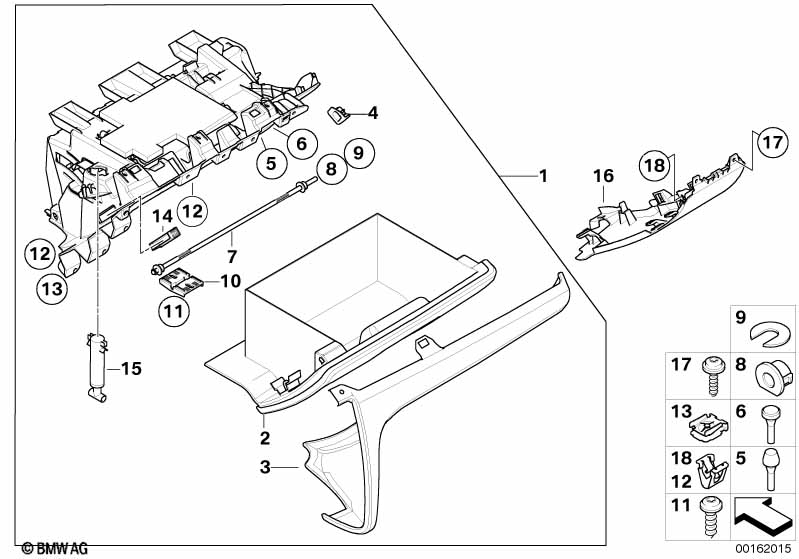

This Glove box technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 01 | Glove box | ALASKAGRAU | 1 | 51166982805 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 01 | Glove box | BEIGE | 1 | 51169121794 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Glove box | SCHWARZ | 1 | 51166982804 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 02 | Glove box lid | ALASKAGRAU | 1 | 51166982809 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 02 | Glove box lid | BEIGE | 1 | 51169121800 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 02 | Glove box lid | SCHWARZ | 1 | 51166982808 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 03 | Cover, glove box | ALASKAGRAU | 1 | 51166982811 | Shop at ECS Tuning | |||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 03 | Cover, glove box | BEIGE | 1 | 51169121799 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 03 | Cover, glove box | SCHWARZ | 1 | 51166982810 | Shop at ECS Tuning | |||||
| 04 | Lock insert, left | 1 | 51166971271 | $15.21 | Shop at ECS Tuning | |||||
| 04 | Lock insert, right | 1 | 51166971272 | $15.21 | Shop at ECS Tuning | |||||
| 05 | Rubber buffer | 2 | 51169150875 | $1.03 | Shop at ECS Tuning | |||||
| 06 | Rubber buffer | 2 | 51169150876 | $1.03 | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 51169150873 | $14.46 | Shop at ECS Tuning | |||||
| 08 | Bush | 3 | 51168214378 | $0.40 | Shop at ECS Tuning | |||||
| 09 | Circlip | 2 | 63129904300 | $0.53 | Shop at ECS Tuning | |||||
| 10 | Hinge bracket, glove box | 2 | 51167009469 | $2.13 | Shop at ECS Tuning | |||||
| 11 | Screw | 4X14 | 9 | 07149115641 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Clamp | 5 | 07146962323 | $0.86 | Shop at ECS Tuning | |||||
| 13 | Sheet metal nut, self-locking | 7 | 07146960289 | $0.25 | Shop at ECS Tuning | |||||
| 14 | Dummy cover for hotel position switch | 1 | 51167143413 | $0.65 | Shop at ECS Tuning | |||||
| 15 | Glove box damper | 1 | 51169136580 | $16.97 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 16 | Trim cover for glove compartment, outer | ALASKAGRAU | 1 | 51166982813 | Shop at ECS Tuning | |||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 16 | Trim cover for glove compartment, outer | BEIGE | 1 | 51169121804 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 16 | Trim cover for glove compartment, outer | SCHWARZ | 1 | 51166982812 | Shop at ECS Tuning | |||||
| 17 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 9 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| 18 | Clamp | 1 | 07146962323 | $0.86 | Shop at ECS Tuning | |||||
