Trim and seals for door, rear for BMW 5 Series G31 Touring LCI 530e

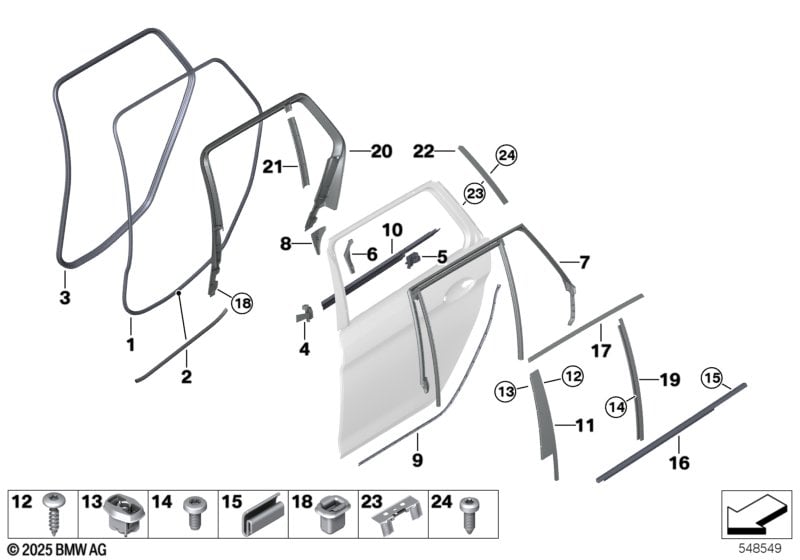

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 530e. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door weatherstrip | 2 | 51727490027 | Shop at ECS Tuning | ||||||
| 01 | Door weatherstrip | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of templates, door, rear | 1 | 01297483965 | Shop at ECS Tuning | ||||||
| Note: Observe new repair instructions 5171003! |
||||||||||
| 02 | Partial replacement, door weatherstrip | 2 | 51765B68FC5 | Shop at ECS Tuning | ||||||
| 03 | Edge protection, door, rear | 2 | 51727468733 | Shop at ECS Tuning | ||||||
| 04 | Seal, end panel, B-column, left | 1 | 51357336991 | Shop at ECS Tuning | ||||||
| 04 | Seal, end panel, B-column, right | 1 | 51357336992 | Shop at ECS Tuning | ||||||
| 05 | Seal, rear panel, edge, left | 1 | 51357336993 | Shop at ECS Tuning | ||||||
| 05 | Seal, rear panel, edge, right | 1 | 51357336994 | Shop at ECS Tuning | ||||||
| 06 | Sealing end plate rear top left | 1 | 51357181691 | Shop at ECS Tuning | ||||||
| 06 | Sealing endplate rear top right | 1 | 51357181692 | Shop at ECS Tuning | ||||||
| 07 | Window guide, left rear door | 1 | 51357336989 | Shop at ECS Tuning | ||||||
| 07 | Window guide, right rear door | 1 | 51357336990 | Shop at ECS Tuning | ||||||
| 08 | Lid window guide B-pillar rear left | 1 | 51357445037 | Shop at ECS Tuning | ||||||
| 08 | Lid window guide B-pillar rear right | 1 | 51357445038 | Shop at ECS Tuning | ||||||
| 09 | Gap seal rear door left | 1 | 51727341647 | Shop at ECS Tuning | ||||||
| 09 | Gap seal rear door right | 1 | 51727341648 | Shop at ECS Tuning | ||||||
| 10 | Window well seal, inner, door, rear lft | 1 | 51357336983 | Shop at ECS Tuning | ||||||
| 10 | Window well seal, inner, door, rear rgt | 1 | 51357336984 | Shop at ECS Tuning | ||||||
| 11 | Cover, column B, door, rear left | 1 | 51357336975 | Shop at ECS Tuning | ||||||
| 11 | Cover, column B, door, rear right | 1 | 51357336976 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line or Chrome Line exterieur or Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
P7S2A=Yes S346A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 11 | Cover, column B, door, rear left | GLANZSCHWARZ | 1 | 51357390139 | Shop at ECS Tuning | |||||
| 11 | Cover, column B, door, rear right | GLANZSCHWARZ | 1 | 51357390140 | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | L = 16 MM | 1 | 07147442844 | Shop at ECS Tuning | |||||
| 13 | Clip | 4 | 51337177961 | Shop at ECS Tuning | ||||||
| 14 | Fillister head screw | M4X8-8.8-ZNNIV | 6 | 51257933442 | Shop at ECS Tuning | |||||
| 15 | Clamp | 2 | 07147229342 | Shop at ECS Tuning | ||||||
| 16 | Window well strip, outer, door, rear lft | CHROME | 1 | 51357381279 | Shop at ECS Tuning | |||||
| 16 | Window well strip, outer, door, rear rgt | CHROME | 1 | 51357381280 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 16 | Window well strip, outer, door, rear lft | ALU SATINIERT | 1 | 51357390181 | Shop at ECS Tuning | |||||
| 16 | Window well strip, outer, door, rear rgt | ALU SATINIERT | 1 | 51357390182 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 16 | Window well strip, outer, door, rear lft | GLANZSCHWARZ | 1 | 51357404031 | Shop at ECS Tuning | |||||
| 16 | Window well strip, outer, door, rear rgt | GLANZSCHWARZ | 1 | 51357404032 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 16 | Window well strip, outer, door, rear lft | CHROME | 1 | 51357381279 | Shop at ECS Tuning | |||||
| 16 | Window well strip, outer, door, rear rgt | CHROME | 1 | 51357381280 | Shop at ECS Tuning | |||||
| 17 | Window frame cover, rear left door | CHROME | 1 | 51357336979 | Shop at ECS Tuning | |||||
| 17 | Cover, window frame, right rear door | CHROME | 1 | 51357336980 | Shop at ECS Tuning | |||||
| For vehicles with Indiv. Ext. Line, burnished aluminium |
S3MBA=Yes |
|||||||||
| 17 | Window frame cover, rear left door | ALU SATINIERT | 1 | 51357390163 | Shop at ECS Tuning | |||||
| 17 | Cover, window frame, right rear door | ALU SATINIERT | 1 | 51357390164 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 17 | Window frame cover, rear left door | GLANZSCHWARZ | 1 | 51357390161 | Shop at ECS Tuning | |||||
| 17 | Cover, window frame, right rear door | GLANZSCHWARZ | 1 | 51357390162 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 17 | Window frame cover, rear left door | CHROME | 1 | 51357336979 | Shop at ECS Tuning | |||||
| 17 | Cover, window frame, right rear door | CHROME | 1 | 51357336980 | Shop at ECS Tuning | |||||
| 18 | Plug-in attachment with sealing disk | 4 | 51416991309 | Shop at ECS Tuning | ||||||
| 19 | Window guide web cover left | 1 | 51357336977 | Shop at ECS Tuning | ||||||
| 19 | Window guide web cover right | 1 | 51357336978 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line or Chrome Line exterieur or Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
P7S2A=Yes S346A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 19 | Window guide web cover left | GLANZSCHWARZ | 1 | 51357390251 | Shop at ECS Tuning | |||||
| 19 | Window guide web cover right | GLANZSCHWARZ | 1 | 51357390252 | Shop at ECS Tuning | |||||
| 20 | Cover, window frame, rear left | 1 | 51357385069 | Shop at ECS Tuning | ||||||
| 20 | Cover, window frame, rear right | 1 | 51357385070 | Shop at ECS Tuning | ||||||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
|||||||||
| 20 | Cover, window frame, rear left | SSR | 1 | 51357385071 | Shop at ECS Tuning | |||||
| 20 | Cover, window frame, rear right | SSR | 1 | 51357385072 | Shop at ECS Tuning | |||||
| 21 | Window guide web, left | 1 | 51357391585 | Shop at ECS Tuning | ||||||
| 21 | Window guide web, right | 1 | 51357391586 | Shop at ECS Tuning | ||||||
| 22 | Trim cover, window frame, C-pillar, left | 1 | 51357337001 | Shop at ECS Tuning | ||||||
| 22 | Trim cover, window frame C-pillar, right | 1 | 51357337002 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line or Chrome Line exterieur or Indiv. Ext. Line, burnished aluminium or High gloss shadow line |
P7S2A=Yes S346A=Yes S3MBA=Yes S760A=Yes |
|||||||||
| 22 | Cover,wndw frame,C-column,door rear lft | GLANZSCHWARZ | 1 | 51357419875 | Shop at ECS Tuning | |||||
| 22 | Cover,wndw frame,C-column,door rear rght | GLANZSCHWARZ | 1 | 51357419876 | Shop at ECS Tuning | |||||
| 23 | Clip, trim cover, C-pillar | 6 | 07147256487 | Shop at ECS Tuning | ||||||
| 24 | Torx sheet-metal screw | ISA ST4,2X13 | 6 | 07119907470 | Shop at ECS Tuning | |||||
