Mounting parts, center console for BMW 1 Series E87 LCI 123d (2011)
This Mounting parts, center console technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior moldings kaschmir-silver |
S4B1A=Yes |
|||||||||
| 01 | Cover tray/ashtray kaschmir-silber | 1 | 51169121714 | $83.46 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips marrakesch-braun met. |
S4CLA=Yes |
|||||||||
| 01 | Cover, ashtray/bin marrakeschbraun | 1 | 09/2008 | 51169214748 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 01 | Cover, ashtray/tray, high gloss, black | 1 | 51169121712 | $83.46 | Shop at ECS Tuning | |||||
| For vehicles with Int. moldings alumin."Akzentschliff" |
S4B3A=Yes |
|||||||||
| 01 | Cover, ashtray/tray alu accent polished | 1 | 51169122668 | Shop at ECS Tuning | ||||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 01 | Cover, ashtray/tray alu glacier-silber | 1 | 51168037467 | $99.27 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 01 | Cover tray/ashtray poplar grain, gray | 1 | 51169121710 | $246.33 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 01 | Ashtray finisher/Tray nutwood | 1 | 51169143747 | $246.33 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 01 | Cover, ashtray/bin, satinsilber matt | 1 | 09/2008 | 51169197189 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers silver |
S4AKA=Yes |
|||||||||
| 01 | Ashtray finisher/Tray decor silver front | 1 | 51167129141 | Shop at ECS Tuning | ||||||
| 02 | Body nut | ST4.2 ZNS | 2 | 51457032762 | $0.39 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapp.screw w collar | ISA 4,2X19 | 2 | 07148263913 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package |
S441A=No |
|||||||||
| 04 | Utility box, front | 1 | 51167136190 | $15.34 | Shop at ECS Tuning | |||||
| 05 | Rubber insert, oddments tray | 1 | 51167154854 | $7.52 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Interior strips marrakesch-braun met. |
S441A=Yes S4CLA=Yes |
|||||||||
| 06 | Ash tray, marrakeschbraun | 1 | 09/2008 | 51169215179 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood version, poplar grain, gray and Smoker package |
S4ASA=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, wood poplar grain, gray | 1 | 51169147981 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers silver and Smoker package |
S4AKA=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, decor silver | 1 | 51166954113 | Shop at ECS Tuning | ||||||
| For vehicles with Int. mouldings aluminium glacier-silver and Smoker package |
S4MGA=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, aluminium glacier-silver | 1 | 51168037469 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Interior moldings kaschmir-silver and Smoker package |
S4B1A=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, kaschmir-silber | 1 | 51169137624 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim walnut light and Smoker package |
S4A3A=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, nutwood | 1 | 51169143755 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt and Smoker package |
S4CGA=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, satinsilber matt | 1 | 09/2008 | 51169197204 | Shop at ECS Tuning | |||||
| For vehicles with Int. moldings alumin."Akzentschliff" and Smoker package |
S4B3A=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, aluminum accent polished | 1 | 51169137621 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss and Smoker package |
S4ATA=Yes S441A=Yes |
|||||||||
| 06 | Ashtray, high-gloss, black | 1 | 51169137623 | $177.57 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 07 | Ashtray insert | 1 | 51167078573 | $7.58 | Shop at ECS Tuning | |||||
| 08 | Illuminated ring, transparent | 1 | 51168222182 | $1.20 | Shop at ECS Tuning | |||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 09 | Socket mount | BEIGE | 1 | 51169110459 | $38.09 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AL=Yes AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 09 | Socket mount | SCHWARZ | 1 | 51169110457 | $38.09 | Shop at ECS Tuning | ||||
| 10 | Stopper plug-in socket | 1 | 61349316116 | Shop at ECS Tuning | ||||||
| For vehicles with Interior moldings kaschmir-silver |
S4B1A=Yes |
|||||||||
| 11 | Cover, Gearsh.Mechanism, kaschmir-silber | 1 | 51169121724 | $58.10 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Interior strips marrakesch-braun met. |
S4CLA=Yes |
|||||||||
| 11 | Trim, shifter, marrakeschbraun | 1 | 09/2008 | 51169214750 | ENDED | Shop at ECS Tuning | ||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 11 | Cover, shifter, high-gloss, black | 1 | 51169121720 | $58.10 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Int. moldings alumin."Akzentschliff" |
S4B3A=Yes |
|||||||||
| 11 | Cov,Gearsh.Mechanism, alu accent polish | 1 | 51169122663 | Shop at ECS Tuning | ||||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 11 | Trim pce,gearsh.mech., alu.glac.-silber | 1 | 51168037463 | $94.13 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 11 | Cov. Gearsh.Mechanism,woodgr poplar,gray | 1 | 51169121716 | $186.60 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 11 | Cover, gear shifting, nutwood | 1 | 51169128650 | $186.60 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 11 | Cover, gear shifting, satinsilber matt | 1 | 09/2008 | 51169197191 | Shop at ECS Tuning | |||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Interior trim finishers silver |
S4AKA=Yes |
|||||||||
| 11 | Cover, gear shifting, decor silver | 1 | 51169128648 | Shop at ECS Tuning | ||||||
| On vehicles with a central user input unit (controller) the recess for the wire must be made in the trim panel (see repair instructions). |
||||||||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 12 | Preselect.lever cover f steptronic | 1 | 51167078567 | $74.29 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business or Navigation system Professional and beige |
S606A=Yes S609A=Yes A5=Yes |
|||||||||
| 13 | Cover, central operating unit | BEIGE | 1 | 09/2008 | 51169181075 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business or Navigation system Professional and alaska-grey or anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
S606A=Yes S609A=Yes AL=Yes AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 13 | Cover, central operating unit | SCHWARZ | 1 | 09/2008 | 51169181071 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business or Navigation system Professional |
S606A=Yes S609A=Yes |
|||||||||
| 14 | Clamp | 5 | 07147073406 | $0.74 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt for plastic material | 4X14 ZNT | 4 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 16 | Trim, shifter/tray, woodgrain, poplar | 1 | 51169147977 | $443.06 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 16 | Cover Gear shifting/Storage comp.Nutwood | 1 | 51169147961 | $443.06 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fine wood version, poplar grain, gray and Smoker package |
S4ASA=Yes S441A=Yes |
|||||||||
| 17 | Trim, shifter/ashtray, woodgrain, poplar | 1 | 51169162773 | $604.86 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package |
S4A3A=Yes S441A=Yes |
|||||||||
| 17 | Cover Gear shifting/Ashtray, nutwood | 1 | 51169162769 | $604.86 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d Mounting parts, center console?

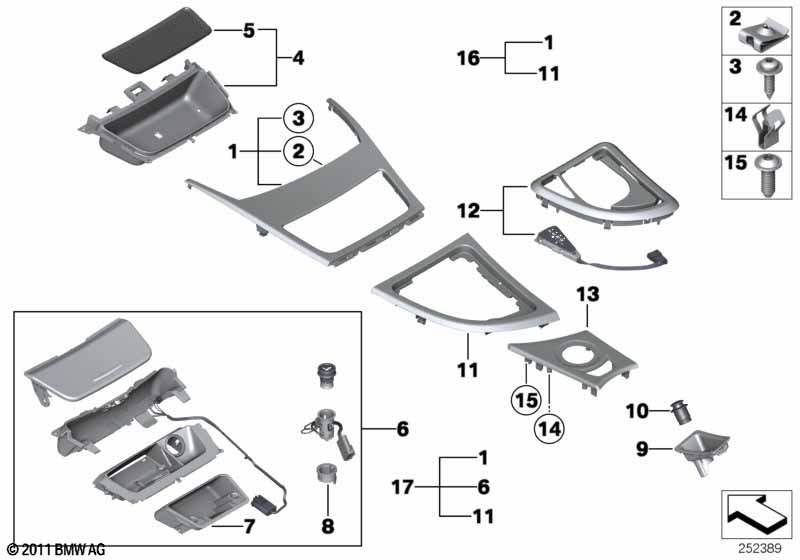

- This technical diagram illustrates the Mounting parts, center console within the Vehicle trim group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Cover tray/ashtray kaschmir-silber (Part #51169121714).
