Glazing for BMW 6 Series G32 GT 620dX (2020)

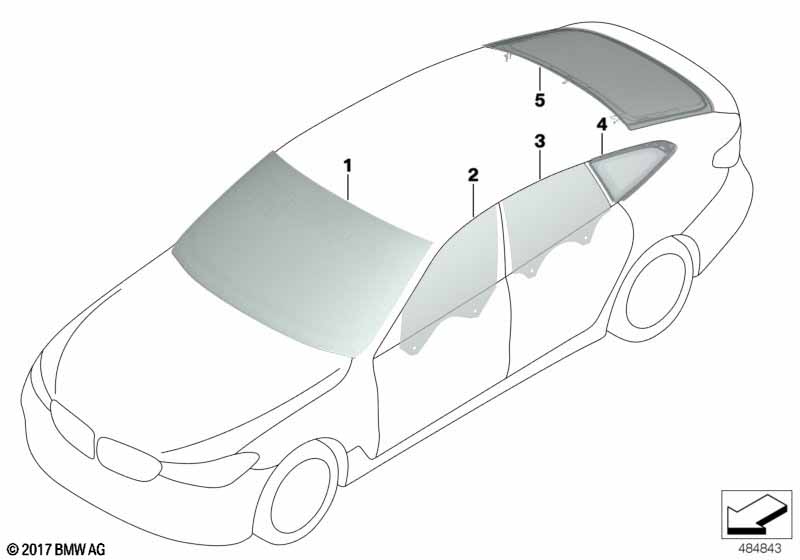

This Glazing technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China and Driving Assistant and Driving Assistant Plus and Active Guard and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5ASA=No S5ATA=No S5AVA=No S5DFA=No S610A=No |
|||||||||
| 01 | Green windshield | 1 | 51317412643 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317412641 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, left | 1 | 51317412653 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, right | 1 | 51317412654 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1321MM | 1 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving Assistant and Driving Assistant Plus and Active Guard and Active cruise control+Stop&Go function and Head-up display |
L8AAA=No S5ASA=Yes S5ATA=Yes S5AVA=Yes S5DFA=Yes S610A=Yes |
|||||||||
| 01 | Green windshield | KAFAS/HUD | 1 | 51317412647 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317412641 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, left | 1 | 51317412653 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, right | 1 | 51317412654 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1321MM | 1 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving Assistant and Driving Assistant Plus and Active Guard and Active cruise control+Stop&Go function and Head-up display |
L8AAA=No S5ASA=Yes S5ATA=Yes S5AVA=Yes S5DFA=Yes S610A=No |
|||||||||
| 01 | Green windshield | KAFAS | 1 | 51317412644 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317412641 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, left | 1 | 51317412653 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, right | 1 | 51317412654 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1321MM | 1 | 51489475105 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Driving Assistant and Driving Assistant Plus and Active Guard and Active cruise control+Stop&Go function and Head-up display |
L8AAA=Yes S5ASA=No S5ATA=No S5AVA=No S5DFA=No S610A=Yes |
|||||||||
| 01 | Green windshield | HUD | 1 | 51317412646 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cover, windshield, top | 1 | 51317412641 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, left | 1 | 51317412653 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cover, windshield, right | 1 | 51317412654 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield - windscreen | L=1465MM | 1 | 51487458549 | Shop at ECS Tuning | |||||
| -- | Sound insulation windshield | L=1321MM | 1 | 51489475105 | NoS | Shop at ECS Tuning | ||||
| 02 | Side window, green, door, front left | 1 | 51337379829 | Shop at ECS Tuning | ||||||
| 02 | Side window, green, door, front right | 1 | 51337379830 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 03 | Side window, green, door, rear left | 1 | 51357379831 | Shop at ECS Tuning | ||||||
| 03 | Side window, green, door, rear right | 1 | 51357379832 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 03 | Side window, green, door, rear left | SSG | 1 | 51357382563 | Shop at ECS Tuning | |||||
| 03 | Side window, green, door, rear right | SSG | 1 | 51357382564 | Shop at ECS Tuning | |||||
| For vehicles with Sun protection glazing |
S420A=No |
|||||||||
| 04 | Side window, green fixed, rear left | 1 | 51378495575 | Shop at ECS Tuning | ||||||
| 04 | Side window, green fixed, rear right | 1 | 51378495576 | Shop at ECS Tuning | ||||||
| For vehicles with Sun protection glazing |
S420A=Yes |
|||||||||
| 04 | Side window, green fixed, rear left | SSG | 1 | 51378495577 | Shop at ECS Tuning | |||||
| 04 | Side window, green fixed, rear right | SSG | 1 | 51378495578 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=No S420A=Yes |
|||||||||
| 05 | Rear window green | SSG | 1 | 51317401282 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| -- | Bump stop | 11 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Hook&loop fastener | 10 X 20 | 4 | 51318269160 | $0.63 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Sun protection glazing |
L8AAA=Yes S420A=No |
|||||||||
| 05 | Rear window green | ESG | 1 | 51317401462 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192180001 | Shop at ECS Tuning | |||||
| -- | Bump stop | 11 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Hook&loop fastener | 10 X 20 | 4 | 51318269160 | $0.63 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
