Door trim panel, front for BMW 1 Series E87 LCI 118i (2009)

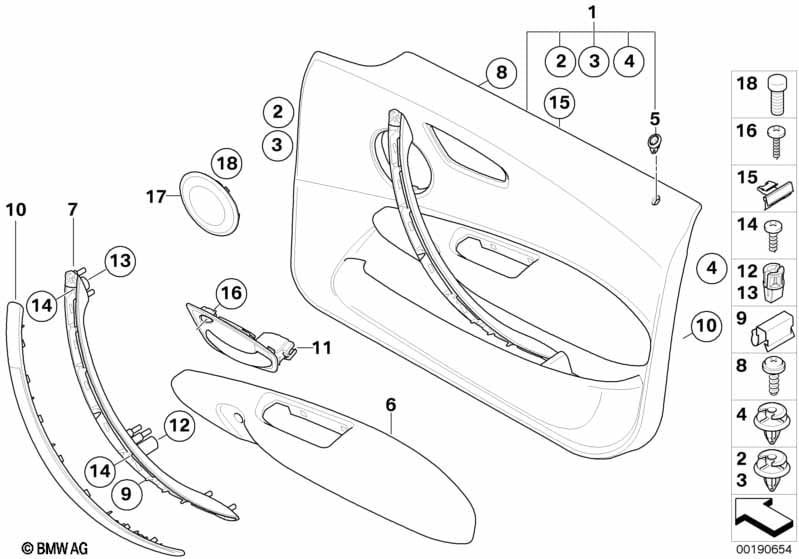

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please observe PuMA measure 34991931 for creaking noises in door trim panel (map pocket) |
|||||||||
| For vehicles with Cloth "Elektra"/alaska-grey |
EAAL=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ALASKAGRAU | 1 | 09/2010 | 51419121143 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, fabric, front right | ALASKAGRAU | 1 | 09/2010 | 51419121144 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Door panel, leather, front left | ALASKAGRAU | 1 | 51417224347 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining leather front right | ALASKAGRAU | 1 | 51417224348 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Door panel, leather, front left | LEMON | 1 | 51419121169 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining leather front right | LEMON | 1 | 51419121170 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/ black |
LWSW=Yes |
|||||||||
| 01 | Door panel, leather, front left | SCHWARZ | 1 | 51417224345 | Shop at ECS Tuning | |||||
| 01 | Door lining leather front right | SCHWARZ | 1 | 51417224346 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Network"/cranberry-red |
AUF8=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | CRANBERRYROT | 1 | 51419121149 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | CRANBERRYROT | 1 | 51419121150 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | SCHWARZ | 1 | 51418037411 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, fabric, front right | SCHWARZ | 1 | 51418037412 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Door panel, leather, front left | BEIGE | 1 | 51417224349 | Shop at ECS Tuning | |||||
| 01 | Door lining leather front right | BEIGE | 1 | 51417224350 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Door panel, leather, front left | TERRA | 1 | 51419121165 | +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather front right | TERRA | 1 | 51419121166 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51419121145 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51419121146 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ORANGE | 1 | 51419121153 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ORANGE | 1 | 51419121154 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51416975305 | Shop at ECS Tuning | |||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51416975306 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ACTIVE BLUE | 1 | 51419121147 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ACTIVE BLUE | 1 | 51419121148 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Door trim panel, fabric, front left | ANTHRAZIT | 1 | 51419121151 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door trim panel, fabric, front right | ANTHRAZIT | 1 | 51419121152 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clip Natur | 16 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Clip | GRAU | 8 | 51437001492 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Clip beige | 2 | 07147133419 | $4.49 | Shop at ECS Tuning | |||||
| 05 | Cover, locking button left | 1 | 51417122659 | Shop at ECS Tuning | ||||||
| 05 | Cover, locking button right | 1 | 51417122660 | Shop at ECS Tuning | ||||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | ALASKAGRAU | 1 | 51419121173 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | ALASKAGRAU | 1 | 51419121174 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 15 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | BEIGE | 1 | 51419121175 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | BEIGE | 1 | 51419121176 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 15 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | SCHWARZ | 1 | 51417839225 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | SCHWARZ | 1 | 51417839226 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 15 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black/blue' or Leather, "Boston/black/blue" |
GCNL=Yes LWNL=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | SCHWARZ/BLAU | 1 | 51418048853 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | SCHWARZ/BLAU | 1 | 51418048854 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 1 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Leather "Boston"/ black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes LWSW=Yes |
|||||||||
| 06 | Armrest, vinyl, front left | SCHWARZ | 1 | 51416975307 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Armrest, vinyl, front right | SCHWARZ | 1 | 51416975308 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 15 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 07 | Door handle, inside, left | ALASKAGRAU | 1 | 51416980093 | $15.24 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 07 | Door handle, inside, right | ALASKAGRAU | 1 | 51416980094 | $15.24 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 07 | Door handle, inside, left | BEIGE | 1 | 51419121183 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Door handle, inside, right | BEIGE | 1 | 51419121184 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 07 | Door handle, inside, left | SCHWARZ | 1 | 51416975351 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 07 | Door handle, inside, right | SCHWARZ | 1 | 51416975352 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Torx-bolt for plastic material | ISA 4X12MM | 42 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Clamp / wiring holder | 10 | 07147127892 | $0.38 | Shop at ECS Tuning | |||||
| 10 | Trim, inner door handle silver left | 1 | 51419128805 | Shop at ECS Tuning | ||||||
| 10 | Trim, inner door handle silver right | 1 | 51419128806 | Shop at ECS Tuning | ||||||
| For vehicles with Interior moldings kaschmir-silver |
S4B1A=Yes |
|||||||||
| 10 | Trim, int dr handle, kaschmir-silber L | 1 | 51416978139 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, kaschmir-silber R | 1 | 51416978140 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 10 | Trim, inner dr handle, satinsilber, left | 1 | 09/2008 | 51417230685 | Shop at ECS Tuning | |||||
| 10 | Trim, inner dr handle, satinsilber, rt | 1 | 09/2008 | 51417230686 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 10 | Trim, int dr handle, high-gloss black, L | 1 | 51416987537 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, high-gloss black, R | 1 | 51416987538 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 10 | Trim int dr handle, alu glaciersil. left | 1 | 51418037455 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim int dr handle alu glaciersil. right | 1 | 51418037456 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 10 | Trim, int dr handle, light walnut, left | 1 | 51416978143 | $134.87 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, light walnut, right | 1 | 51416978144 | $134.87 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 10 | Trim, int dr handle, gray poplar, left | 1 | 51419140361 | $134.87 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, gray poplar, right | 1 | 51419140362 | $134.87 | Shop at ECS Tuning | |||||
| For vehicles with Int. moldings alumin."Akzentschliff" |
S4B3A=Yes |
|||||||||
| 10 | Trim, int dr handle, pol. alu accent, L | 1 | 51416978141 | $56.56 | Shop at ECS Tuning | |||||
| 10 | Trim, int dr handle, pol. alu accent, R | 1 | 51416978142 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 11 | Door handle, inside left | ALASKAGRAU | 1 | 51216980095 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Door handle inner right | ALASKAGRAU | 1 | 51216980096 | $17.32 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 11 | Door handle, inside left | BEIGE | 1 | 51419121185 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Door handle inner right | BEIGE | 1 | 51419121186 | $17.32 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 11 | Door handle, inside left | SCHWARZ | 1 | 51416978137 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Door handle inner right | SCHWARZ | 1 | 51416978138 | $17.32 | Shop at ECS Tuning | ||||
| 12 | Expanding nut | 8X11,7X2 | 2 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | 10X 9,7X 2,1 | 2 | 51417028573 | $0.79 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw with collar | ISA 35X5 | 4 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 15 | Clamp | 10 | 51419123509 | $0.54 | Shop at ECS Tuning | |||||
| 16 | Torx-bolt for plastic material | 4X14 ZNT | 4 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | ALASKAGRAU | 1 | 51416980091 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | ALASKAGRAU | 1 | 51416980092 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | BEIGE | 1 | 51419121187 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | BEIGE | 1 | 51419121188 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP and beige |
S676A=Yes S677A=Yes A5=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | BEIGE | 1 | 51419121189 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | BEIGE | 1 | 51419121190 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP and alaska-grey |
S676A=Yes S677A=Yes AL=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | ALASKAGRAU | 1 | 51416980097 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | ALASKAGRAU | 1 | 51416980098 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | SCHWARZ | 1 | 51416975347 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | SCHWARZ | 1 | 51416975348 | $10.51 | Shop at ECS Tuning | ||||
| 17 | Trim, mid-range speaker right | SCHWARZ | 1 | 51416975350 | $10.51 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP and anthracite or beige or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
S676A=Yes S677A=Yes AT=Yes B4=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 17 | Trim, mid-range speaker left | SCHWARZ | 1 | 51416975349 | $10.51 | Shop at ECS Tuning | ||||
| 18 | Threaded bolt | 6 | 51417122657 | $1.11 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
