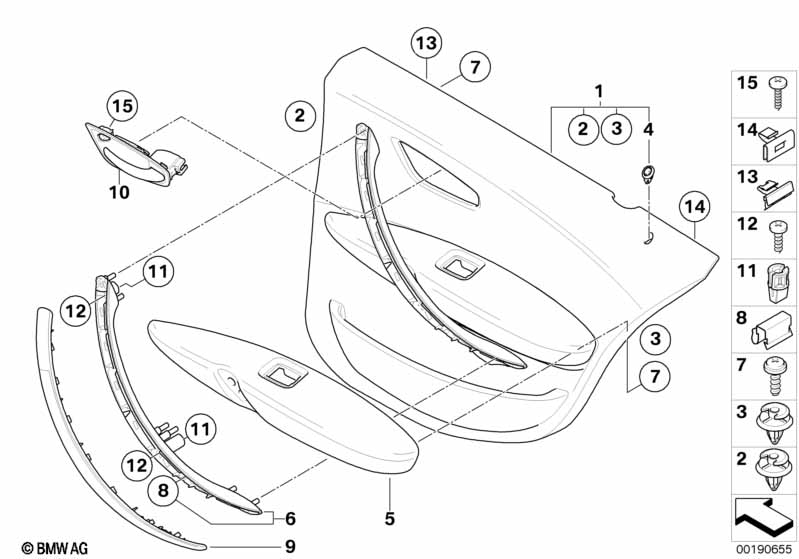

Door trim, rear for BMW 1 Series E87 LCI 118i (2009)
This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please observe PuMA measure 34991931 for creaking noises in door trim panel (map pocket) |
|||||||||
| For vehicles with Fabric/leather 'Pearlpoint/orange' |
FHF5=Yes |
|||||||||
| 01 | Door lining cloth rear left | ORANGE | 1 | 51419121201 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ORANGE | 1 | 51419121202 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/alaska-grey |
LWAL=Yes |
|||||||||
| 01 | Door lining leather rear left | ALASKAGRAU | 1 | 51427224355 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | ALASKAGRAU | 1 | 51427224356 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/anthracite |
AUAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51419121193 | Shop at ECS Tuning | |||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51419121194 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/cranberry-red |
AUF8=Yes |
|||||||||
| 01 | Door lining cloth rear left | CRANBERRYROT | 1 | 51419121197 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | CRANBERRYROT | 1 | 51419121198 | +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/lemon |
LWB7=Yes |
|||||||||
| 01 | Door lining leather rear left | LEMON | 1 | 51419121217 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | LEMON | 1 | 51419121218 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Fabric "Network"/Monaco blue |
AUD9=Yes |
|||||||||
| 01 | Door lining cloth rear left | ACTIVE BLUE | 1 | 51419121195 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ACTIVE BLUE | 1 | 51419121196 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather 'Pearlpoint/anthracite' |
FHAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51419121199 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51419121200 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston"/ black |
LWSW=Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427224353 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427224354 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Elektra"/anthracite |
EAAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51426975319 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51426975320 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Boston/terra" |
LWB8=Yes |
|||||||||
| 01 | Door lining leather rear left | TERRA | 1 | 51419121213 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | TERRA | 1 | 51419121214 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather "Boston"/beige |
LWA5=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427224357 | Shop at ECS Tuning | |||||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427224358 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Elektra"/alaska-grey |
EAAL=Yes |
|||||||||
| 01 | Door lining cloth rear left | ALASKAGRAU | 1 | 09/2010 | 51419121191 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ALASKAGRAU | 1 | 09/2010 | 51419121192 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 01 | Door lining cloth rear left | SCHWARZ | 1 | 51428037415 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | SCHWARZ | 1 | 51428037416 | Shop at ECS Tuning | |||||
| 02 | Clip Natur | 16 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Clip beige | 2 | 07147133419 | $4.49 | Shop at ECS Tuning | |||||
| 04 | Cover, locking button left | 1 | 51417122659 | Shop at ECS Tuning | ||||||
| 04 | Cover, locking button right | 1 | 51417122660 | Shop at ECS Tuning | ||||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 05 | Armrest in imitation leather, rear left | ALASKAGRAU | 1 | 51419121221 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Armrest in imitation leather, rear right | ALASKAGRAU | 1 | 51419121222 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 12 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 05 | Armrest in imitation leather, rear left | BEIGE | 1 | 51419121223 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Armrest in imitation leather, rear right | BEIGE | 1 | 51419121224 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 12 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with Fabric/Sensatec 'Flashpoint/black' |
GCSW=Yes |
|||||||||
| 05 | Armrest in imitation leather, rear left | SCHWARZ | 1 | 51428037417 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Armrest in imitation leather, rear right | SCHWARZ | 1 | 51428037418 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 12 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Leather "Boston"/ black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes LWSW=Yes |
|||||||||
| 05 | Armrest in imitation leather, rear left | SCHWARZ | 1 | 51426975321 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 05 | Armrest in imitation leather, rear right | SCHWARZ | 1 | 51426975322 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 12 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 06 | Door handle, inside, left | ALASKAGRAU | 1 | 51416980093 | $15.24 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 06 | Door handle, inside, right | ALASKAGRAU | 1 | 51416980094 | $15.24 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 06 | Door handle, inside, left | BEIGE | 1 | 51419121183 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Door handle, inside, right | BEIGE | 1 | 51419121184 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 06 | Door handle, inside, left | SCHWARZ | 1 | 51416975351 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Door handle, inside, right | SCHWARZ | 1 | 51416975352 | $15.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA 4X12MM | 6 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Torx-bolt for plastic material | ISA 4X12MM | 36 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 08 | Clamp / wiring holder | 10 | 07147127892 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Trim, inner door handle silver left | 1 | 51419128805 | Shop at ECS Tuning | ||||||
| 09 | Trim, inner door handle silver right | 1 | 51419128806 | Shop at ECS Tuning | ||||||
| For vehicles with Interior moldings kaschmir-silver |
S4B1A=Yes |
|||||||||
| 09 | Trim, int dr handle, kaschmir-silber L | 1 | 51416978139 | $56.56 | Shop at ECS Tuning | |||||
| 09 | Trim, int dr handle, kaschmir-silber R | 1 | 51416978140 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 09 | Trim, int dr handle, gray poplar, left | 1 | 51419140361 | $134.87 | Shop at ECS Tuning | |||||
| 09 | Trim, int dr handle, gray poplar, right | 1 | 51419140362 | $134.87 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 09 | Trim, int dr handle, light walnut, left | 1 | 51416978143 | $134.87 | Shop at ECS Tuning | |||||
| 09 | Trim, int dr handle, light walnut, right | 1 | 51416978144 | $134.87 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 09 | Trim, int dr handle, high-gloss black, L | 1 | 51416987537 | $56.56 | Shop at ECS Tuning | |||||
| 09 | Trim, int dr handle, high-gloss black, R | 1 | 51416987538 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Int. moldings alumin."Akzentschliff" |
S4B3A=Yes |
|||||||||
| 09 | Trim, int dr handle, pol. alu accent, L | 1 | 51416978141 | $56.56 | Shop at ECS Tuning | |||||
| 09 | Trim, int dr handle, pol. alu accent, R | 1 | 51416978142 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 09 | Trim, inner dr handle, satinsilber, left | 1 | 09/2008 | 51417230685 | Shop at ECS Tuning | |||||
| 09 | Trim, inner dr handle, satinsilber, rt | 1 | 09/2008 | 51417230686 | Shop at ECS Tuning | |||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 09 | Trim int dr handle, alu glaciersil. left | 1 | 51418037455 | $56.56 | Shop at ECS Tuning | |||||
| 09 | Trim int dr handle alu glaciersil. right | 1 | 51418037456 | $56.56 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 10 | Door handle, inside left | ALASKAGRAU | 1 | 51216980095 | $17.32 | Shop at ECS Tuning | ||||
| 10 | Door handle inner right | ALASKAGRAU | 1 | 51216980096 | $17.32 | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 10 | Door handle, inside left | BEIGE | 1 | 51419121185 | $17.32 | Shop at ECS Tuning | ||||
| 10 | Door handle inner right | BEIGE | 1 | 51419121186 | $17.32 | Shop at ECS Tuning | ||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 10 | Door handle, inside left | SCHWARZ | 1 | 51416978137 | $17.32 | Shop at ECS Tuning | ||||
| 10 | Door handle inner right | SCHWARZ | 1 | 51416978138 | $17.32 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | 8X11,7X2 | 4 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw with collar | ISA 35X5 | 4 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 13 | Clamp | 6 | 51419123509 | $0.54 | Shop at ECS Tuning | |||||
| 14 | Clamp | 0,8MM | 4 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 15 | Torx-bolt for plastic material | 4X14 ZNT | 2 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
