Trim panel A- / B- / C-Column for BMW 1 Series E87 LCI 118i (2009)

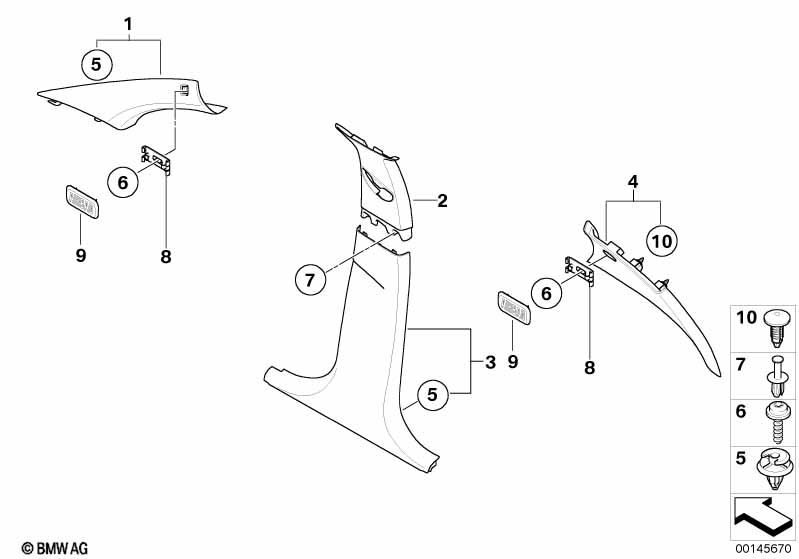

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Left column A cover | ANTHRAZIT | 1 | 51438036295 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | ANTHRAZIT | 1 | 51438036296 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 01 | Left column A cover | BEIGE | 1 | 51437120537 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | BEIGE | 1 | 51437120538 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 01 | Left column A cover | ALASKAGRAU | 1 | 51437120535 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | ALASKAGRAU | 1 | 51437120536 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Cover, B-column upper left | ANTHRAZIT | 1 | 51438036297 | Shop at ECS Tuning | |||||
| 02 | Cover, B-column upper right | ANTHRAZIT | 1 | 51438036298 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 02 | Cover, B-column upper left | BEIGE | 1 | 51437120543 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover, B-column upper right | BEIGE | 1 | 51437120544 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 02 | Cover, B-column upper left | ALASKAGRAU | 1 | 51437120541 | Shop at ECS Tuning | |||||
| 02 | Cover, B-column upper right | ALASKAGRAU | 1 | 51437120542 | Shop at ECS Tuning | |||||
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 03 | Cover, B-column bottom left | ALASKAGRAU | 1 | 51439128873 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or lemon or terra or Monaco blue or orange/black or cranberry-red or Black |
AT=Yes B7=Yes B8=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 03 | Cover, B-column bottom left | SCHWARZ | 1 | 51439128869 | Shop at ECS Tuning | |||||
| 03 | Cover, B-column bottom right | SCHWARZ | 1 | 51439128870 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Cover column C left | ANTHRAZIT | 1 | 51438036299 | Shop at ECS Tuning | |||||
| 04 | Cover column C right | ANTHRAZIT | 1 | 51438036300 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 04 | Cover column C left | BEIGE | 1 | 51437120549 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover column C right | BEIGE | 1 | 51437120550 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 04 | Cover column C left | ALASKAGRAU | 1 | 51437120547 | Shop at ECS Tuning | |||||
| 04 | Cover column C right | ALASKAGRAU | 1 | 51437120548 | Shop at ECS Tuning | |||||
| 05 | Clip Natur | 8 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Torx bolt | ST4,8X32 | 4 | 07149112637 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 4 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 08 | Cover cap support | 4 | 51437006830 | $0.64 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 09 | Cover cap "Airbag" | SCHWARZ | 4 | 51432251367 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and beige or terra |
S775A=No A5=Yes B8=Yes |
|||||||||
| 09 | Cover cap "Airbag" | BEIGE | 4 | 51437120774 | $1.29 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 09 | Cover cap "Airbag" | ALASKAGRAU | 4 | 51437120773 | $1.29 | Shop at ECS Tuning | ||||
| 10 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
