Headlining for BMW 1 Series E87 LCI 123d (2011)

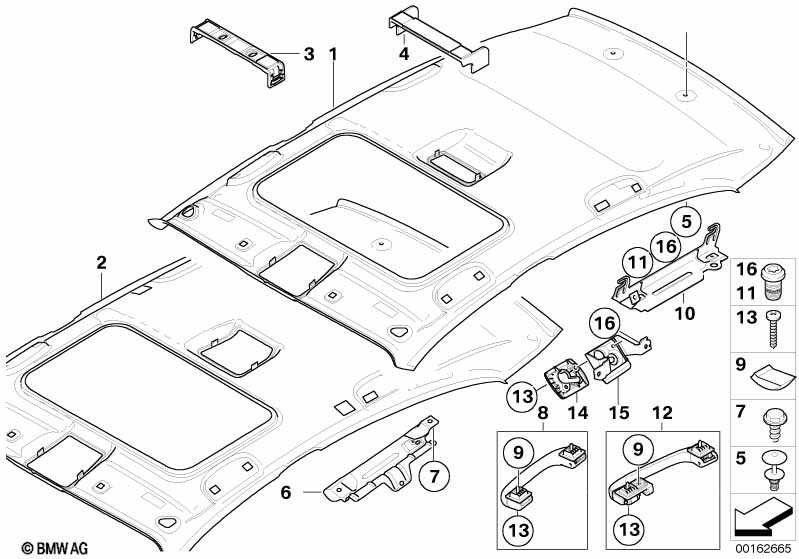

This Headlining technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 123d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Glass roof, electrical and Light package |
S403A=Yes S563A=Yes |
||||||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | ANTHRAZIT | 1 | 51448036328 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and sonora or beige or terra or havanna or beige |
S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | BEIGE | 1 | 51446956014 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 01 | Headlining, lift-up & slide-back sunroof | ALASKAGRAU | 1 | 51446956013 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Headlining anthracite |
S302A=Yes S775A=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | ANTHRAZIT | 1 | 51448036453 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite and sonora or beige or terra or havanna or beige |
S302A=Yes S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | BEIGE | 1 | 51446956016 | +core | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S302A=Yes S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 02 | Headlining, lift-up & slide-back sunroof | ALASKAGRAU | 1 | 51446956015 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Alarm system |
S302A=Yes |
|||||||||
| 03 | Bracket headliner sliding sunroof rear | 1 | 51447145719 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system |
S302A=No |
|||||||||
| 04 | Bracket headliner sliding sunroof rear | 1 | 51446953690 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 05 | Expanding rivet | SCHWARZ | 2 | 51448036315 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and sonora or beige or terra or havanna or beige |
S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 05 | Expanding rivet | BEIGE | 2 | 51446953706 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 05 | Expanding rivet | ALASKAGRAU | 2 | 51446953705 | Shop at ECS Tuning | |||||
| 06 | Bracket, front left grab handle | 1 | 51167111001 | $4.51 | Shop at ECS Tuning | |||||
| 06 | Bracket, front right grab handle | 1 | 51167111002 | $4.51 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | ST5,5X13 SW | 6 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 08 | Grab handle, front | SCHWARZ | 2 | 51169143523 | $14.25 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and sonora or beige or terra or havanna or beige |
S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 08 | Grab handle, front | BEIGE | 2 | 51169143521 | $12.45 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 08 | Grab handle, front | ALASKAGRAU | 2 | 51169143520 | $9.94 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 09 | Covering cap for grip | SCHWARZ | 8 | 51167897902 | $0.62 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and sonora or beige or terra or havanna or beige |
S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 09 | Covering cap for grip | BEIGE | 8 | 51166956434 | $0.46 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 09 | Covering cap for grip | ALASKAGRAU | 8 | 51166956433 | $0.46 | Shop at ECS Tuning | ||||
| 10 | Grab handle bracket, rear left | 1 | 51167119419 | Shop at ECS Tuning | ||||||
| 10 | Grab handle bracket, rear right | 1 | 51167119420 | Shop at ECS Tuning | ||||||
| 11 | Oval-head screw with anti-rotation lock | ISA M6X40 | 2 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 12 | Handle rear left | SCHWARZ | 1 | 51167312185 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 12 | Handle rear right | SCHWARZ | 1 | 51167312186 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and sonora or beige or terra or havanna or beige |
S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 12 | Handle rear left | BEIGE | 1 | 51167312183 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 12 | Handle rear right | BEIGE | 1 | 51167312184 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 12 | Handle rear left | ALASKAGRAU | 1 | 51167312181 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 12 | Handle rear right | ALASKAGRAU | 1 | 51167312182 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | ST4,8X16-C-ZNS3 | 1 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 13 | Sheet metal screw | ST4,8X16-C-ZNS3 | 2 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 13 | Sheet-metal screw, silver | ST4,8X19 | 10 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Trunk room net and Headlining anthracite |
S413A=Yes S775A=Yes |
|||||||||
| 14 | Cover f dividing net bracket left | SCHWARZ | 1 | 51448036313 | Shop at ECS Tuning | |||||
| 14 | Cover f dividing net bracket right | SCHWARZ | 1 | 51448036314 | Shop at ECS Tuning | |||||
| For vehicles with Trunk room net and Headlining anthracite and sonora or beige or terra or havanna or beige |
S413A=Yes S775A=No A3=Yes A5=Yes B8=Yes BK=Yes C2=Yes |
|||||||||
| 14 | Cover f dividing net bracket left | BEIGE | 1 | 51447120747 | Shop at ECS Tuning | |||||
| 14 | Cover f dividing net bracket right | BEIGE | 1 | 51447120748 | Shop at ECS Tuning | |||||
| For vehicles with Trunk room net and Headlining anthracite and alaska-grey or sydney-blau or graphite or alaska-grey or alaska-grey or anthracite or lemon or Monaco blue or orange/black or cranberry-red or Black |
S413A=Yes S775A=No A1=Yes A2=Yes A4=Yes A6=Yes AL=Yes AT=Yes B7=Yes D9=Yes F5=Yes F8=Yes SW=Yes |
|||||||||
| 14 | Cover f dividing net bracket left | ALASKAGRAU | 1 | 51447120745 | Shop at ECS Tuning | |||||
| 14 | Cover f dividing net bracket right | ALASKAGRAU | 1 | 51447120746 | Shop at ECS Tuning | |||||
| For vehicles with Trunk room net |
S413A=Yes |
|||||||||
| 15 | Suspension loop, trunk room net left | 1 | 51477076845 | Shop at ECS Tuning | ||||||
| 15 | Suspension loop, trunk room net right | 1 | 51477076846 | Shop at ECS Tuning | ||||||
| 16 | Oval-head screw with anti-rotation lock | ISA M6X12 | 2 | 51217061955 | $0.69 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 123d Headlining?
- This technical diagram illustrates the Headlining within the Vehicle trim group for the 1 Series E87 LCI 123d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Headlining, lift-up & slide-back sunroof (Part #51448036328).
- Which models use the hardware listed in this Headlining?
- The hardware and components featured in the Headlining are specific to the 1 Series E87 LCI 123d produced during 2011. These technical specifications ensure that parts like the Headlining, lift-up & slide-back sunroof (51448036328) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlining assembly?
- Each item in the Headlining corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 123d, you can identify the Headlining, lift-up & slide-back sunroof by locating its position on the schematic, which then links to the official BMW part number 51448036328 for the Vehicle trim section.
