Rear window shelf for BMW 1 Series E87 LCI 118i (2009)

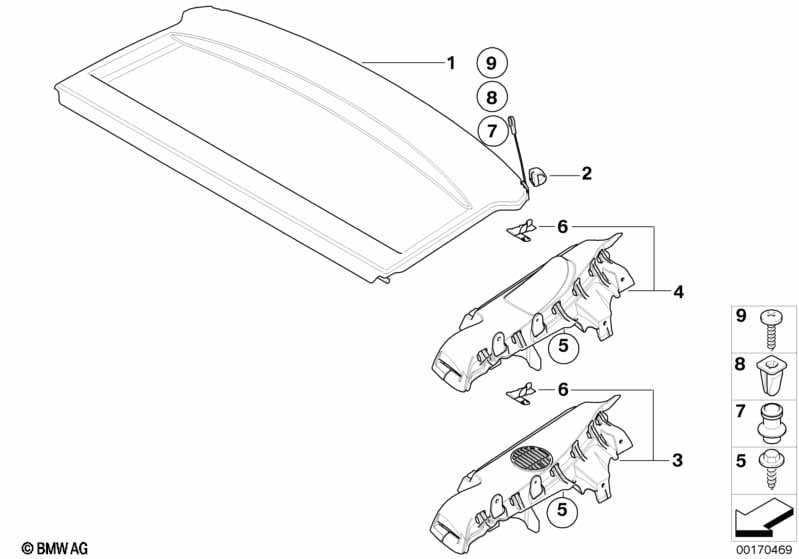

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with alaska-grey |
AL=Yes |
|||||||||
| 01 | Rear window shelf | ALASKAGRAU | 1 | 09/2010 | 51466966717 | +core | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51466966716 | +core | Shop at ECS Tuning | ||||
| For vehicles with beige |
A5=Yes |
|||||||||
| 01 | Rear window shelf | BEIGE | 1 | 51466966718 | +core | Shop at ECS Tuning | ||||
| For vehicles with alaska-grey or anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
AL=Yes AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51466966716 | +core | Shop at ECS Tuning | ||||
| 02 | Rubber buffer | 2 | 51466967605 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and beige |
S676A=No S677A=No A5=Yes |
|||||||||
| 03 | Support, rear window shelf left | BEIGE | 1 | 51467120791 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support, rear window shelf right | BEIGE | 1 | 51467120792 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and alaska-grey |
S676A=No S677A=No AL=Yes |
|||||||||
| 03 | Support, rear window shelf left | ALASKAGRAU | 1 | 09/2010 | 51467120789 | ENDED | Shop at ECS Tuning | |||
| 03 | Support, rear window shelf right | ALASKAGRAU | 1 | 09/2010 | 51467120790 | ENDED | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite |
S676A=No S677A=No S775A=Yes |
|||||||||
| 03 | Support, rear window shelf left | SCHWARZ | 1 | 51467120787 | Shop at ECS Tuning | |||||
| 03 | Support, rear window shelf right | SCHWARZ | 1 | 51467120788 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and alaska-grey or anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
S676A=No S677A=No AL=Yes AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 03 | Support, rear window shelf left | SCHWARZ | 1 | 51467120787 | Shop at ECS Tuning | |||||
| 03 | Support, rear window shelf right | SCHWARZ | 1 | 51467120788 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite |
S676A=Yes S677A=No S775A=Yes |
|||||||||
| 04 | Support, rear window shelf left | SCHWARZ | 1 | 51467125685 | Shop at ECS Tuning | |||||
| 04 | Support, rear window shelf right | SCHWARZ | 1 | 51467125686 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite |
S676A=No S677A=Yes S775A=Yes |
|||||||||
| 04 | Support, rear window shelf left | SCHWARZ | 1 | 51467125685 | Shop at ECS Tuning | |||||
| 04 | Support, rear window shelf right | SCHWARZ | 1 | 51467125686 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite and beige |
S676A=Yes S677A=No S775A=No A5=Yes |
|||||||||
| 04 | Support, rear window shelf left | BEIGE | 1 | 51467125689 | Shop at ECS Tuning | |||||
| 04 | Support, rear window shelf right | BEIGE | 1 | 51467125690 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite and beige |
S676A=No S677A=Yes S775A=No A5=Yes |
|||||||||
| 04 | Support, rear window shelf left | BEIGE | 1 | 51467125689 | Shop at ECS Tuning | |||||
| 04 | Support, rear window shelf right | BEIGE | 1 | 51467125690 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite and alaska-grey |
S676A=Yes S677A=No S775A=No AL=Yes |
|||||||||
| 04 | Support, rear window shelf left | ALASKAGRAU | 1 | 09/2010 | 51467125687 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Support, rear window shelf right | ALASKAGRAU | 1 | 09/2010 | 51467125688 | ENDED | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Headlining anthracite and alaska-grey |
S676A=No S677A=Yes S775A=No AL=Yes |
|||||||||
| 04 | Support, rear window shelf left | ALASKAGRAU | 1 | 09/2010 | 51467125687 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Support, rear window shelf right | ALASKAGRAU | 1 | 09/2010 | 51467125688 | ENDED | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system or HiFi System Professional DSP and alaska-grey or anthracite or lemon or terra or Monaco blue or magma-braun or orange/black or cranberry-red or black / blue or Black |
S676A=Yes S677A=Yes AL=Yes AT=Yes B7=Yes B8=Yes D9=Yes DR=Yes F5=Yes F8=Yes NL=Yes SW=Yes |
|||||||||
| 04 | Support, rear window shelf left | SCHWARZ | 1 | 51467125685 | Shop at ECS Tuning | |||||
| 04 | Support, rear window shelf right | SCHWARZ | 1 | 51467125686 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex head screw with washer | ST4,8X16MM | 10 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Clip, left | 1 | 51438146709 | $1.32 | Shop at ECS Tuning | |||||
| 06 | Clip, right | 1 | 51438146710 | $1.32 | Shop at ECS Tuning | |||||
| 07 | Button | 2 | 51498225348 | $1.11 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 2 | 51138253546 | $0.32 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST4,2X25 | 2 | 07119905106 | $0.16 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
