Trunk floor / Trunk sill / Dividing net for BMW 1 Series E87 LCI 118i (2009)

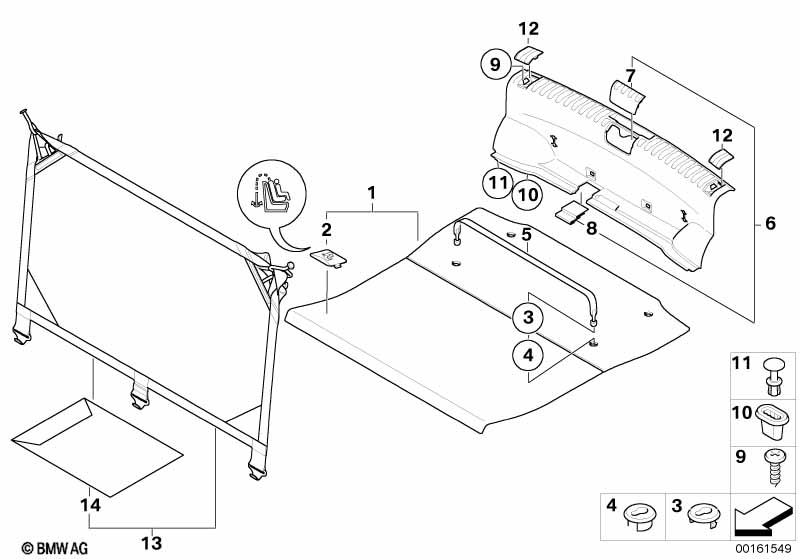

This Trunk floor / Trunk sill / Dividing net technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | 1 | 51479138567 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Cover, child restraint system | 2 | 51479140332 | Shop at ECS Tuning | ||||||
| 03 | Mount, retaining strap upper section | ANTHRAZIT | 4 | 51478146943 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Mount, retaining strap lower section | ANTHRAZIT | 4 | 51478146941 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Band clamp, black | L=590 MM | 2 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 06 | Loading sill cover | 1 | 51477123335 | Shop at ECS Tuning | ||||||
| 07 | Cover, catch bracket | 1 | 51477123336 | Shop at ECS Tuning | ||||||
| 08 | Cover, threaded fastener f roll bar | 1 | 51477123337 | Shop at ECS Tuning | ||||||
| 09 | Screw | NS-TS5X16-ZNFE | 2 | 07129903266 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Grommet | 12X6,3 | 2 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | SCHWARZ | 2 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 12 | Cover,threaded fastener f trunk sill lft | 1 | 51477123333 | Shop at ECS Tuning | ||||||
| 12 | Cover,threaded fastener f trunk sill rg. | 1 | 51477123334 | Shop at ECS Tuning | ||||||
| For vehicles with Trunk room net |
S413A=Yes |
|||||||||
| 13 | Trunk room net with bag | 1 | 51477123951 | Shop at ECS Tuning | ||||||
| 14 | Bag, trunk room net | 1 | 51477123298 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118i Trunk floor / Trunk sill / Dividing net?
- This technical diagram illustrates the Trunk floor / Trunk sill / Dividing net within the Vehicle trim group for the 1 Series E87 LCI 118i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Floor carpet, luggage compartment (Part #51479138567).
- Which models use the hardware listed in this Trunk floor / Trunk sill / Dividing net?
- The hardware and components featured in the Trunk floor / Trunk sill / Dividing net are specific to the 1 Series E87 LCI 118i produced during 2009. These technical specifications ensure that parts like the Floor carpet, luggage compartment (51479138567) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk floor / Trunk sill / Dividing net assembly?
- Each item in the Trunk floor / Trunk sill / Dividing net corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118i, you can identify the Floor carpet, luggage compartment by locating its position on the schematic, which then links to the official BMW part number 51479138567 for the Vehicle trim section.
