Right TRUNK TRIM for BMW 1 Series E87 LCI 118i (2009)

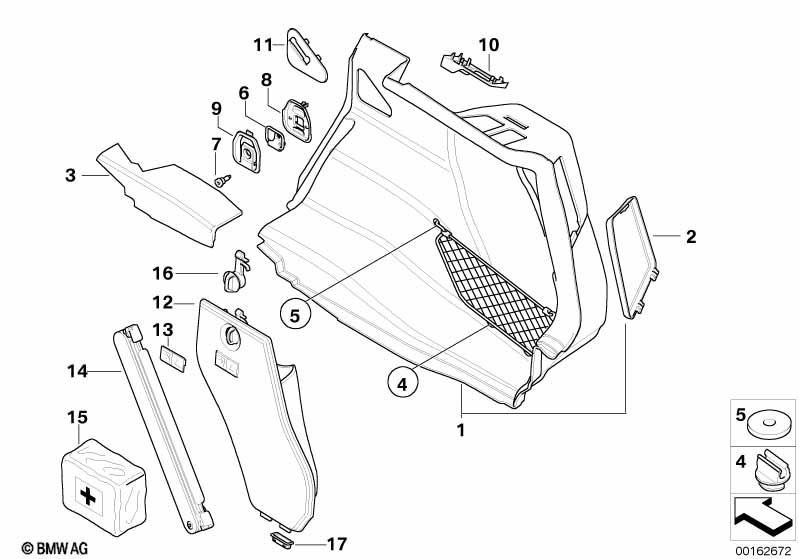

This Right TRUNK TRIM technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right TRUNK TRIM | 1 | 51479203184 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Right TRUNK TRIM | 1 | 51477123501 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Right tail light cover | 1 | 51477070548 | Shop at ECS Tuning | ||||||
| 03 | Pad, side member, right | 1 | 51477141098 | $5.37 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 04 | Mount for storage net | 2 | 09/2008 | 51479147398 | $3.60 | Shop at ECS Tuning | ||||
| 05 | Bush | 2 | 09/2008 | 51479147399 | $4.83 | Shop at ECS Tuning | ||||
| 06 | Tie-down ring | 1 | 51477129196 | $7.23 | Shop at ECS Tuning | |||||
| 07 | Socket head cap screw with shoulder | 1 | 51477130768 | $1.09 | Shop at ECS Tuning | |||||
| 08 | Cover, fastening loop | SCHWARZ | 1 | 51477132893 | $0.87 | Shop at ECS Tuning | ||||
| 09 | Cover fastening loop | SCHWARZ | 1 | 51477129652 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Frame, socket | 1 | 51476949439 | Shop at ECS Tuning | ||||||
| 11 | Cover seat-back clip, right | SCHWARZ | 1 | 51477133708 | $2.29 | Shop at ECS Tuning | ||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 12 | Box warning triangle/First aid kit | 1 | 51477157114 | Shop at ECS Tuning | ||||||
| 13 | Warning triangle/first aid pictograph | 1 | 51477151872 | Shop at ECS Tuning | ||||||
| 14 | Warning triangle with container | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning | |||||
| 15 | First-aid kit, clear case | DIN 13164 | 1 | 51477158344 | +core | Shop at ECS Tuning | ||||
| 16 | Tw. handle on box for wa.tr./f.-aid kit | 1 | 51476979460 | Shop at ECS Tuning | ||||||
| 17 | Bracket box warn. triangle/First aid kit | 1 | 51476979461 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
