Heat insulation for BMW 1 Series E87 LCI 118i (2009)

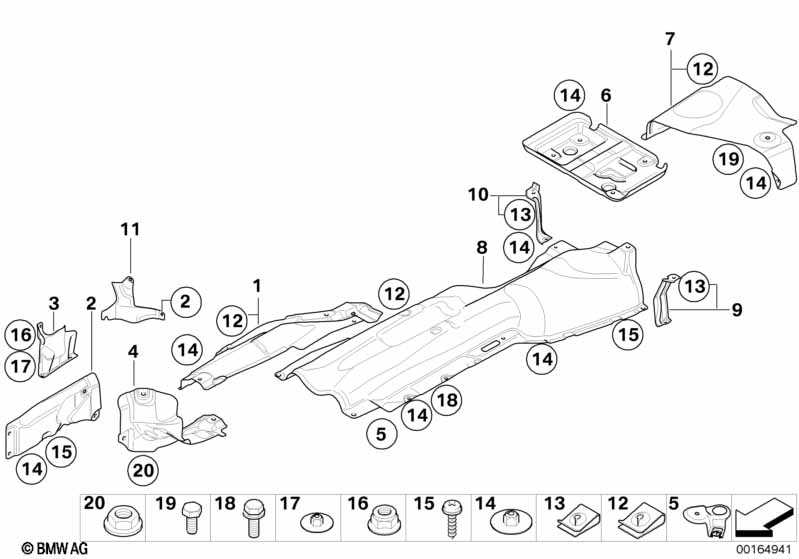

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right front heat insulation | 1 | 51487059365 | $20.75 | Shop at ECS Tuning | |||||
| 02 | Heat shield, engine mount, right | 1 | 51487059366 | $5.57 | Shop at ECS Tuning | |||||
| 03 | Heat insulation, spring support | 1 | 51487141784 | $13.40 | Shop at ECS Tuning | |||||
| 04 | Heat insulation, front wall | 1 | 51487177614 | $32.70 | Shop at ECS Tuning | |||||
| 05 | Bracket, thermal insulation tunnel | 1 | 51757167973 | $4.82 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable or Preparation f tel.installation universal or Control for Combox or Trailer coupling preparation |
S235A=Yes S640A=Yes S6VCA=Yes S8SLA=Yes |
|||||||||
| 06 | Heat insulation final drive | 1 | 51487140985 | $16.81 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface or Voice control or Preparation, mobile phone, Business or Preparation f mobile phone w Bluetooth |
S6FLA=Yes S620A=Yes S633A=Yes S644A=Yes |
|||||||||
| 06 | Heat insulation final drive | 1 | 51487140985 | $16.81 | Shop at ECS Tuning | |||||
| 07 | Heat insulator rear silencer | 1 | 51487059356 | $20.15 | Shop at ECS Tuning | |||||
| 08 | Heat insulation, tunnel/tank | 1 | 51487192040 | $102.13 | Shop at ECS Tuning | |||||
| 09 | Bracket, fuel tank heat insulation left | 1 | 51487179946 | $3.68 | Shop at ECS Tuning | |||||
| 10 | Bracket, fuel tank heat insulation right | 1 | 51487117374 | $7.27 | Shop at ECS Tuning | |||||
| 12 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 5 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 13 | C-clip nut, self-locking | ST6.3 | 2 | 07147171203 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Body nut | D=30MM, ZNS3 | 12 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 4 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M6-8-ZNS3 | 1 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 17 | Body nut | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M8X12-8.8-ZNS3 | 1 | 07119906018 | $0.64 | Shop at ECS Tuning | ||||
| 19 | Hex bolt with washer | M6X12 | 1 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
