Front panel for BMW 1 Series E87 LCI 118i (2011)

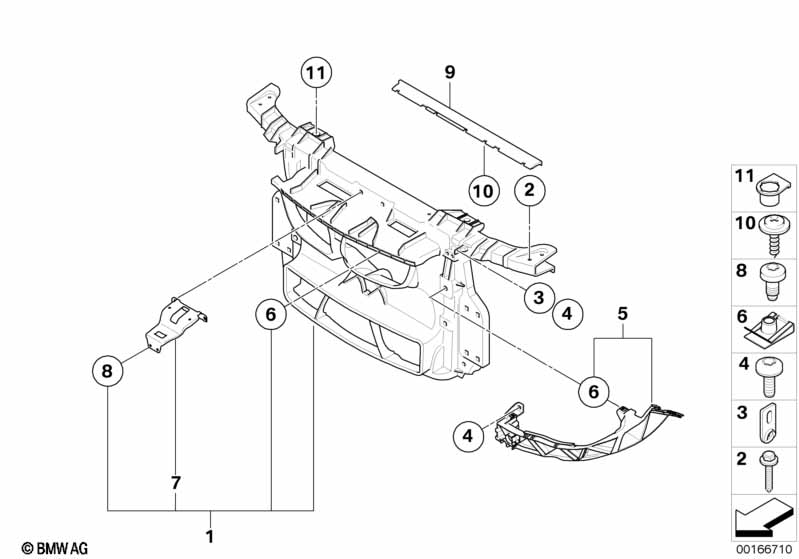

This Front panel technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 51647193192 | $259.62 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X52-10.9 | 4 | 07146989591 | $4.59 | Shop at ECS Tuning | ||||
| 03 | Mount, front lighting combination | 2 | 51647123406 | $6.81 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M6X18 SW | 11 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 04 | Torx screw with washer | ISA M6X18 | 4 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 05 | Headlight bracket, left | 1 | 51647120823 | $33.10 | Shop at ECS Tuning | |||||
| 05 | Headlight bracket, right | 1 | 51647120824 | $33.10 | Shop at ECS Tuning | |||||
| 06 | Clip nut | M6 | 15 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Reinforcement support lock | 1 | 51647123405 | $9.15 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | ISA M6X16 | 4 | 07146956324 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Gasket | 1 | 51647125663 | Shop at ECS Tuning | ||||||
| 10 | Fillister head screw with collar | 3X10 | 5 | 61317682091 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Support sleeve | 2 | 17117526660 | Shop at ECS Tuning |
