Front panel for BMW 1 Series E81 130i (2011)

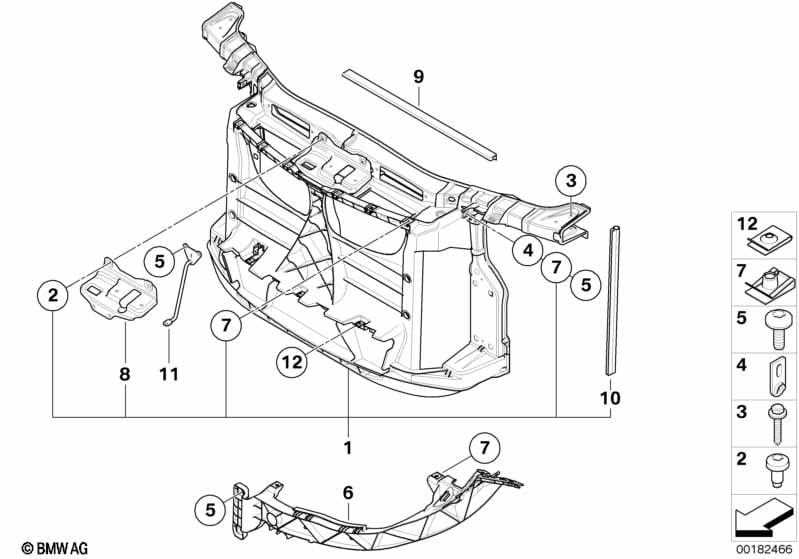

This Front panel technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 130i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 51647193193 | $259.62 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | ISA M6X16 | 4 | 07146956324 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X52-10.9 | 4 | 07146989591 | $4.59 | Shop at ECS Tuning | ||||
| 04 | Mount, front lighting combination | 2 | 51647123406 | $6.81 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | ISA M6X18 SW | 6 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Torx screw with washer | ISA M6X18 | 4 | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Headlight bracket, left | 1 | 51117148761 | $32.42 | Shop at ECS Tuning | |||||
| 06 | Headlight bracket, right | 1 | 51117148762 | $32.42 | Shop at ECS Tuning | |||||
| 07 | Clip nut | M6 | 12 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Reinforcement support lock | 1 | 51117148759 | $17.00 | Shop at ECS Tuning | |||||
| 09 | Seal, front panel/cooler at top | 1 | 51647134102 | $4.25 | Shop at ECS Tuning | |||||
| 10 | Seal, cooling module | 2 | 51647134101 | $3.17 | Shop at ECS Tuning | |||||
| 12 | C-clip nut | 1 | 07146955207 | $0.29 | Shop at ECS Tuning |
