Underfloor coating for BMW 1 Series E87 LCI 120i (2011)

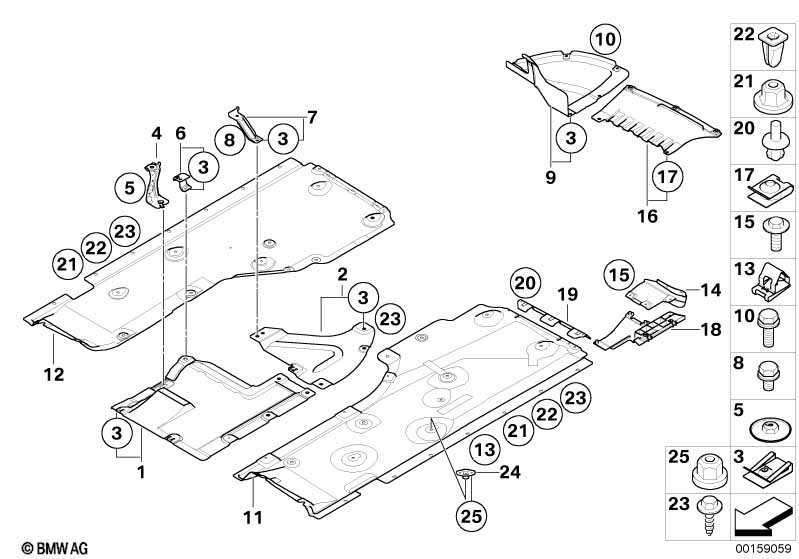

This Underfloor coating technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission |
S205A=No |
||||||||
| 01 | Underfloor coating center | 1 | 51757167421 | $46.06 | Shop at ECS Tuning | |||||
| 02 | Underfloor coating, center rear | 1 | 51757127361 | $18.38 | Shop at ECS Tuning | |||||
| 03 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 12 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Bracket underfloor panelling,center | 1 | 51757125441 | $11.23 | Shop at ECS Tuning | |||||
| 05 | Body nut | D=30MM, ZNS3 | 1 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Bracket underfloor panelling,center frnt | 1 | 51757167828 | $5.56 | Shop at ECS Tuning | |||||
| 07 | Bracket underfloor panelling,center | 1 | 51717111009 | $5.18 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X12-8.8-ZNS3 | 1 | 07119906018 | $0.64 | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 09 | Underfloor coating,activ.charcoal filter | 1 | 51757070140 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 09 | Underfloor coating,activ.charcoal filter | 1 | 51757906814 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M6X12 | 1 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Lateral underbody shield, left | 1 | 51757059389 | $91.94 | Shop at ECS Tuning | |||||
| 12 | Lateral underbody shield, right | 1 | 51757059390 | $91.94 | Shop at ECS Tuning | |||||
| 13 | Sheetmetal nut with cap | ST4.8 | 2 | 07146952931 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Deflector lip, rear left | 1 | 51717117637 | $6.73 | Shop at ECS Tuning | |||||
| 14 | Deflector lip, rear right | 1 | 51777117638 | $6.73 | Shop at ECS Tuning | |||||
| 15 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable |
S235A=No |
|||||||||
| 16 | Covering Lower | 1 | 51127117631 | Shop at ECS Tuning | ||||||
| 17 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 3 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Extension, floorpan cover, side, left | 1 | 51777141861 | $9.21 | Shop at ECS Tuning | |||||
| 18 | Extension, floorpan cover, side, right | 1 | 51777141862 | $9.21 | Shop at ECS Tuning | |||||
| 19 | Deflector lip, underbody shield | 2 | 51757139114 | $5.56 | Shop at ECS Tuning | |||||
| 20 | Expanding rivet | 4 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 21 | Plastic nut | 5 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 22 | Expanding nut | L=15MM, DMAX=12 | 8 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 23 | Hex head screw with washer | ST4,8X16MM | 22 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Bracket underfloor panelling lateral | 2 | 51757125058 | $3.33 | Shop at ECS Tuning | |||||
| 25 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
