Misc. body parts for BMW 1 Series E82 125i (2013)

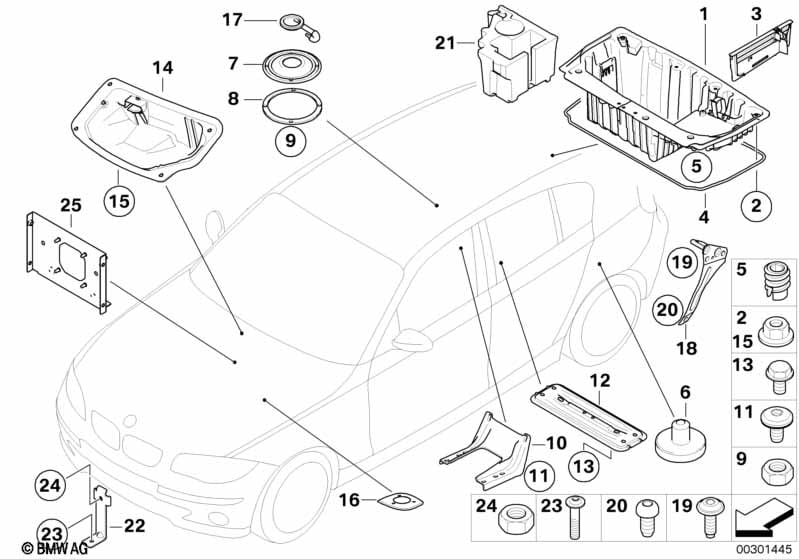

This Misc. body parts technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Multifunctional pan, trunk floor | 1 | 51717166854 | $202.06 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 03 | Partition, multifunctional pan | 1 | 51717192556 | $6.30 | Shop at ECS Tuning | |||||
| 05 | Repair insert, multifunction pan | 1 | 51717168662 | $3.92 | Shop at ECS Tuning | |||||
| 06 | Spring pocket | 2 | 41147057297 | $5.12 | Shop at ECS Tuning | |||||
| 07 | cover, floor panel rear | 2 | 51717124999 | $4.70 | Shop at ECS Tuning | |||||
| 08 | seal, cap | 2 | 51718227359 | $1.15 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M6-8-ZNFE SW | 8 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Support floor panel, rear | 1 | 51717134270 | $12.54 | Shop at ECS Tuning | |||||
| 11 | Torx-bolt with washer | M6X12 | 6 | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 14 | Covering for wiper motor | 1 | 51717123448 | $28.12 | Shop at ECS Tuning | |||||
| 15 | Self-locking hex nut | M6 | 4 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 17 | Rubber grommet for immersion tube sensor | 1 | 61136919417 | $4.23 | Shop at ECS Tuning | |||||
| 18 | Rod left | 1 | 51717183127 | $29.94 | Shop at ECS Tuning | |||||
| 18 | Rod right | 1 | 51717183128 | $29.94 | Shop at ECS Tuning | |||||
| 19 | Torx screw with collar | M8X20 T30 | 4 | 07147124309 | $0.80 | Shop at ECS Tuning | ||||
| 20 | Fillister head screw | ISA M12X24 | 2 | 07147203927 | $2.09 | Shop at ECS Tuning | ||||
