Trim panel, bulkhead for BMW 3 Series E93 320i (2010)

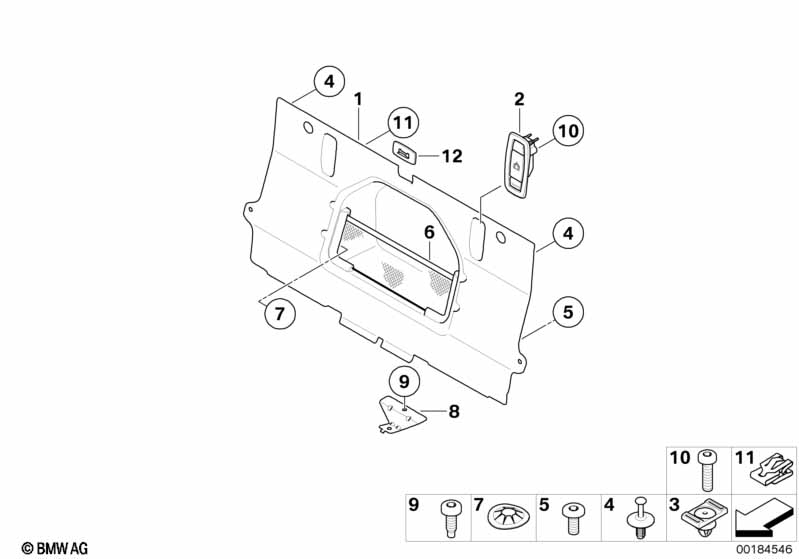

This Trim panel, bulkhead technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim for inside bulkhead tray | ANTHRAZIT | 1 | 51476971568 | $205.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hook | ANTHRAZIT | 2 | 51479121819 | $15.60 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| 01 | Trim for inside bulkhead tray | GRAU | 1 | 51476971569 | $205.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hook | GRAU | 2 | 51479121820 | $15.60 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package Ski bag on image-text unit 032657 |
S493A=Yes |
|||||||||
| 01 | Trim for inside bulkhead tray | ANTHRAZIT | 1 | 51476971568 | $205.08 | Shop at ECS Tuning | ||||
| 01 | Trim for inside bulkhead tray | GRAU | 1 | 51476971569 | $205.08 | Shop at ECS Tuning | ||||
| For vehicles with Load-through hatch with int. trans. sack Ski bag on image-text unit 032657 |
S4UTA=Yes |
|||||||||
| 01 | Trim for inside bulkhead tray | ANTHRAZIT | 1 | 51476971568 | $205.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hook | ANTHRAZIT | 2 | 51479121819 | $15.60 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| 01 | Trim for inside bulkhead tray | GRAU | 1 | 51476971569 | $205.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hook | GRAU | 2 | 51479121820 | $15.60 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| 01 | Trim for inside bulkhead tray | CREAMBEIGE | 1 | 51476971570 | $205.08 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Hook | CREAMBEIGE | 2 | 51479155238 | $15.60 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| For vehicles with Load-through hatch with int. trans. sack and Storage compartment package Ski bag on image-text unit 032657 |
S4UTA=Yes S493A=Yes |
|||||||||
| 01 | Trim for inside bulkhead tray | ANTHRAZIT | 1 | 51476971568 | $205.08 | Shop at ECS Tuning | ||||
| 01 | Trim for inside bulkhead tray | GRAU | 1 | 51476971569 | $205.08 | Shop at ECS Tuning | ||||
| 01 | Trim for inside bulkhead tray | CREAMBEIGE | 1 | 51476971570 | $205.08 | Shop at ECS Tuning | ||||
| 02 | Hook | ANTHRAZIT | 2 | 51479121819 | $15.60 | Shop at ECS Tuning | ||||
| 02 | Hook | GRAU | 2 | 51479121820 | $15.60 | Shop at ECS Tuning | ||||
| 02 | Hook | CREAMBEIGE | 2 | 51479155238 | $15.60 | Shop at ECS Tuning | ||||
| 02 | Covering cap | SCHWARZ | 1 | 72149143471 | Shop at ECS Tuning | |||||
| 03 | Clip | 4 | 07146971565 | $0.75 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 2 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 2 | 51718259788 | $0.37 | Shop at ECS Tuning | |||||
| 05 | Countersunk screw | ANTHRAZIT/ ISA | 1 | 07146982138 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Countersunk screw | GRAU/ ISA | 1 | 07146982139 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Countersunk screw | CREAMBEIGE/ ISA | 1 | 07146982140 | $2.18 | Shop at ECS Tuning | ||||
| 06 | Parcel net | ANTHRAZIT | 1 | 51479119420 | $28.35 | +core | Shop at ECS Tuning | |||
| 06 | Parcel net | GRAU | 1 | 51479119421 | +core | Shop at ECS Tuning | ||||
| 06 | Parcel net | CREAMBEIGE | 1 | 51479119422 | +core | Shop at ECS Tuning | ||||
| 07 | Axial securing clip | 5,75MM | 6 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 51716974601 | $3.52 | Shop at ECS Tuning | |||||
| 09 | Torx bolt | ISA M8X19 | 1 | 52108161962 | $0.46 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 2 | 07149122981 | $0.80 | Shop at ECS Tuning | |||||
| 12 | Cover, catch bracket | SCHWARZ | 1 | 52107188648 | Shop at ECS Tuning | |||||
| 12 | Cover, catch bracket | GRAU | 1 | 52107188649 | Shop at ECS Tuning | |||||
| 12 | Cover, catch bracket | CREAMBEIGE | 1 | 52107188650 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 320i Trim panel, bulkhead?
- This technical diagram illustrates the Trim panel, bulkhead within the Vehicle trim group for the 3 Series E93 320i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Trim for inside bulkhead tray (Part #51476971568).
- Which models use the hardware listed in this Trim panel, bulkhead?
- The hardware and components featured in the Trim panel, bulkhead are specific to the 3 Series E93 320i produced during 2010. These technical specifications ensure that parts like the Trim for inside bulkhead tray (51476971568) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel, bulkhead assembly?
- Each item in the Trim panel, bulkhead corresponds to the numbered list below the illustration. For the 3 Series E93 320i, you can identify the Trim for inside bulkhead tray by locating its position on the schematic, which then links to the official BMW part number 51476971568 for the Vehicle trim section.
