Trim panel, trunk floor for BMW 3 Series E93 320i (2010)

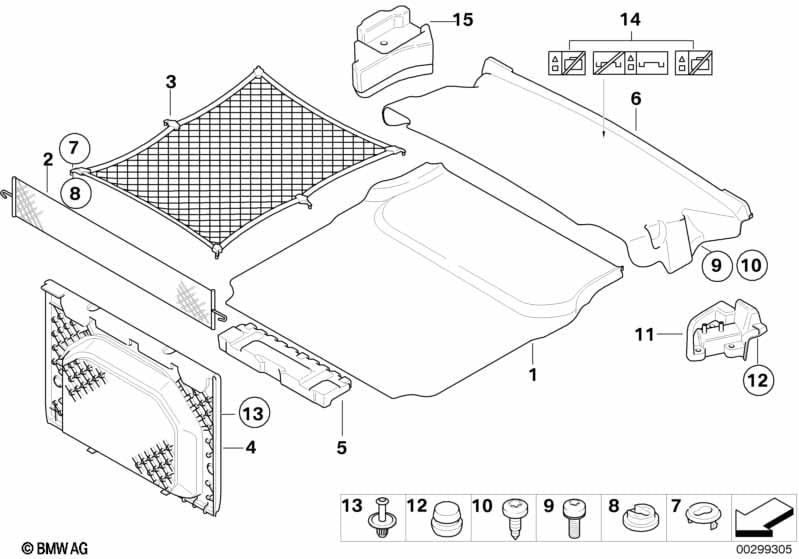

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | removable panel for luggage compartment | 1 | 51477124302 | $99.54 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | 1 | 51479120917 | Shop at ECS Tuning | ||||||
| For vehicles with Storage compartment package and TV function and On-board monitor with TV |
S493A=Yes S601A=Yes S602A=No |
|||||||||
| 01 | Floor carpet, luggage compartment | 1 | 51479120918 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 |
S601A=Yes S602A=Yes S609A=Yes S8LHA=Yes |
|||||||||
| 01 | removable panel for luggage compartment | 1 | 51477124304 | +core | Shop at ECS Tuning | |||||
| 02 | Tension strap | 1 | 51477157301 | $56.05 | Shop at ECS Tuning | |||||
| 03 | Boot/trunk floor net | 1 | 51479123752 | $34.52 | Shop at ECS Tuning | |||||
| 04 | Trunk partition trim panel | 1 | 51477124303 | $100.33 | +core | Shop at ECS Tuning | ||||
| For vehicles with Load-through hatch with int. trans. sack |
S4UTA=Yes |
|||||||||
| 04 | Trim panel, bulkhead | 1 | 51477157296 | $100.33 | +core | Shop at ECS Tuning | ||||
| 05 | Insert, partition trunk | 1 | 51477152515 | +core | Shop at ECS Tuning | |||||
| 06 | Cover for trunk cover | 1 | 51477124294 | $182.78 | Shop at ECS Tuning | |||||
| 07 | Mount, retaining strap upper section | GRAU | 4 | 51476962585 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Mount, retaining strap upper section | ANTHRAZIT | 4 | 51478146943 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Mount, retaining strap upper section | CREAMBEIGE | 4 | 51479129125 | $0.75 | Shop at ECS Tuning | ||||
| 08 | Mount, retaining strap lower section | GRAU | 4 | 51476955266 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Mount, retaining strap lower section | ANTHRAZIT | 4 | 51478146941 | $0.75 | Shop at ECS Tuning | ||||
| 08 | Mount, retaining strap lower section | CREAMBEIGE | 4 | 52209127378 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt with washer | ISA M6X16 | 8 | 07147145088 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | 6 | 07146950624 | $0.38 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | 4 | 07149149705 | $0.27 | Shop at ECS Tuning | |||||
| 11 | Locking mechanism, left | 1 | 51479127937 | $13.91 | Shop at ECS Tuning | |||||
| 11 | Locking mechanism, right | 1 | 51479127938 | $13.91 | Shop at ECS Tuning | |||||
| 12 | Bump stop | 2 | 51479128054 | $0.69 | Shop at ECS Tuning | |||||
| 13 | Expanding rivet | 4 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 14 | Warning sticker | 1 | 51474195470 | $27.20 | ENDED | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 320i Trim panel, trunk floor?
- This technical diagram illustrates the Trim panel, trunk floor within the Vehicle trim group for the 3 Series E93 320i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the removable panel for luggage compartment (Part #51477124302).
- Which models use the hardware listed in this Trim panel, trunk floor?
- The hardware and components featured in the Trim panel, trunk floor are specific to the 3 Series E93 320i produced during 2010. These technical specifications ensure that parts like the removable panel for luggage compartment (51477124302) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel, trunk floor assembly?
- Each item in the Trim panel, trunk floor corresponds to the numbered list below the illustration. For the 3 Series E93 320i, you can identify the removable panel for luggage compartment by locating its position on the schematic, which then links to the official BMW part number 51477124302 for the Vehicle trim section.
