Lateral trunk floor trim panel for BMW 3 Series E93 320d (2010)

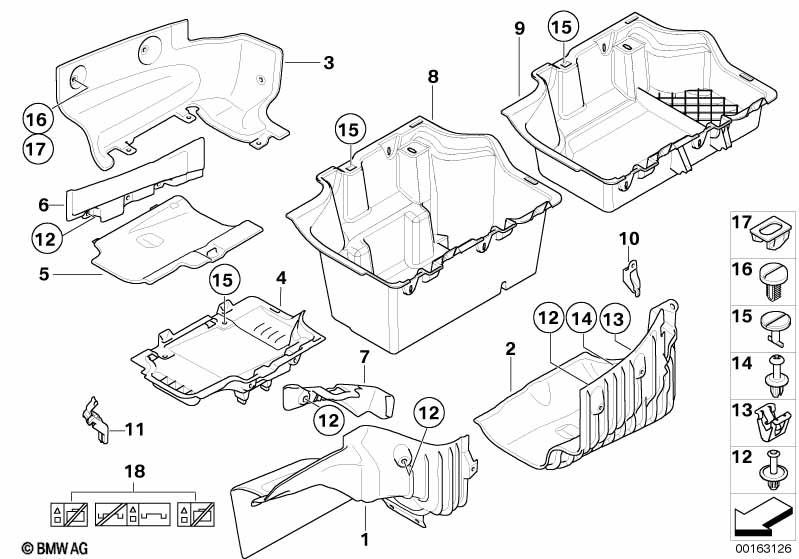

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left trunk trim | 1 | 51477145491 | $43.19 | Shop at ECS Tuning | |||||
| 01 | Right TRUNK TRIM | 1 | 51477145492 | $43.19 | +core | Shop at ECS Tuning | ||||
| 02 | Left trunk trim | 1 | 51477157292 | $80.63 | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=Yes |
|||||||||
| 02 | Left trunk trim | 1 | 51477145493 | $43.19 | +core | Shop at ECS Tuning | ||||
| 03 | Battery cover | 1 | 51479126820 | $56.35 | Shop at ECS Tuning | |||||
| 04 | recessed cover | 1 | 51479126822 | $39.03 | Shop at ECS Tuning | |||||
| 05 | Battery cover | 1 | 51479126821 | $26.29 | Shop at ECS Tuning | |||||
| 06 | Frame | 1 | 51477145496 | $17.87 | +core | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 06 | Frame | 1 | 51476978463 | $17.87 | +core | Shop at ECS Tuning | ||||
| 07 | Covering left | 1 | 51477146541 | $12.49 | Shop at ECS Tuning | |||||
| 07 | Covering right | 1 | 51477146542 | $12.49 | Shop at ECS Tuning | |||||
| 08 | Storage shell, left | 1 | 51476972551 | $56.35 | Shop at ECS Tuning | |||||
| 09 | Storage shell, left | 1 | 51476978157 | $56.35 | Shop at ECS Tuning | |||||
| 10 | Holder | 1 | 51476989710 | $2.02 | Shop at ECS Tuning | |||||
| 11 | Support | 1 | 51476978158 | $3.60 | Shop at ECS Tuning | |||||
| 12 | Expanding rivet | 18 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 13 | Clamp | 4 | 07147124171 | $0.17 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | D=11,3 | 2 | 51717548693 | $0.65 | Shop at ECS Tuning | ||||
| 15 | Rotary latch 18 mm | GRAU | 5 | 51477111218 | $1.03 | Shop at ECS Tuning | ||||
| 16 | Push-button | 3 | 51471945266 | $0.55 | Shop at ECS Tuning | |||||
| 17 | Lock insert | 2 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 17 | Lock insert | 1 | 64111376327 | $0.80 | Shop at ECS Tuning | |||||
| 18 | Warning sticker | 1 | 51474195470 | $27.20 | ENDED | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 320d Lateral trunk floor trim panel?
- This technical diagram illustrates the Lateral trunk floor trim panel within the Vehicle trim group for the 3 Series E93 320d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Left trunk trim (Part #51477145491).
- Which models use the hardware listed in this Lateral trunk floor trim panel?
- The hardware and components featured in the Lateral trunk floor trim panel are specific to the 3 Series E93 320d produced during 2010. These technical specifications ensure that parts like the Left trunk trim (51477145491) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lateral trunk floor trim panel assembly?
- Each item in the Lateral trunk floor trim panel corresponds to the numbered list below the illustration. For the 3 Series E93 320d, you can identify the Left trunk trim by locating its position on the schematic, which then links to the official BMW part number 51477145491 for the Vehicle trim section.
