Trunk lid trim panel for BMW 3 Series E93 LCI 320i (2013)

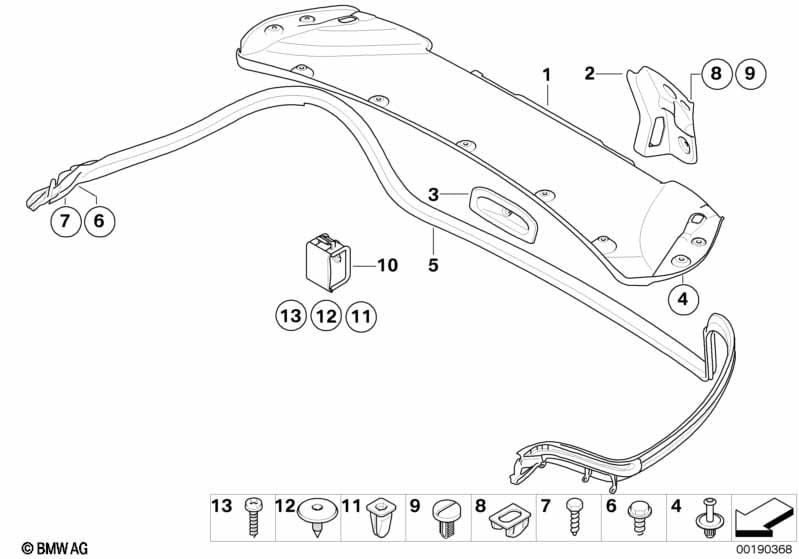

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid trim panel | 1 | 51497199434 | +core | Shop at ECS Tuning | |||||
| For vehicles with Emergency release, luggage compartment |
S5DSA=Yes |
|||||||||
| 01 | Trunk lid trim panel | 1 | 51497174770 | $97.01 | +core | Shop at ECS Tuning | ||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 01 | Trunk lid trim panel | 1 | 51497129216 | +core | Shop at ECS Tuning | |||||
| For vehicles with Warning triangle and first aid kit and Emergency release, luggage compartment |
S428A=Yes S5DSA=Yes |
|||||||||
| 01 | Trunk lid trim panel | 1 | 51497195818 | $97.01 | +core | Shop at ECS Tuning | ||||
| 02 | Left tail light cover | 1 | 51497167311 | $11.59 | Shop at ECS Tuning | |||||
| 02 | Right tail light cover | 1 | 51497167312 | $11.59 | Shop at ECS Tuning | |||||
| 03 | Handle recess, trunk lid | 1 | 51497167547 | $14.79 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 4 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 05 | Trunk lid sealing | 1 | 51767193576 | $149.04 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | ST4,8X16-ZNS3 | 6 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST5,5X16 SW | 6 | 07119901339 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Lock insert | 2 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 09 | Push-button | 2 | 51471945266 | $0.55 | Shop at ECS Tuning | |||||
| 10 | Bracket for hazard warn. triangle | 2 | 51497167548 | $0.81 | Shop at ECS Tuning | |||||
| 11 | Expanding nut | ST4,8MM | 2 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ISA ST4,8X16 | 2 | 07147225732 | $1.05 | Shop at ECS Tuning | ||||
| 13 | Sheet metal screw | ST4,8X16 | 2 | 07119906876 | $0.25 | Shop at ECS Tuning | ||||
