Door trim, rear for BMW 5 Series E60 525i (2007)

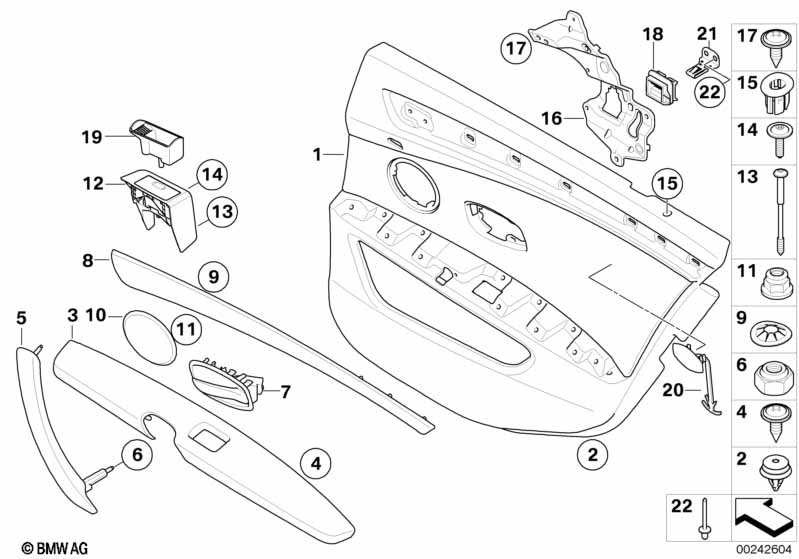

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Duitable for vehicles with and without S563A Lighting Package The door trim panel for S677A or S752A fits all vehicles Important! Pos. 3 must also be ordered when Pos. 1 is replaced. |
|||||||||
| 19 | Ashtray insert | 1 | 51427263456 | Shop at ECS Tuning | ||||||
| For vehicles with amethyst |
RH=Yes |
|||||||||
| 20 | Badge | ROSENHOLZ | 1 | 51417277739 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with beige 3 |
BA=Yes |
|||||||||
| 20 | Badge | BEIGE | 1 | 51417277735 | Shop at ECS Tuning | |||||
| For vehicles with cream-beige |
GE=Yes |
|||||||||
| 20 | Badge | CREMEBEIGE | 1 | 51417277738 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with grey |
AD=Yes |
|||||||||
| 20 | Badge | GRAU | 1 | 51417277736 | Shop at ECS Tuning | |||||
| For vehicles with indianapolis-rot or sepang-bronze hell or silverstone 2 or anthracite or Portland natural brown or kastanienbraun or Black or trüffel-braun |
A7=Yes A8=Yes A9=Yes AT=Yes B1=Yes RK=Yes SW=Yes TE=Yes |
|||||||||
| 20 | Badge | SCHWARZ | 1 | 51417277737 | Shop at ECS Tuning | |||||
| 21 | Grip bracket | 2 | 51218156538 | $0.92 | Shop at ECS Tuning | |||||
| 22 | Blind rivet | 4 | 51218199602 | $0.52 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
