Reinforcement, body for BMW 3 Series E93 335i (2010)

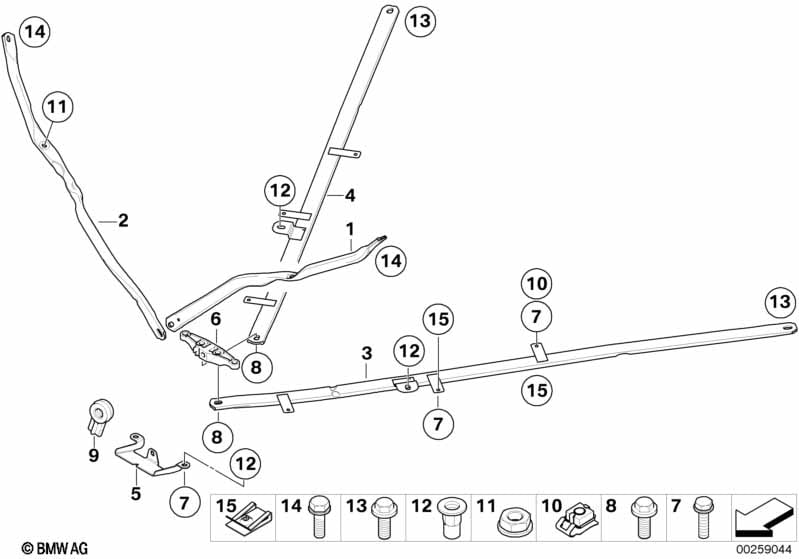

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diagonal rod, front, left | 1 | 51617265285 | Shop at ECS Tuning | ||||||
| 02 | Diagonal rod, front, right | 1 | 51617258314 | Shop at ECS Tuning | ||||||
| 03 | V-brace, front subframe, left | 1 | 02/2007 | 51617046335 | $100.95 | Shop at ECS Tuning | ||||
| 04 | V-brace, front subframe, right | 1 | 02/2007 | 51617046336 | $100.95 | Shop at ECS Tuning | ||||
| 05 | Protective runner | 1 | 02/2007 | 51617046337 | $3.52 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M10X35-Z1-10.9 | 2 | 33306760652 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Hex screw with collar | M10X33-10.9 | 2 | 33326768354 | $1.14 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M12X30 | 2 | 07119905502 | $3.44 | Shop at ECS Tuning | ||||
| 09 | Lock plate | ZNS3 | 2 | 33326760364 | $7.03 | Shop at ECS Tuning | ||||
| 10 | Cage nut | 2 | 31116768715 | $1.82 | Shop at ECS Tuning | |||||
| 11 | Flange nut | M10-10-ZNS3 | 2 | 07119904670 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Blind rivet nut, flat headed | M10 | 4 | 07147199279 | $1.78 | Shop at ECS Tuning | ||||
| 13 | Hexagon screw with flange | M12X1,5X35-10.9 | 2 | 07147203503 | $1.75 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M10X25-10.9ZNS3 | 1 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 15 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 6 | 07147154447 | $0.27 | Shop at ECS Tuning |
