Window mounting parts for BMW 700L (1962)

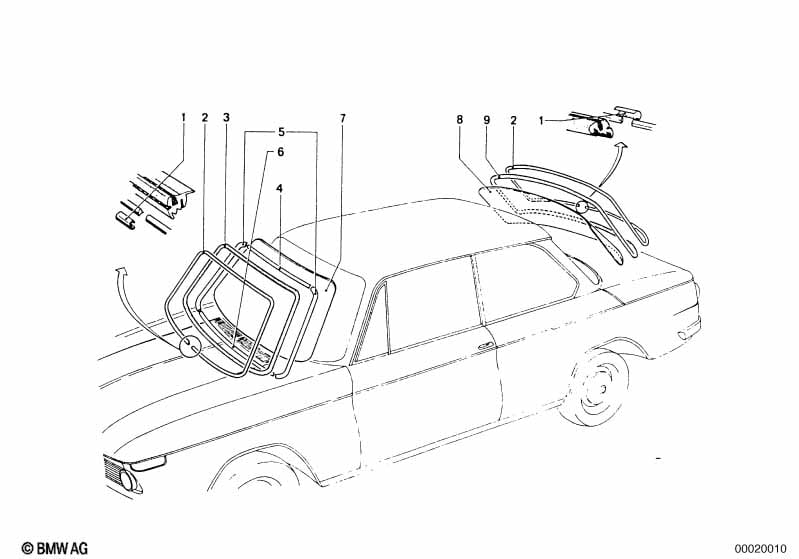

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 700L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1962.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

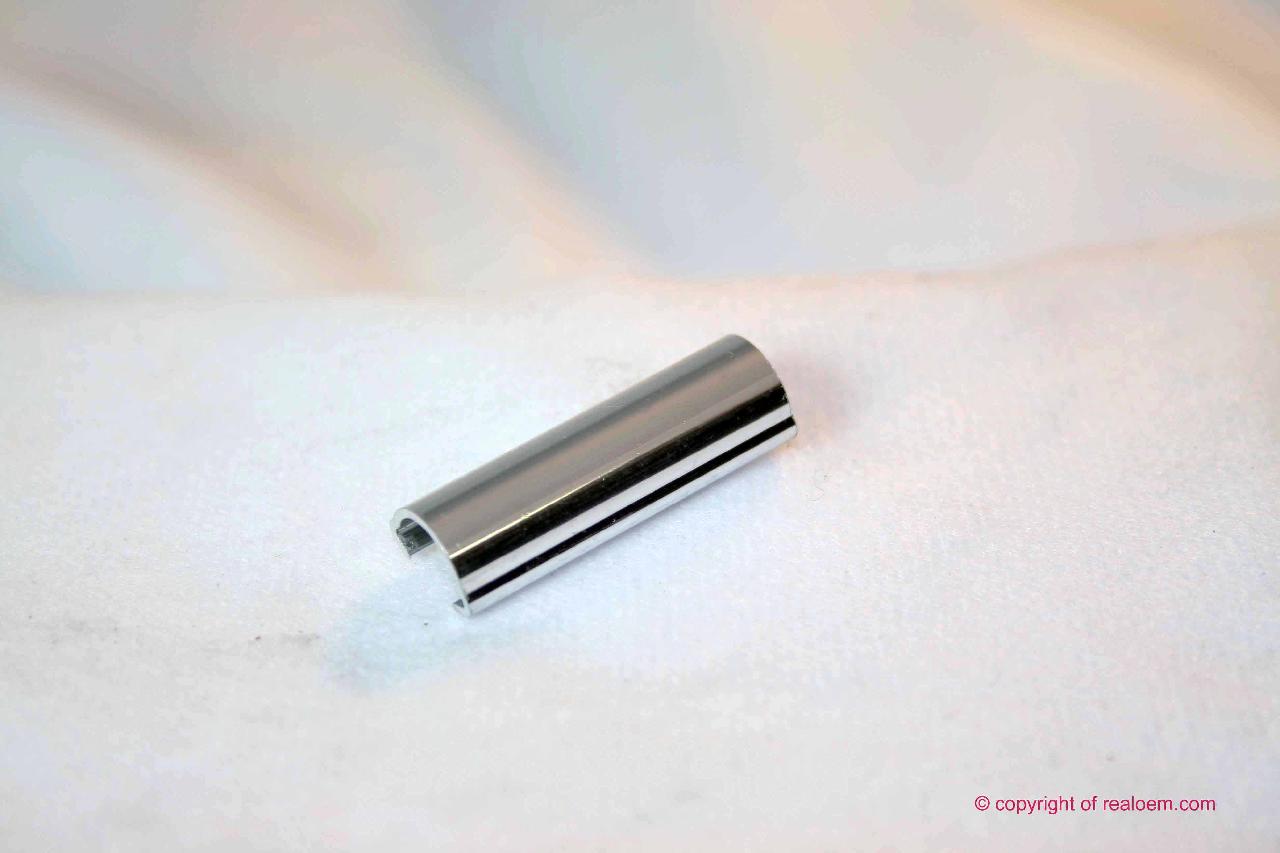

| 01 | Cup | 2 | 51317440106 | $5.31 | Shop at ECS Tuning | |||||
| 02 | Filling rubber | L=3575/CHROM | 1 | 51311803265 | $33.04 | Shop at ECS Tuning | ||||
| 02 | Windshield filler | SILBER | 1 | 51367040623 | $23.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Weatherstrip | 1 | 51317041873 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
