Underbody paneling, rear for BMW MINI Roadster R59 Cooper (2015)

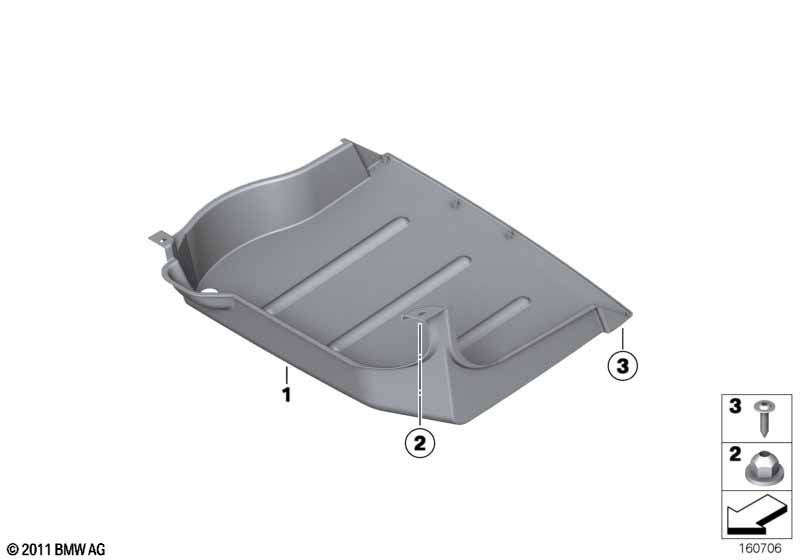

This Underbody paneling, rear technical drawing provides a detailed breakdown of the assembly for the MINI Roadster R59 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emergency spare wheel and Preparations for rear luggage carrier |
S300A=No S3ARA=No |
|||||||||
| 01 | Underbody paneling, rear | 1 | 51711149159 | $46.06 | Shop at ECS Tuning | |||||
| 02 | Plastic nut, black | M5 | 2 | 07147221224 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | L=18MM | 3 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Roadster R59 Cooper Underbody paneling, rear?
- This technical diagram illustrates the Underbody paneling, rear within the Vehicle trim group for the MINI Roadster R59 Cooper produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Underbody paneling, rear (Part #51711149159).
- Which models use the hardware listed in this Underbody paneling, rear?
- The hardware and components featured in the Underbody paneling, rear are specific to the MINI Roadster R59 Cooper produced during 2015. These technical specifications ensure that parts like the Underbody paneling, rear (51711149159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Underbody paneling, rear assembly?
- Each item in the Underbody paneling, rear corresponds to the numbered list below the illustration. For the MINI Roadster R59 Cooper, you can identify the Underbody paneling, rear by locating its position on the schematic, which then links to the official BMW part number 51711149159 for the Vehicle trim section.
