Armrest, door panel, front for BMW 3 Series E90 LCI 318i (2011)

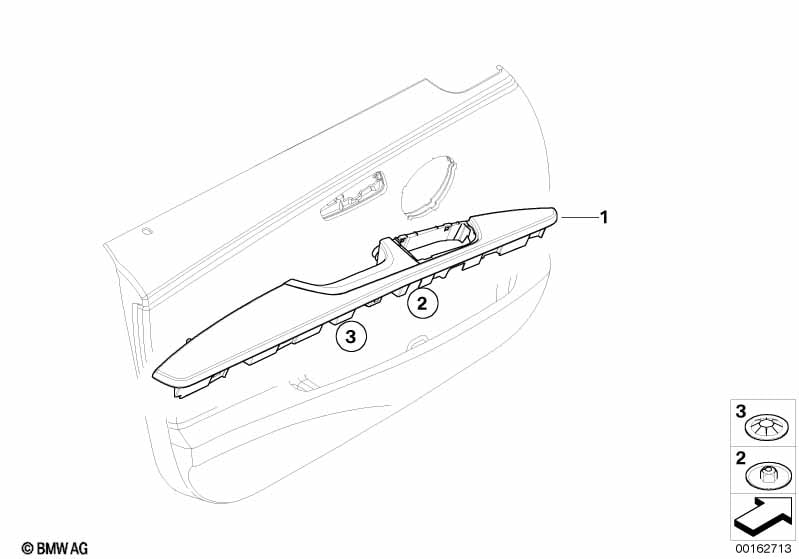

This Armrest, door panel, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Armrest, front left | SATTELBRAUN | 1 | 09/2008 | 51417239669 | $213.29 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 01 | Armrest, front left | GRAU | 1 | 09/2008 | 51417239657 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Armrest, front left | BEIGE | 1 | 09/2008 | 51417239665 | $213.29 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Armrest, front left | GRAU | 1 | 09/2008 | 51417239663 | $213.29 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Armrest, front left | OYSTER | 1 | 09/2008 | 51417239667 | $213.29 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 01 | Armrest, front left | ROTBRAUN | 1 | 09/2008 | 51417239671 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 09/2008 | 51417239661 | $213.29 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/beige" or Sensatec/beige |
EBB4=Yes KAB4=Yes |
|||||||||
| 01 | Armrest, front left | BEIGE | 1 | 09/2008 | 51417239659 | $143.87 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FMAT=Yes FMCN=Yes KASW=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 09/2008 | 51417239655 | $143.87 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Nut, self-tapping | D=9.9 | 1 | 09/2008 | 51419142455 | $5.00 | Shop at ECS Tuning | |||
| -- | Spring nut | D=7,9 | 1 | 09/2008 | 51419142456 | $0.26 | Shop at ECS Tuning | |||
| 02 | Nut, self-tapping | D=9.9 | 8 | 51419142455 | $5.00 | Shop at ECS Tuning | ||||
| 03 | Spring nut | D=7,9 | 3 | 51419142456 | $0.26 | Shop at ECS Tuning | ||||
