Mounting parts for trunk floor panel for BMW 3 Series E93 LCI 330i (2013)

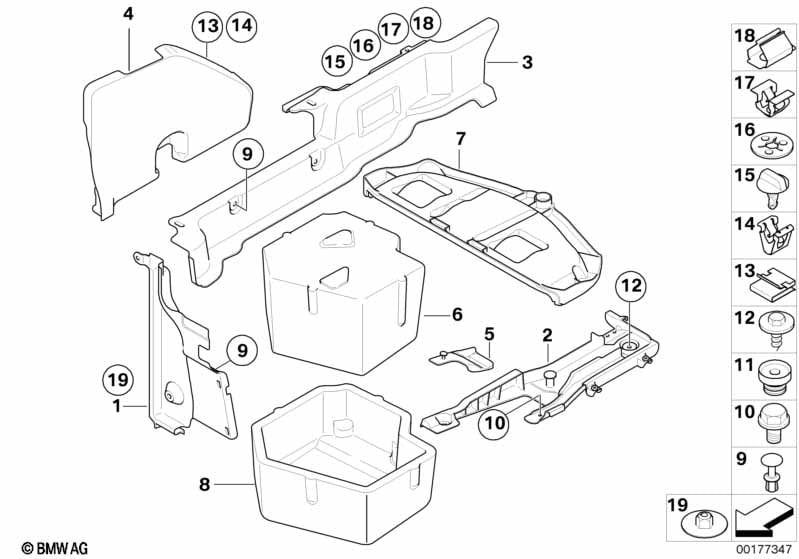

This Mounting parts for trunk floor panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front Lugg.compartment trim panel | 1 | 51477145489 | $25.68 | +core | Shop at ECS Tuning | ||||
| 01 | Right front Lugg.compartment trim panel | 1 | 51477145490 | $25.68 | +core | Shop at ECS Tuning | ||||
| 02 | Bracket for hydraulic line, left | 1 | 51476960797 | $25.87 | Shop at ECS Tuning | |||||
| 02 | Bracket for hydraulic line, right | 1 | 51476960798 | $25.87 | Shop at ECS Tuning | |||||
| 03 | Trunk trim panel, right side member | 1 | 51476960794 | $77.05 | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=Yes |
|||||||||
| 03 | Trim, CD changer side mount | 1 | 51476972552 | $96.16 | +core | Shop at ECS Tuning | ||||
| For vehicles with CD changer for 6 CDs |
S672A=No |
|||||||||
| 03 | Trunk trim panel, left side member | 1 | 51476960793 | $77.05 | Shop at ECS Tuning | |||||
| 04 | Trim panel left | 1 | 51476960795 | $27.86 | Shop at ECS Tuning | |||||
| 04 | Trim panel right | 1 | 51476960796 | $27.86 | Shop at ECS Tuning | |||||
| 05 | Cover, main bearing, left | 1 | 51479123217 | $9.70 | Shop at ECS Tuning | |||||
| 05 | Cover, main bearing, right | 1 | 51479123218 | $9.70 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 51476970841 | +core | Shop at ECS Tuning | |||||
| 07 | Cover, hydraulic unit | 1 | 51717152793 | $77.05 | Shop at ECS Tuning | |||||
| 08 | Storage troug luggage trunk floor | 1 | 51479130750 | $21.90 | Shop at ECS Tuning | |||||
| 09 | Expanding rivet | 8 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X16-U2-ZNS3 | 3 | 07119902913 | Shop at ECS Tuning | |||||
| 11 | Rubber buffer | 2 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 12 | Hex head screw | ST 4,8X18 SW8 | 4 | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Clamp | 2 | 51476979424 | $0.94 | Shop at ECS Tuning | |||||
| 14 | Clamp | 2 | 07147124171 | $0.17 | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=Yes |
|||||||||
| 15 | Lock | 1 | 07149156824 | $2.70 | Shop at ECS Tuning | |||||
| For vehicles with CD changer for 6 CDs |
S672A=No |
|||||||||
| 15 | Lock | 1 | 07149156823 | Shop at ECS Tuning | ||||||
| 16 | Retainer | 1 | 07149156822 | $0.61 | Shop at ECS Tuning | |||||
| 17 | Clamp | 1 | 07149156825 | $1.17 | Shop at ECS Tuning | |||||
| 18 | Clamp | 1 | 07149156826 | $1.17 | Shop at ECS Tuning | |||||
| 19 | Body nut | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
