Interior strips, aluminum, glaciersilber for BMW 3 Series E93 LCI 320i (2013)

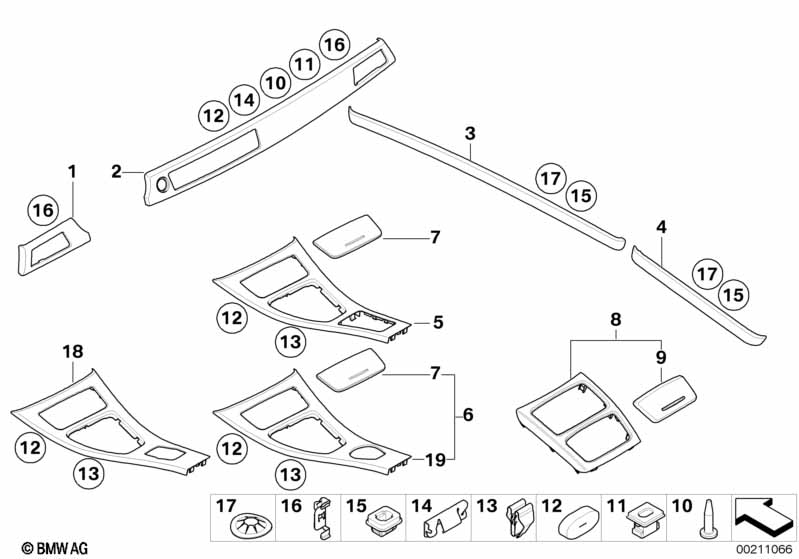

This Interior strips, aluminum, glaciersilber technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 01 | Cover, dashboard, aluminium, right | GLACIER SILBER | 1 | 09/2007 | 51459148068 | +core | Shop at ECS Tuning | |||
| 02 | Cover, dashboard, aluminium, left | GLACIER SILBER | 1 | 09/2007 | 51459148070 | +core | Shop at ECS Tuning | |||
| 03 | Aluminum decor strip, front left door | GLACIER SILBER | 1 | 09/2007 | 51419145411 | $116.47 | Shop at ECS Tuning | |||
| 03 | Aluminum decor strip, front right door | GLACIER SILBER | 1 | 09/2007 | 51419145412 | $116.47 | Shop at ECS Tuning | |||
| 04 | Decorative strip trim panel, rear left | GLACIER SILBER | 1 | 09/2007 | 51439145413 | $71.87 | Shop at ECS Tuning | |||
| 04 | Decorative strip trim panel, rear right | GLACIER SILBER | 1 | 09/2007 | 51439145414 | $71.87 | Shop at ECS Tuning | |||
| 07 | Cover, ashtray/tray alu glacier-silber | 1 | 09/2007 | 51169151108 | Shop at ECS Tuning | |||||
| 08 | Set of decor finishers | GLACIER SILBER | 1 | 09/2007 | 51169148505 | $205.90 | Shop at ECS Tuning | |||
| 09 | Cover, storing partition | GLACIER SILBER | 1 | 09/2007 | 51169148507 | Shop at ECS Tuning | ||||
| 10 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 19 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| For vehicles with Int. mouldings aluminium glacier-silver and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4MGA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 18 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2008 | 51167900376 | +core | Shop at ECS Tuning | |||
| For vehicles with Int. mouldings aluminium glacier-silver and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4MGA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 18 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2008 | 51167900376 | +core | Shop at ECS Tuning | |||
| For vehicles with Int. mouldings aluminium glacier-silver and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4MGA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 18 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2008 | 51167900376 | +core | Shop at ECS Tuning | |||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 19 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2007 | 51169149645 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
